62-72 CDP B&E DRUM,DODGE,PLYMOUTH,12.19"

BRAND NEW WILWOOD PREMIUM BIG BRAKE FORGED DYNALITE BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT (PART #140-9828) FOR BOTH FRONT WHEELS.

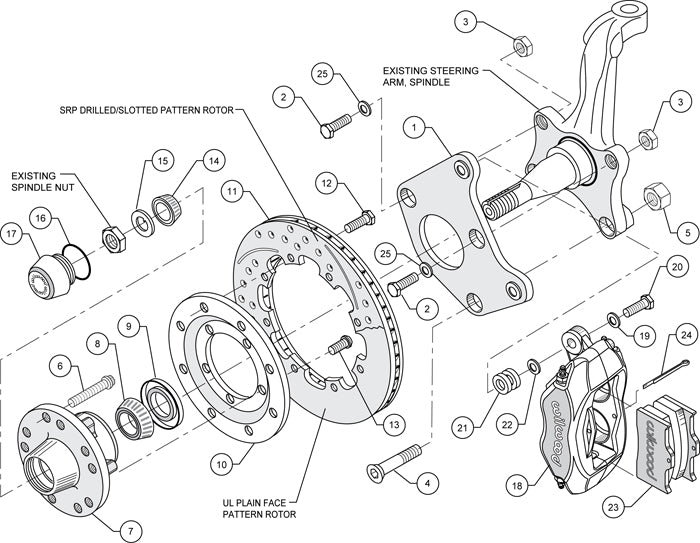

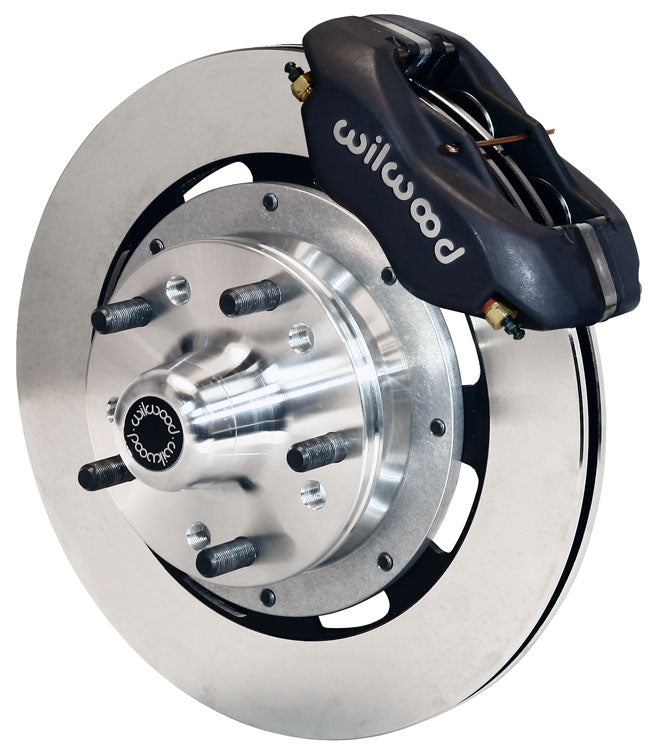

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES BLACK CALIPERS.

FITS:

• DODGE:
  • 1963-1964 DODGE 330 WITH DRUM BRAKE SPINDLES
  • 1963-1964 DODGE 440 WITH DRUM BRAKE SPINDLES
  • 1962-1972 DODGE B-BODY WITH DRUM BRAKE SPINDLES
  • 1970-1972 DODGE CHALLENGER WITH DRUM BRAKE SPINDLES
  • 1966-1972 DODGE CHARGER WITH DRUM BRAKE SPINDLES
  • 1965-1972 DODGE CORONET WITH DRUM BRAKE SPINDLES
  • 1970-1972 DODGE E-BODY WITH DRUM BRAKE SPINDLES
  • 1962-1964 DODGE POLARA WITH DRUM BRAKE SPINDLES
  • 1962-1964 DODGE SAVOY WITH DRUM BRAKE SPINDLES
  • 1968-1971 DODGE SUPER BEE WITH DRUM BRAKE SPINDLES
• PLYMOUTH:
  • 1970-1972 PLYMOUTH BARRACUDA WITH DRUM BRAKE SPINDLES
  • 1962-1972 PLYMOUTH B-BODY WITH DRUM BRAKE SPINDLES
  • 1962-1970 PLYMOUTH BELVEDERE WITH DRUM BRAKE SPINDLES
  • 1970-1972 PLYMOUTH E-BODY WITH DRUM BRAKE SPINDLES
  • 1962-1964 PLYMOUTH FURY WITH DRUM BRAKE SPINDLES
  • 1967-1972 PLYMOUTH GTX WITH DRUM BRAKE SPINDLES
  • 1968-1972 PLYMOUTH ROAD RUNNER WITH DRUM BRAKE SPINDLES
  • 1965-1972 PLYMOUTH SATELLITE WITH DRUM BRAKE SPINDLES
  • 1962-1964 PLYMOUTH SAVOY WITH DRUM BRAKE SPINDLES

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FDL BIG BRAKE FRONT HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. FORGED BILLET DYNALITE CALIPERS, 12.19" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES.

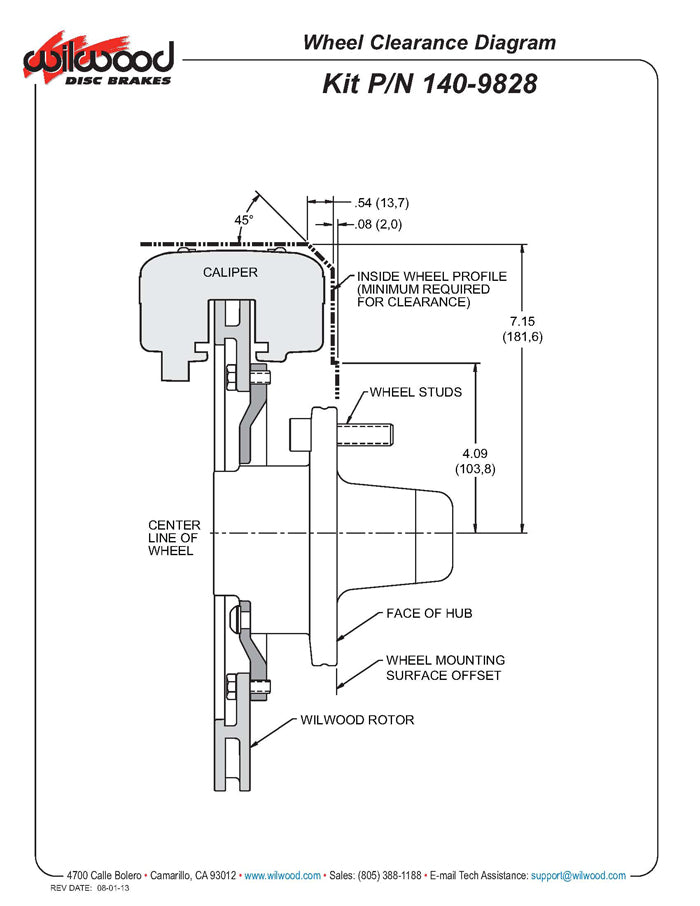

THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

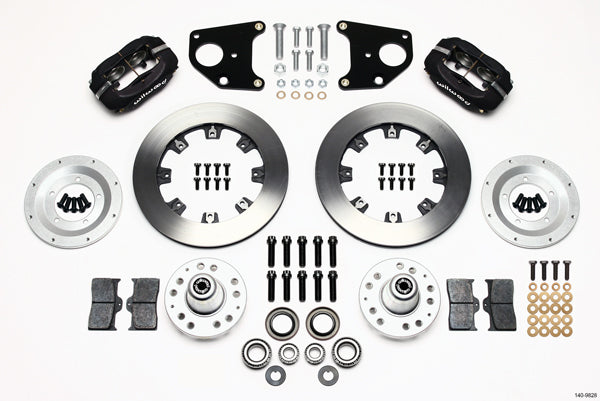

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• .810" THICK X 12.19" O.D. ROTORS
• FORGED DYNALITE CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HUBS
• BEARINGS
• SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 45 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
