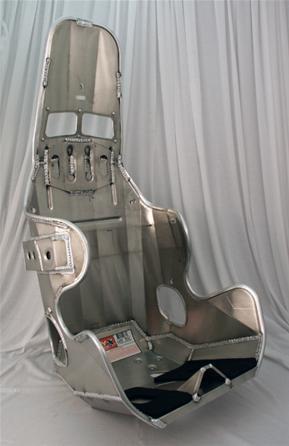

Kirkey Deluxe Sprint Seat

  • AVAILABLE IN 14", 14.5", 15", 16", 17", and 18"

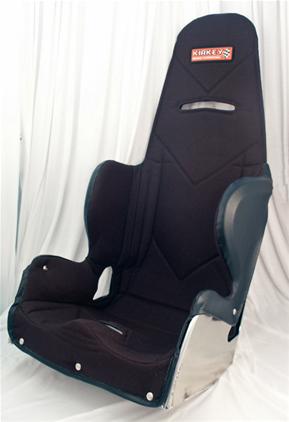

  • AVAILABLE IN BLACK CLOTH ONLY.
  • TIG WELDED .080" & .100" 5052 GRADE ALUMINUM
  • MIG WELDED INSIDE FOR ADDED STRENGTH.
  • OFFSET ALUMINUM EXTRUSION AROUND PERIMETER OF SEAT FOR ADDED RIGIDITY.
  • PROGRESSIVE RIB BEAD ADDS EXTRA STRENGTH.
  • UPHOLSTERY IS DOUBLE STITCHED AROUND BELT OPENINGS AND ALL STRESS POINTS.
  • MULTI-POSITION LAP BELT OPENINGS FOR EASY MOUNTING.
  • SUBMARINE BELT OPENING IS STANDARD.
  • MACHINE PLATE ADDED TO REINFORCE SHOULDER BELT OPENINGS.
  • SEAT BACK IS DOUBLE CROSS BROKE FOR ADDED STRENGTH AND COMFORT.
  • HOW TO MEASURE FOR A SEAT: IN THE SEATED POSITION, USING A STRAIGHT EDGE, MEASURE ACROSS THE HIPS AT THE WIDEST POINT. THIS MEASUREMENT IS THE WIDTH OF SEAT THAT YOU NEED

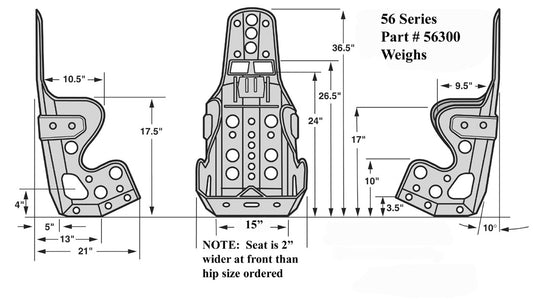

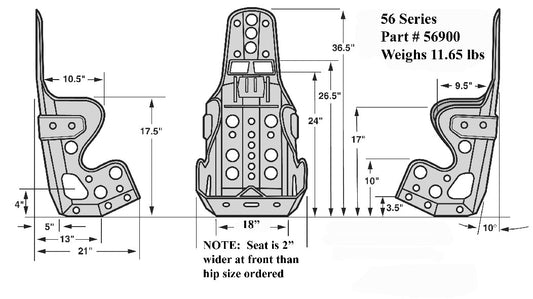

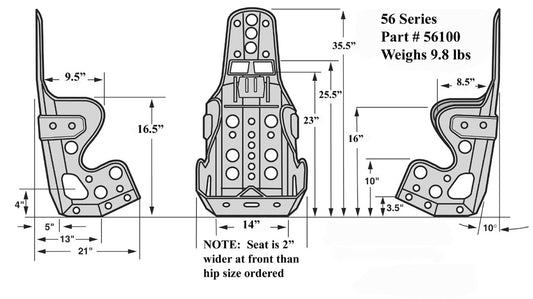

  • YOU CAN SEE THE SHOP DRAWING OF EACH SEAT BY CLICKING ON THE INDIVIDUAL PART NUMBERS
