MOPAR/DANA 60 DRAG KIT,2.36",REAR,11.44

BRAND NEW WILWOOD DRAG RACING REAR FORGED DYNALITE, BOLT-ON 11.44" DISC BRAKE KIT (PART #140-5255-B) FOR BOTH REAR WHEELS.

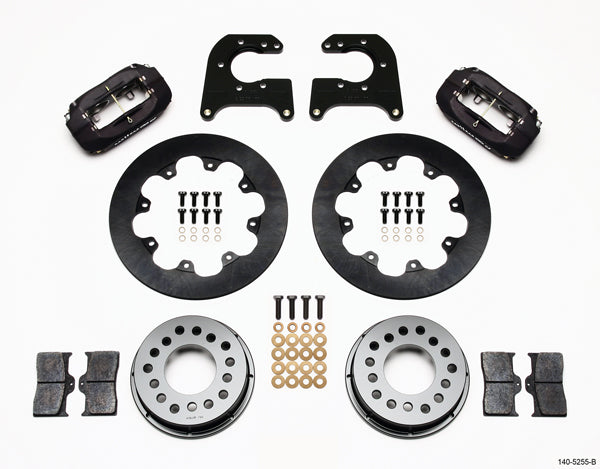

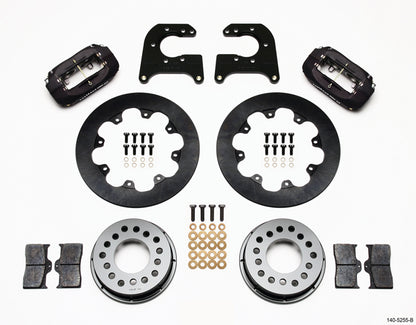

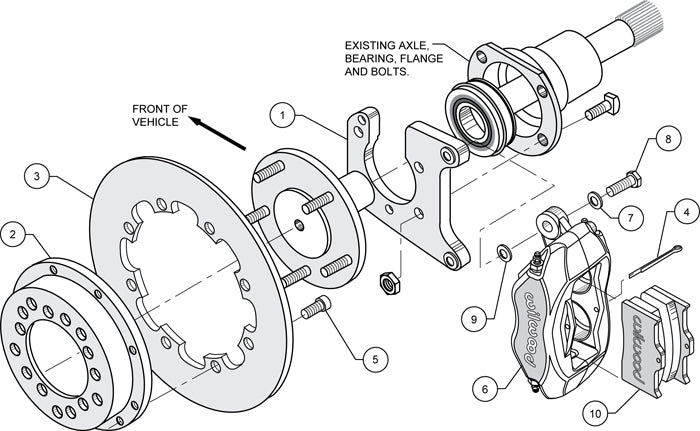

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FITS:

• MOPAR 8 3/4" & DANA 60 REAR ENDS WITH A 5 BOLT MOUNTING PATTERN ON THE AXLE FLANGE AND WITH A 2.36" FLANGE OFFSET (SEE DIAGRAMS BELOW)
• THIS KIT REQUIRES THE USE OF SNAP RING STYLE GREEN BEARINGS (MO400)

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FDL REAR DRAG KITS ARE TRUE BOLT-ON KITS FOR POPULAR MUSCLE CAR REAR AXLES AND AFTERMARKET REARS BUILT WITH CUSTOM AXLE ENDS. DRAG KITS ARE PURPOSE BUILT FOR SPORTSMAN CATEGORY DOOR CARS AND OTHERS WITH FULL FUNCTIONAL FOUR-WHEEL DISC BRAKES. BASED ON THE SPECIFIC STYLE OF HOUSING END AND AXLE OFFSET, MOUNTING KITS SECURELY INSTALL THE 4-PISTON FORGED DYNALITE CALIPER OVER 3/8" PLATE STEEL ROTORS THAT ARE MOUNTED TO THE AXLE WITH AN ALUMINUM HAT.

THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• .350" THICK X 11.44" O.D. ROTORS
• FORGED DYNALITE CALIPERS
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 27 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
