BIG FORD NEW KIT,2.5,REAR,12.19",POLISHED

BIG FORD NEW KIT,2.5,REAR,12.19",POLISHED

SKU:WIL 140-2118-P

Regular price $1,049.99
Regular price Sale price $1,049.99
View full details

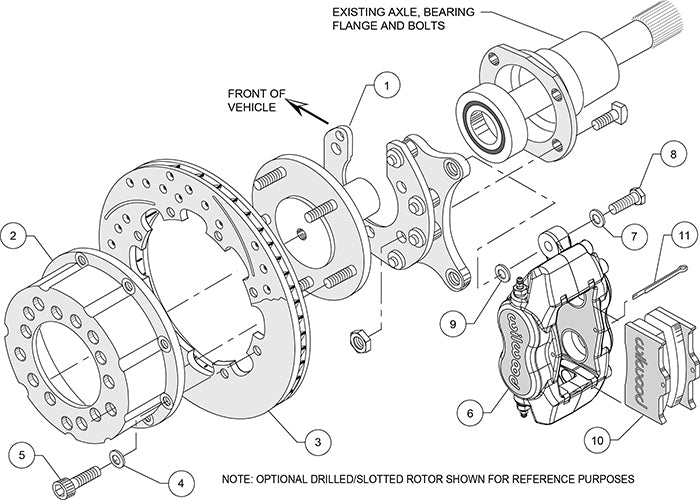

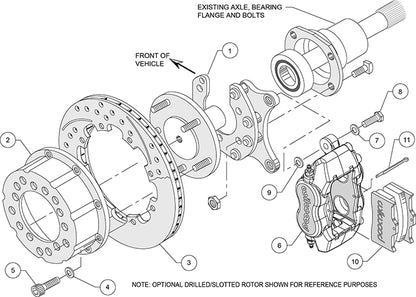

ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

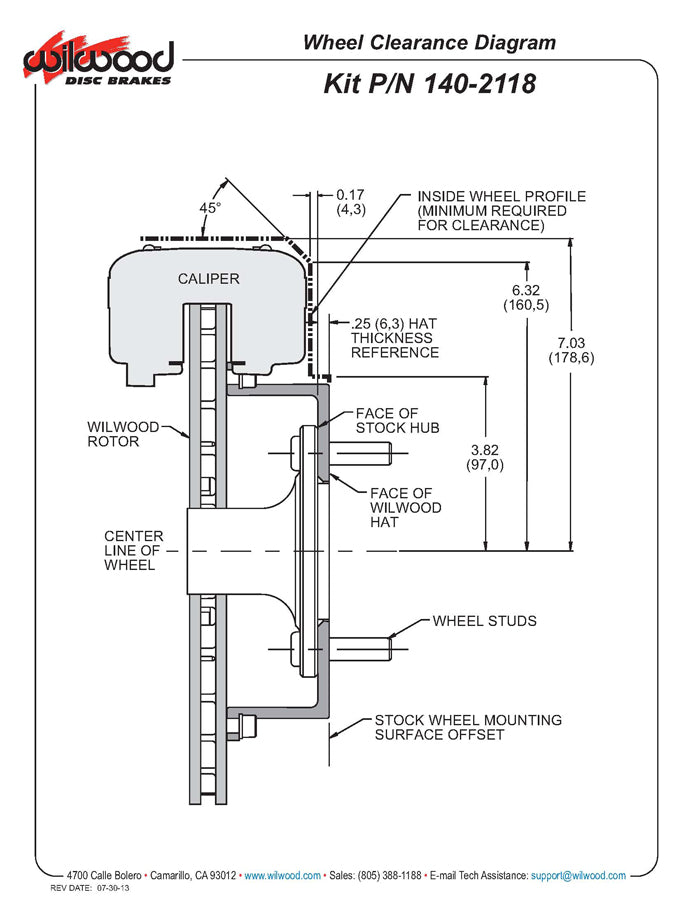

  • WILWOOD BOLT-ON REAR DISC BRAKE KIT FOR BIG BEARING FORD (NEW STYLE) REAR ENDS WITH A 3.562" x 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET (SEE DIAGRAMS BELOW)

  • THIS SET CONTAINS POLISHED CALIPERS AND ROTORS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • DL PRO-SERIES REAR DISC BRAKE KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES ON APPLICATIONS WHERE INDIVIDUAL WHEEL PARKING BRAKE ASSEMBLIES ARE NOT REQUIRED. FORGED BILLET DYNALITE FOUR PISTON CALIPERS, TWO-PIECE HAT AND ROTOR ASSEMBLIES, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF OFF-ROAD, COMPETITION, AND OTHER CUSTOMIZED APPLICATIONS. FDL CALIPERS CAN BE OPTIONED WITH A FULL RANGE OF FINISHES TO REFLECT PERSONALIZED STYLE. ROTOR CHOICES PROVIDE OPTIONS FOR HIGH-TECH SHOW WINNING STYLE, OR HEAVY WEIGHT DURABILITY AND COOLING CAPACITY FOR HIGH HEAT COMPETITION.
  • THESE BIG BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

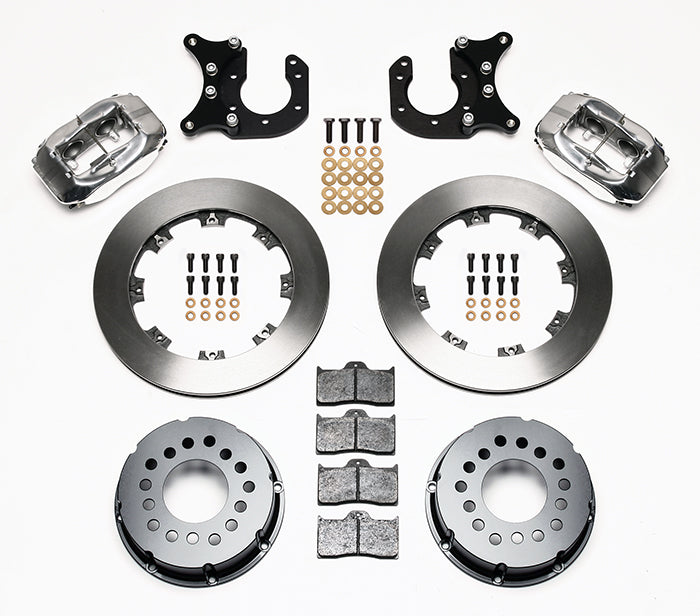

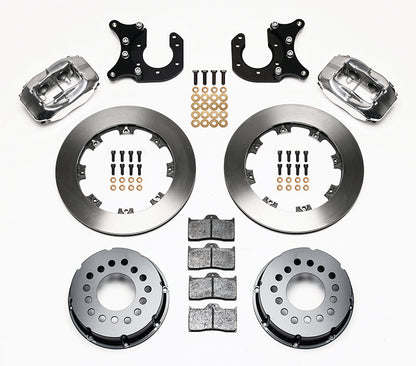

  • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:
  • .810" THICK X 12.19" O.D. ROTORS
  • FORGED DYNALITE CALIPERS - POLISHED
  • CALIPER MOUNTING BRACKETS
  • BP-10 SMART COMPOUND BRAKE PADS
  • BRAKE HATS
  • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE


  • Click Picture
    For Larger View




    Click Picture
    For Larger View

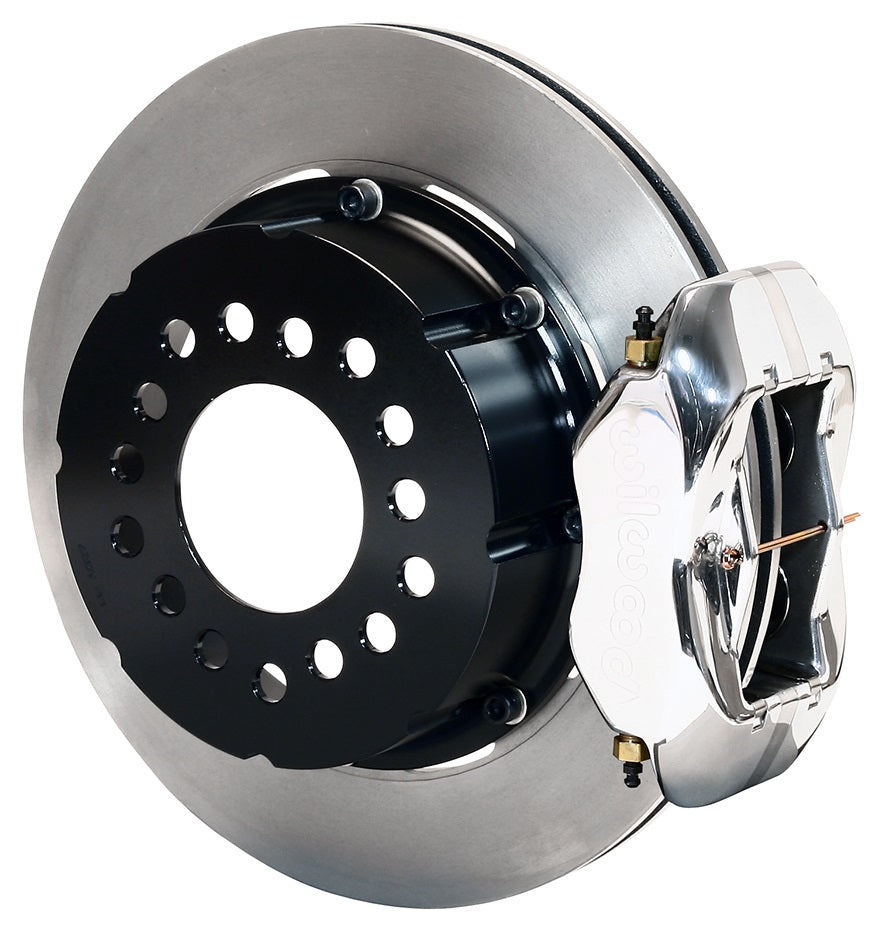

  • ONLY ONE SIDE SHOWN
