BIG FORD NEW KIT,2.50",EPB,12",RED

BRAND NEW WILWOOD BOLT-ON 12" DISC BRAKE KIT WITH DYNALITE CALIPERS & ELECTRONIC PARKING BRAKE (PART #140-15843-R) FOR BOTH REAR WHEELS.

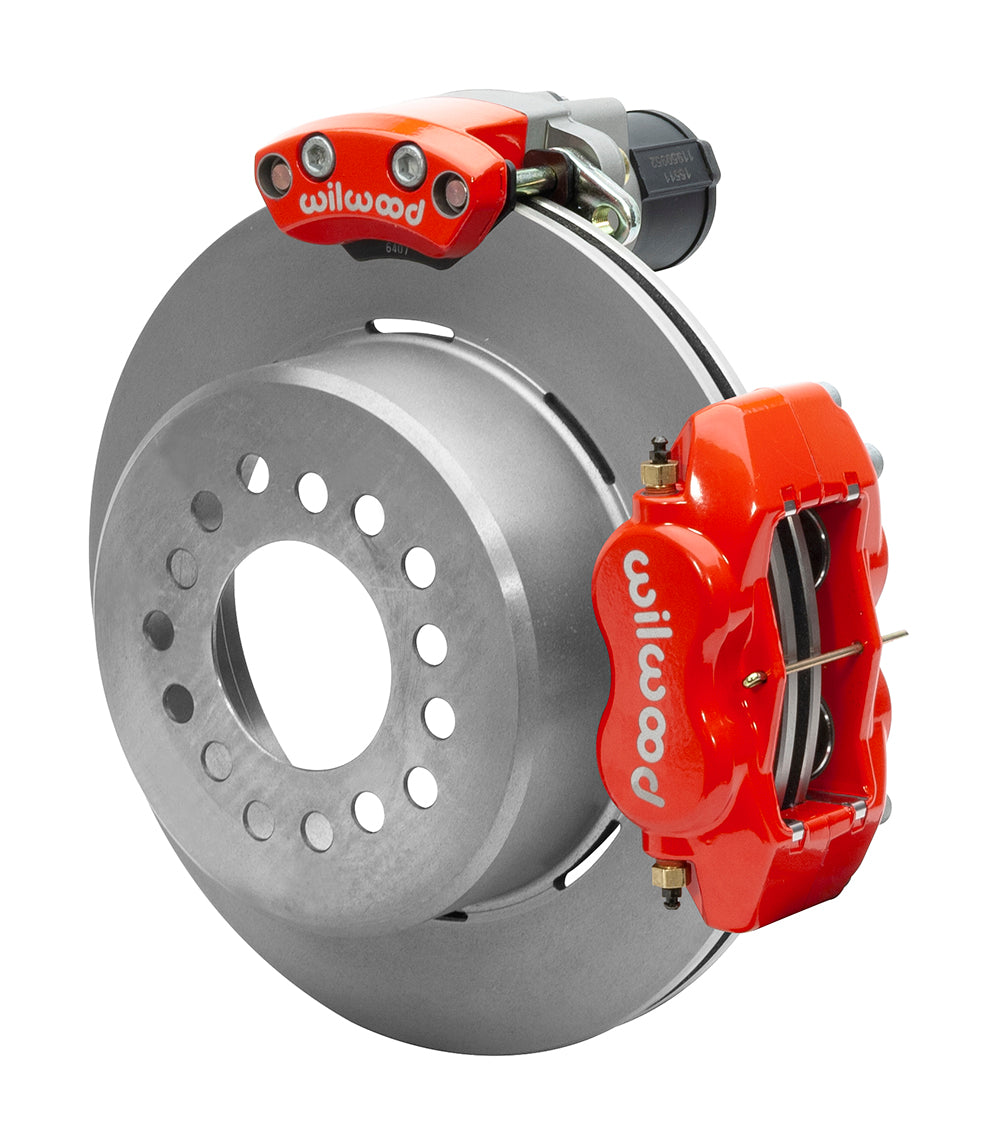

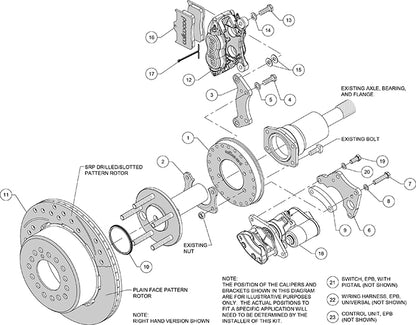

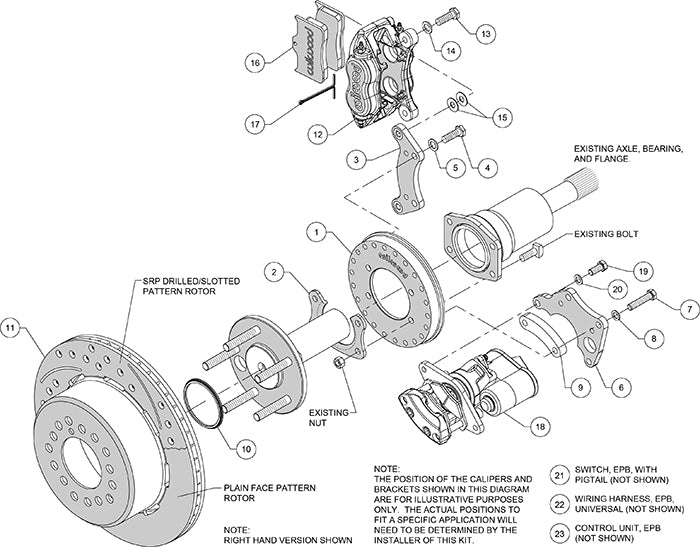

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED RED CALIPERS.

FITS:

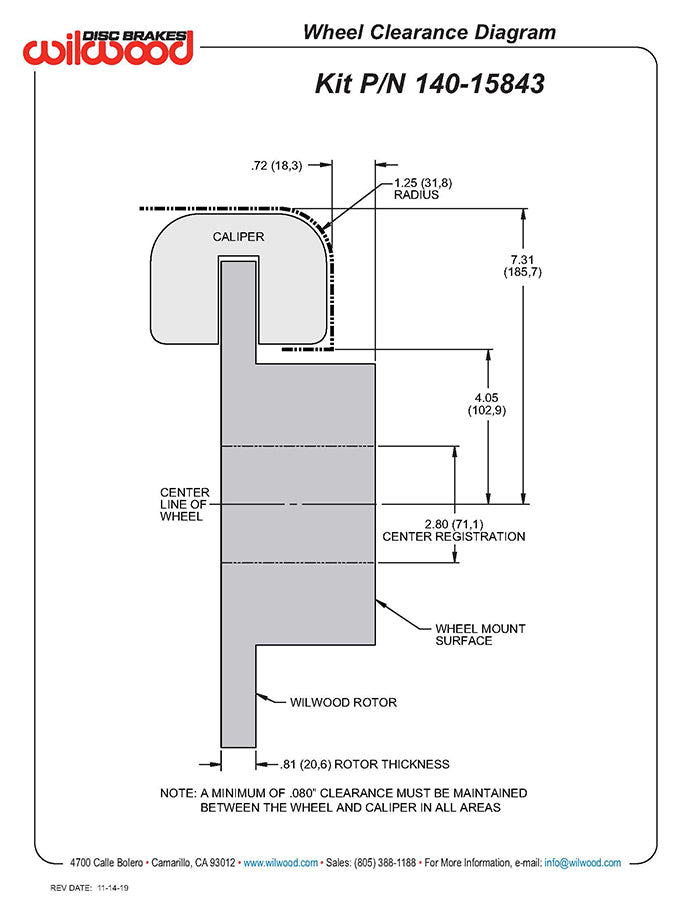

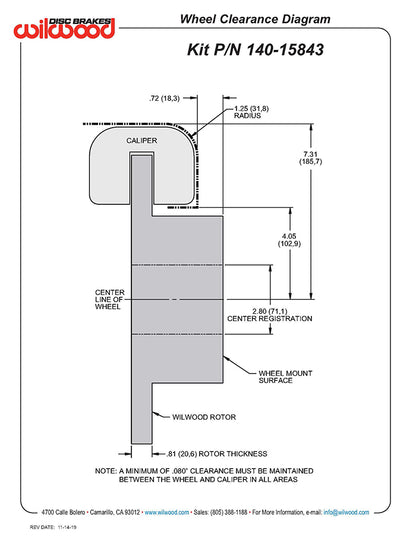

• BIG BEARING FORD (NEW STYLE) REAR ENDS WITH A 3.562" X 2.00" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET (SEE DIAGRAMS)

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THIS GROUP OF FDL PRO-SERIES REAR ELECTRONIC PARKING BRAKE KITS PROVIDES A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FORGED BILLET DYNALITE FOUR PISTON CALIPERS, 12.19" ONE-PIECE ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE UNIQUE ELECTRONIC PARKING BRAKE CALIPER PROVIDES A STATIC HIGH TORQUE STATIC HOLDING POWER FOR PARKING WITHOUT MECHANICAL CABLING. SUPPLIED WITH CONTROL UNIT AND HARNESS ASSEMBLY, IT SIMPLIFIES INSTALLATION AND USE. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS ENABLE THE BUILDER TO PERSONALIZE THE STYLE AND OPTIMIZE BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

THESE BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

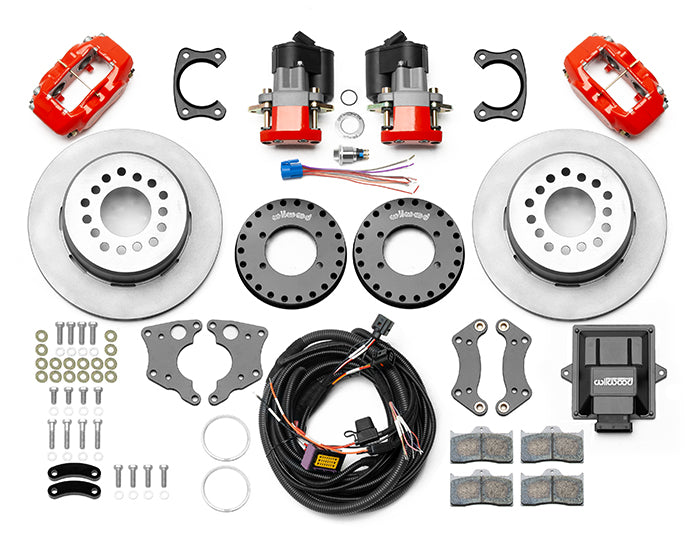

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• .810" THICK X 12.19" O.D. ROTORS WITH HATS
• FORGED DYNALITE CALIPERS - RED
• ELECTRONIC PARKING BRAKE ASSEMBLIES WITH CONTROL UNIT AND HARNESS ASSEMBLY
• BP-10 SMART COMPOUND BRAKE PADS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 62 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
