CPP TRI-5 KIT,2" DROP,FRONT,FDLI,12.19" DRILLED ROTORS,BLACK

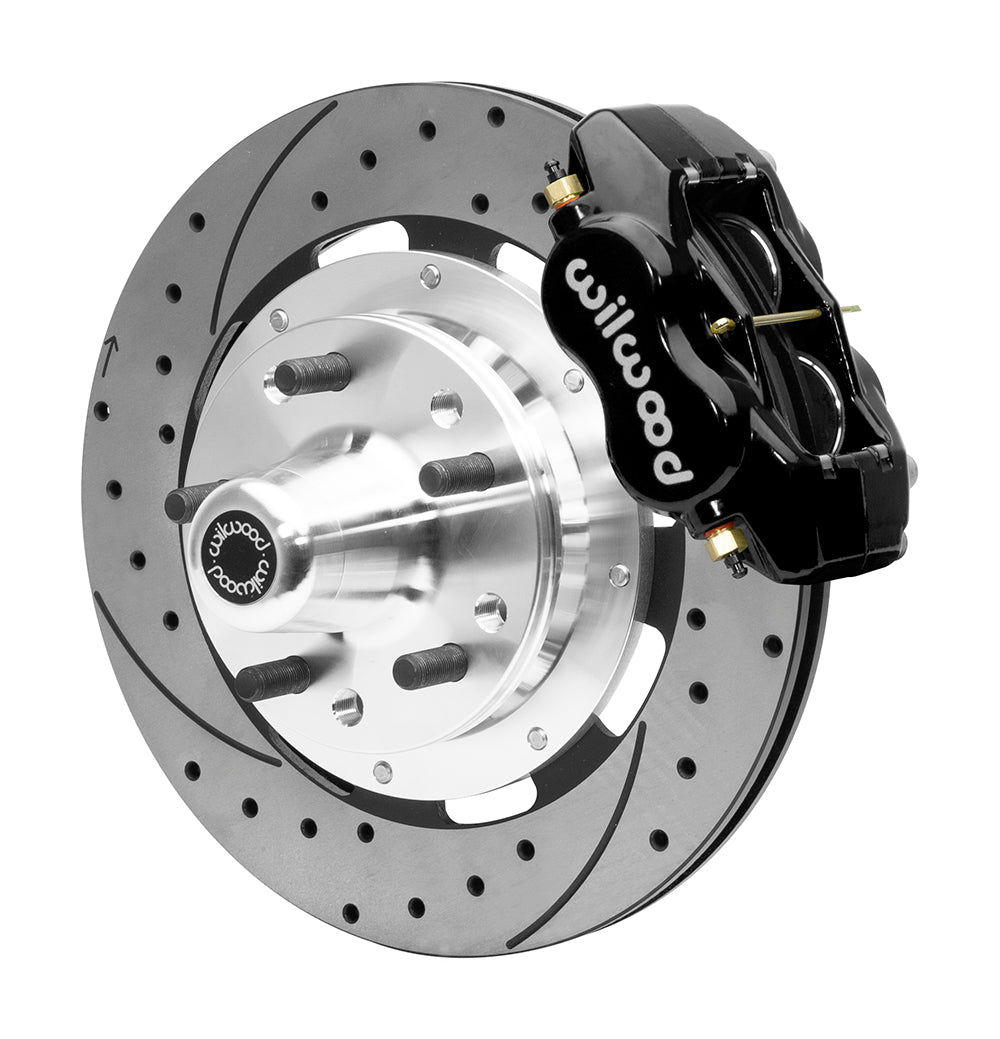

BRAND NEW FORGED DYNALITE PRO SERIES BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT (PART #140-15548-D) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FDL BIG BRAKE FRONT HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. FORGED BILLET DYNALITE CALIPERS, 12.19" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET / STRIP MACHINES. A FULL RANGE OF OPTIONS FOR CALIPER FINISH AND ROTOR DESIGN PROVIDE CUSTOM BUILDERS WITH THE ABILITY TO PERSONALIZE THE STYLE AND PERFORMANCE REQUIREMENTS OF THE MILDEST TO THE WILDEST MACHINES.

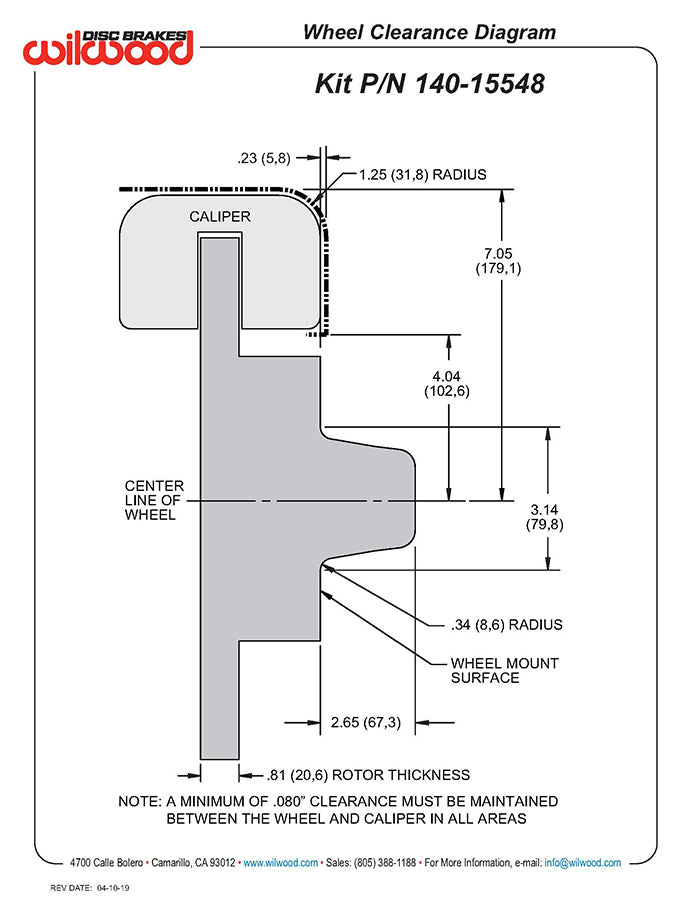

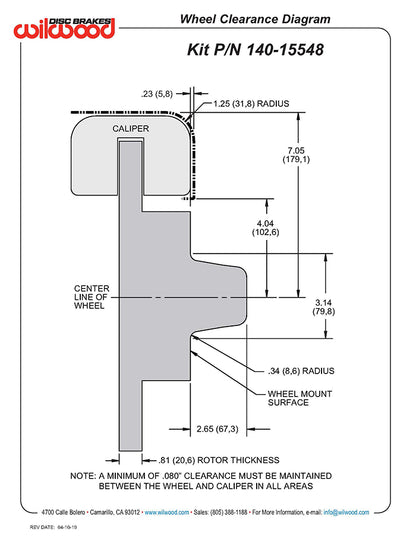

NOTE: THESE BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

COMPATIBLE WITH:

• CHEVROLET:
• 1955-1957 BEL AIR, NOMAD, ONE-FIFTY SERIES, TWO-TEN SERIES, SEDAN DELIVERY, WITH CPP 2" DROP SPINDLE CP30102
• 1957 DEL RAY, WITH CPP 2" DROP SPINDLE CP30102

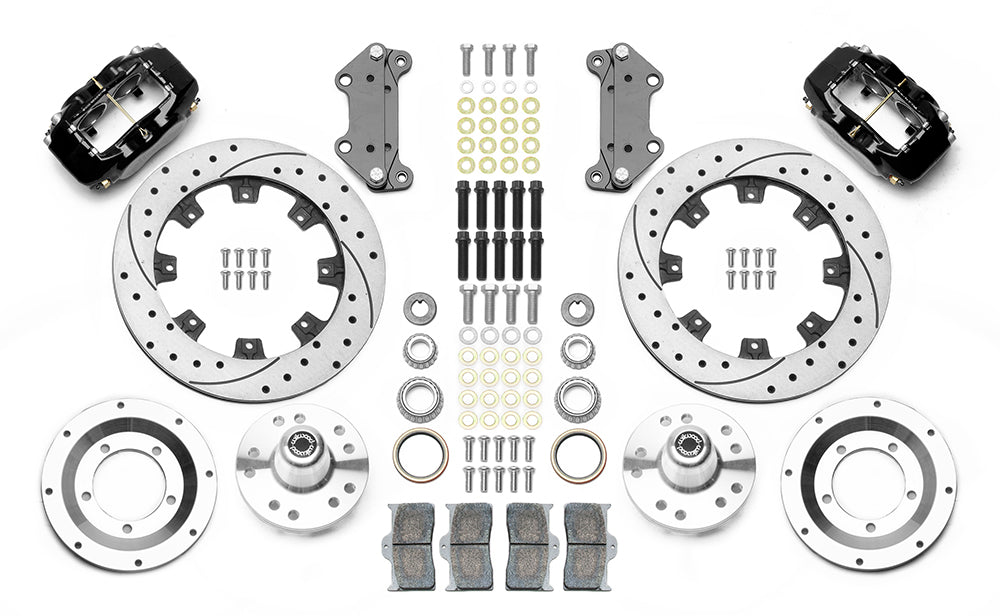

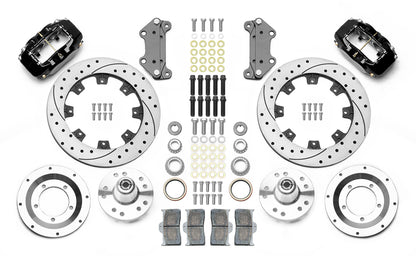

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 0.81" THICK X 12.19" O.D. ROTORS
• FORGED DYNALITE 4 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HUBS, BEARINGS, SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 45 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
