CPP TRI-5 KIT,2" DROP,FRONT,FDL-M,11.50",R

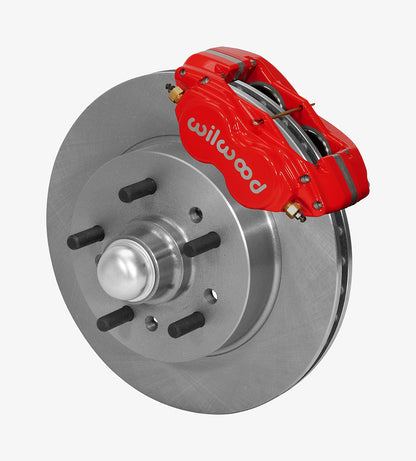

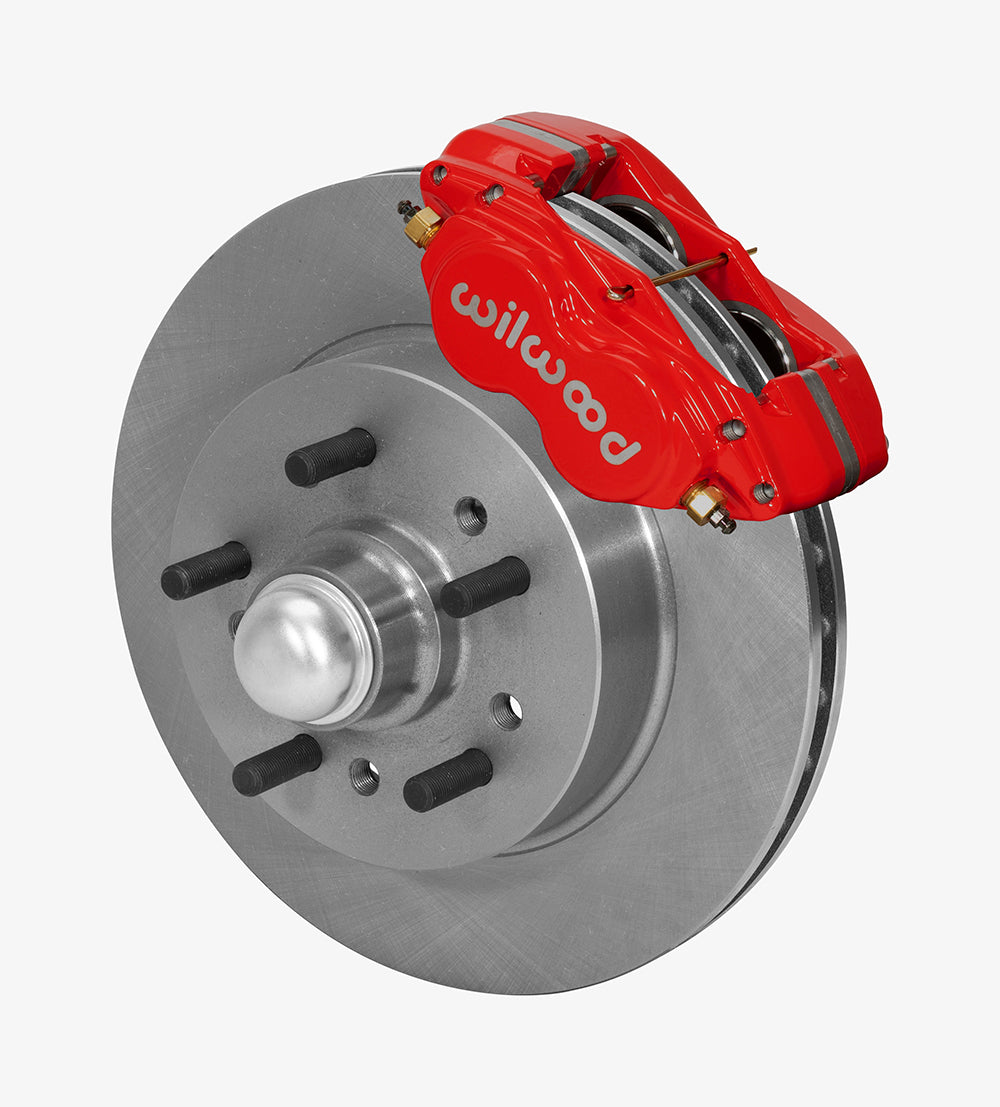

BRAND NEW WILWOOD CLASSIC SERIES BOLT-ON FRONT 11.50" DISC BRAKE KIT (PART #140-15318-R) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS CLASSIC SERIES FRONT DISC BRAKE KITS FOR CLASSIC PERFORMANCE PRODUCTS GM TRI-5, 55-57 FULL SIZE DROP SPINDLE OFFER EASY AND EFFECTIVE DISC BRAKE UPGRADE SOLUTIONS FOR THESE AFTERMARKET SPINDLES. THESE KITS FEATURE THE FDL-M FOUR PISTON FORGED ALUMINUM CALIPER AND 11.50" DIAMETER X 1.00" THICK ONE-PIECE ROTORS. THE FDL-M CALIPER IS A MODIFIED VERSION OF THE TIME-TESTED FORGED DYNALITE CALIPER, AND PROVIDES THE GREATEST AMOUNT OF WHEEL CLEARANCE OF ANY FOUR PISTON CALIPER IN ITS SIZE CLASS. THE OEM STYLE ONE-PIECE CAST IRON ROTORS WITH INTEGRATED HUBS SIMPLIFY INSTALLATION WHILE PROVIDING SUPERB DIMENSIONAL STABILITY AND WEAR RESISTANCE. THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND CLEAR MOST OEM 15" DISC BRAKE WHEELS. CLASSIC SERIES FDL-M KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS, AND COME COMPLETE WITH CALIPERS, ROTORS, BRACKETS, HARDWARE AND DETAILED INSTALLATION INSTRUCTIONS. KIT REQUIRES PURCHASE OF ADDITIONAL BRAKE LINE KIT SHOWN BELOW.

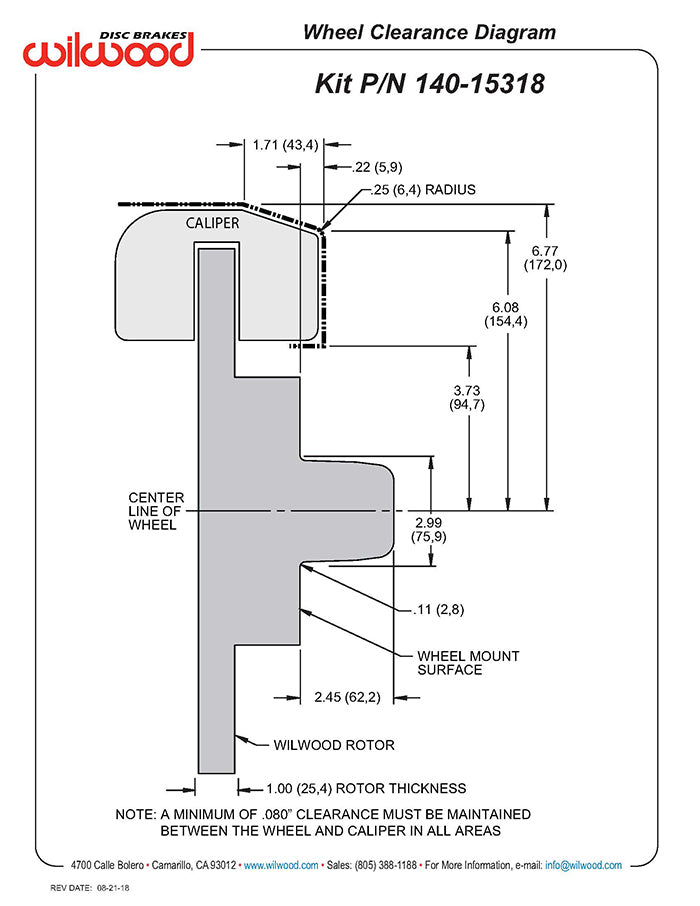

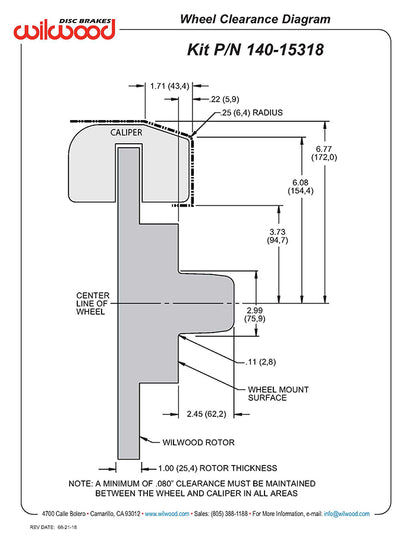

NOTE: THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

COMPATIBLE WITH:

• CHEVROLET:
• 1955-1957 BEL AIR, NOMAD, ONE-FIFTY SERIES, TWO-TEN SERIES, SEDAN DELIVERY, WITH CPP 2" DROP SPINDLE CP30102
• 1957 DEL RAY, WITH CPP 2" DROP SPINDLE CP30102

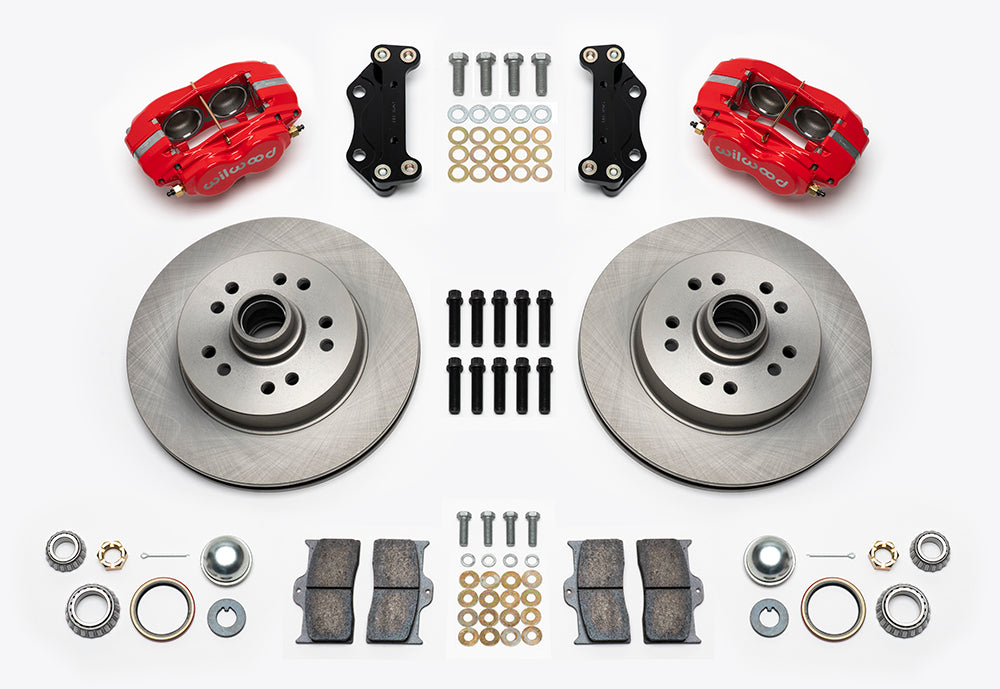

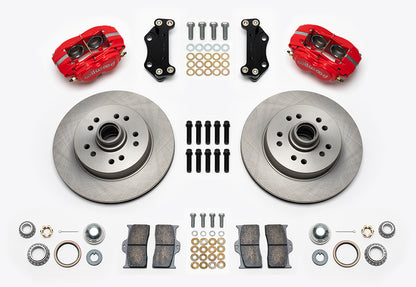

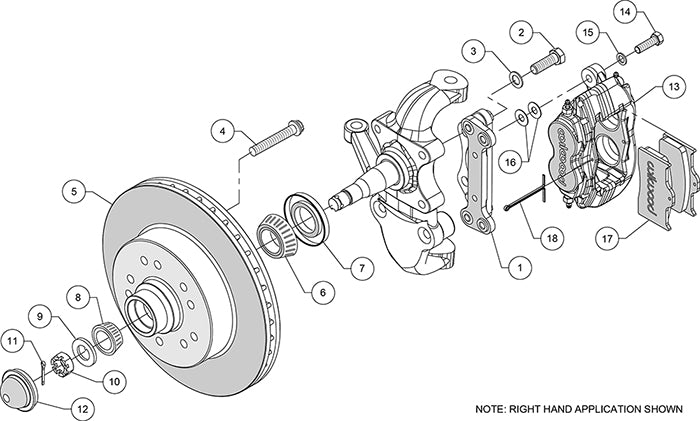

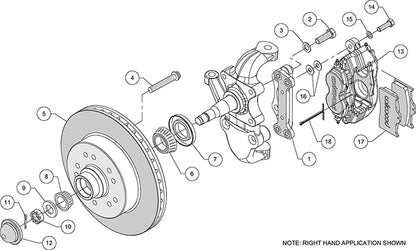

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.00" THICK X 11.50" O.D. 1-PIECE HUBS AND ROTORS
• FORGED DYNALITE FDL-M 4 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BEARINGS
• SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 63 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
