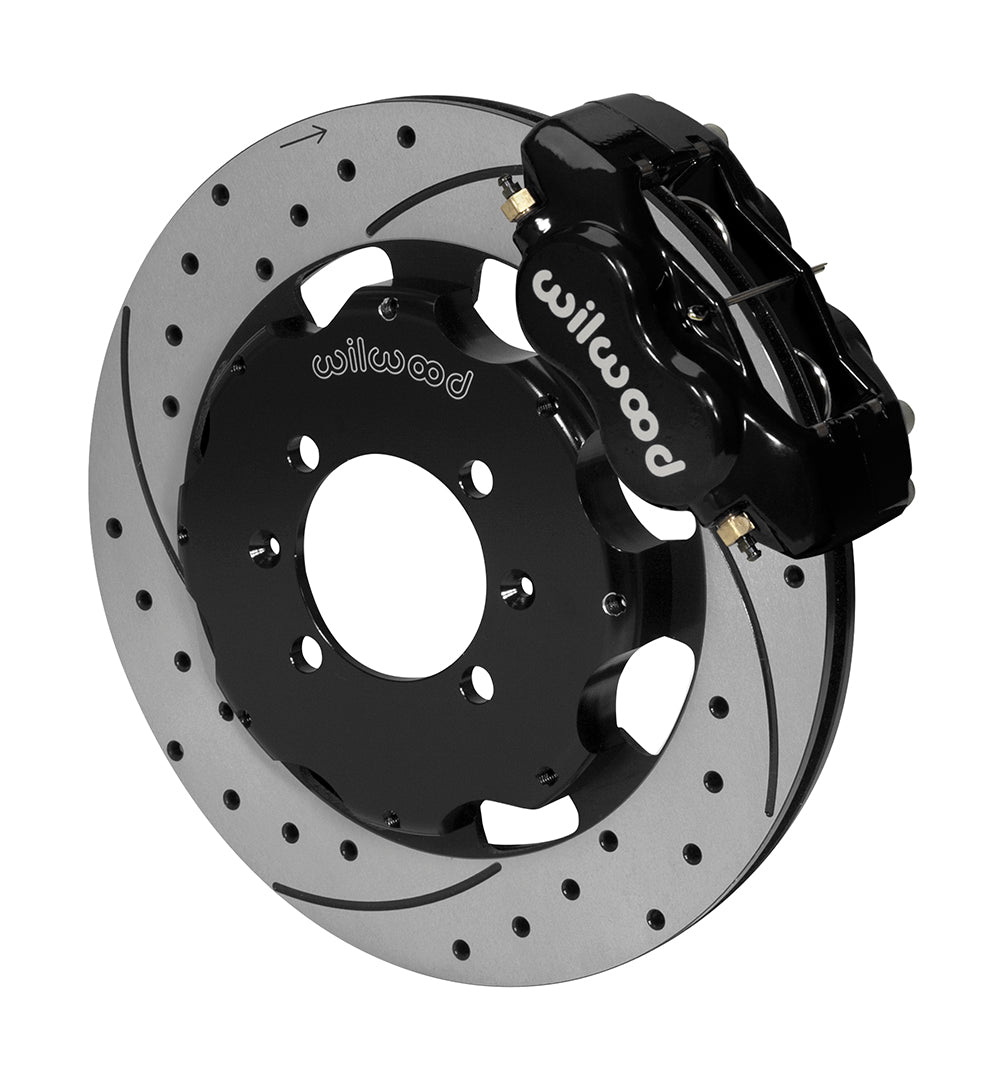

16-23 MAZDA MIATA,FRONT,12.19" DRILLED ROTORS,BLACK CALIPERS,WITH LINES

BRAND NEW WILWOOD PREMIUM BIG BRAKE FORGED DYNALITE BOLT-ON FRONT HAT & 12.19" DISC BRAKE KIT (PART #140-14233-D) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FORGED DYNALITE PROSERIES KITS PROVIDE HIGH PERFORMANCE, BIG BRAKE STOPPING POWER BY COMBINING MODERN BRAKE TECHNOLOGY WITH HIGH-TECH STYLING TO UPDATE THE BRAKES ON YOUR COMPACT SPORT VEHICLE. THE OE CALIPERS AND ROTORS ARE REPLACED WITH FORGED ALUMINUM, FOUR-PISTON CALIPERS MOUNTED OVER LARGER DIAMETER, CERTIFIED ALLOY 30-VANE VENTED IRON ROTORS. THE NEW TWO-PIECE ROTOR ASSEMBLIES PROVIDE WEIGHT-SAVING FORGED ALUMINUM MOUNTING HATS. THE CALIPERS FEATURE AN INCREASE IN EFFECTIVE PISTON VOLUME TO DELIVER HIGHER CLAMPING POWER WITH LESS PEDAL EFFORT THAN STOCK. THE THICKER, VENTED ROTOR DESIGN ADDS COOLING EFFICIENCY AND DURABILITY TO EXTEND SERVICE LIFE. BP-SERIES SMARTPADS ADD HIGH-RESPONSE WITH INCREASED RESISTANCE TO FADE AND LONGER WEAR OVER TYPICAL OE REPLACEMENT PADS. OPTIONS FOR CALIPER COLORS AND ROTOR STYLES ARE AVAILABLE TO PERSONALIZE THE LOOK ON ANY CAR.

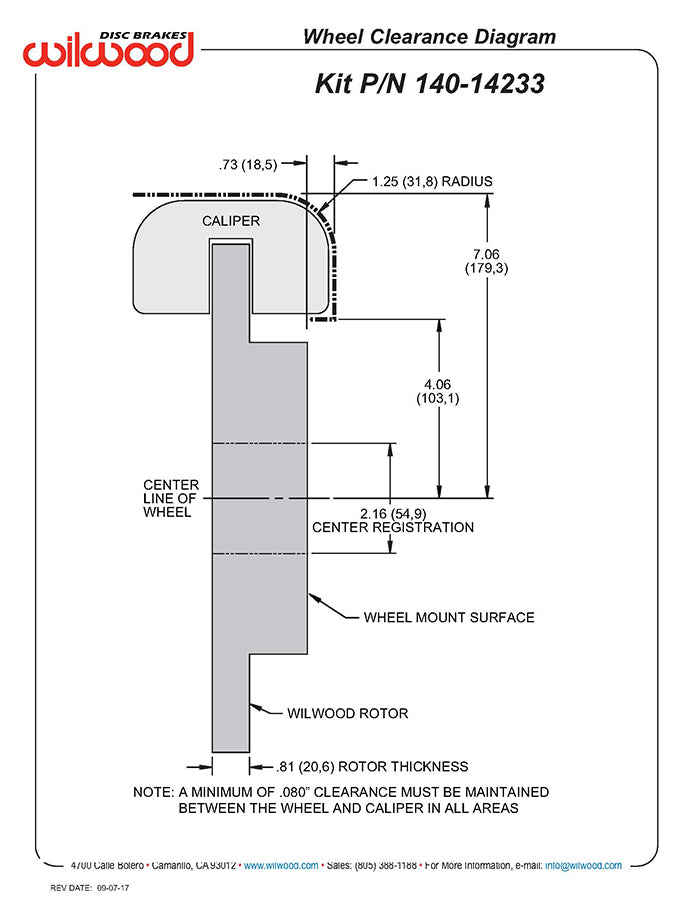

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

COMPATIBLE WITH:

• MAZDA:
• 2016-2020 MX-5 MIATA CLUB, GRAND TOURING, SPORT
• 2018-2019 MX-5 MIATA GS, GT, RF GT
• 2018-2020 MX-5 MIATA RF CLUB, RF GRAND TOURING
• 2017 MX-5 MIATA RF
• 2018 MX-5 MIATA GX, RF GS
• 2019 MX-5 MIATA GS-P, RF GS-P
• FIAT:
• 2017 124 SPIDER

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, .810" THICK X 12.19" O.D. ROTORS
• FORGED DYNALITE 4 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• BRAKE LINES WITH FITTINGS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 37 LBS.

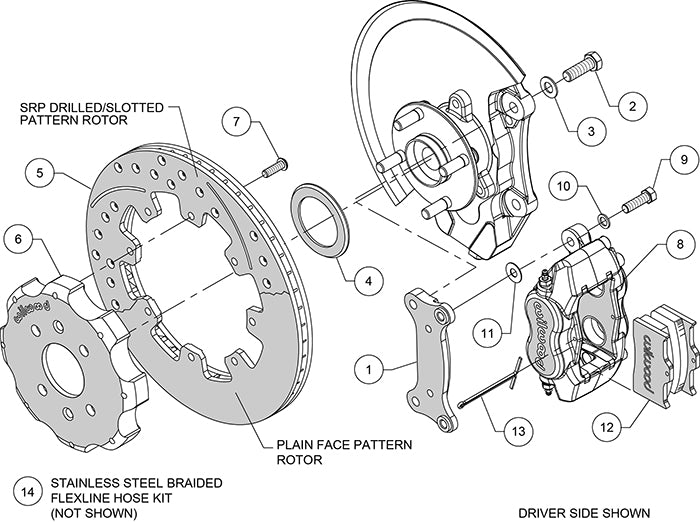

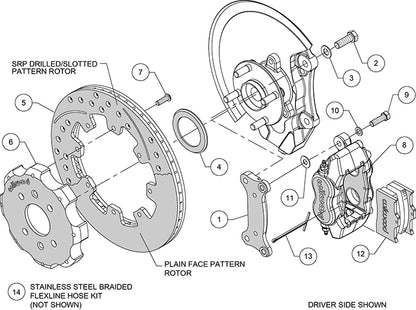

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
