11-19 GM 2500HD,3500HD,TRUCKS,SUBURBAN,TX6R FRONT,15",BLACK

11-19 GM 2500HD,3500HD,TRUCKS,SUBURBAN,TX6R FRONT,15",BLACK

SKU:WIL 140-13873

Regular price $2,879.99
Regular price Sale price $2,879.99
View full details

BRAND NEW WILWOOD TX6R BIG BRAKE 15" DISC BRAKE KIT (PART #140-13873) FOR BOTH FRONT WHEELS.

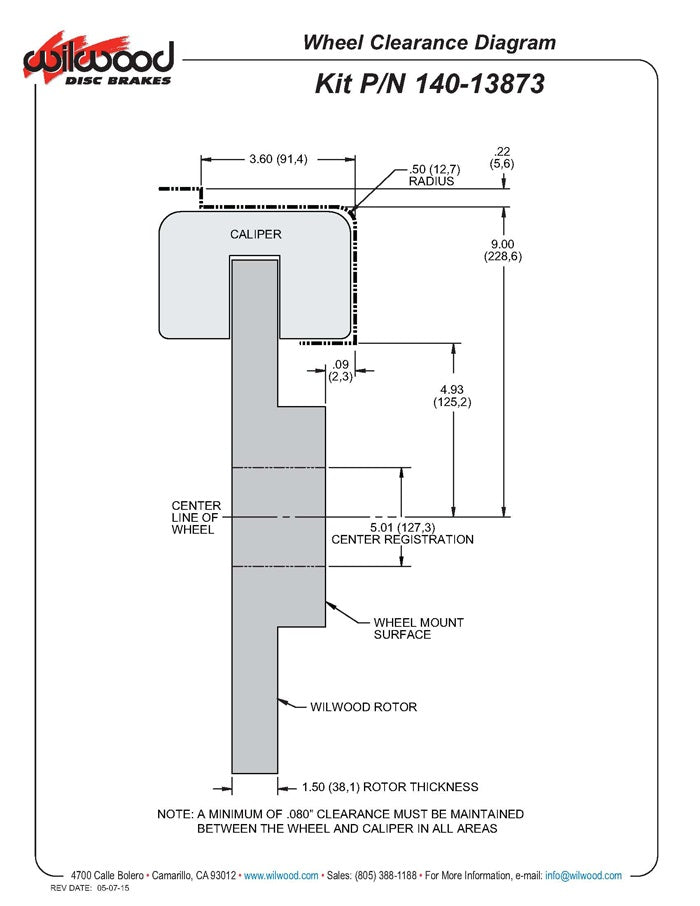

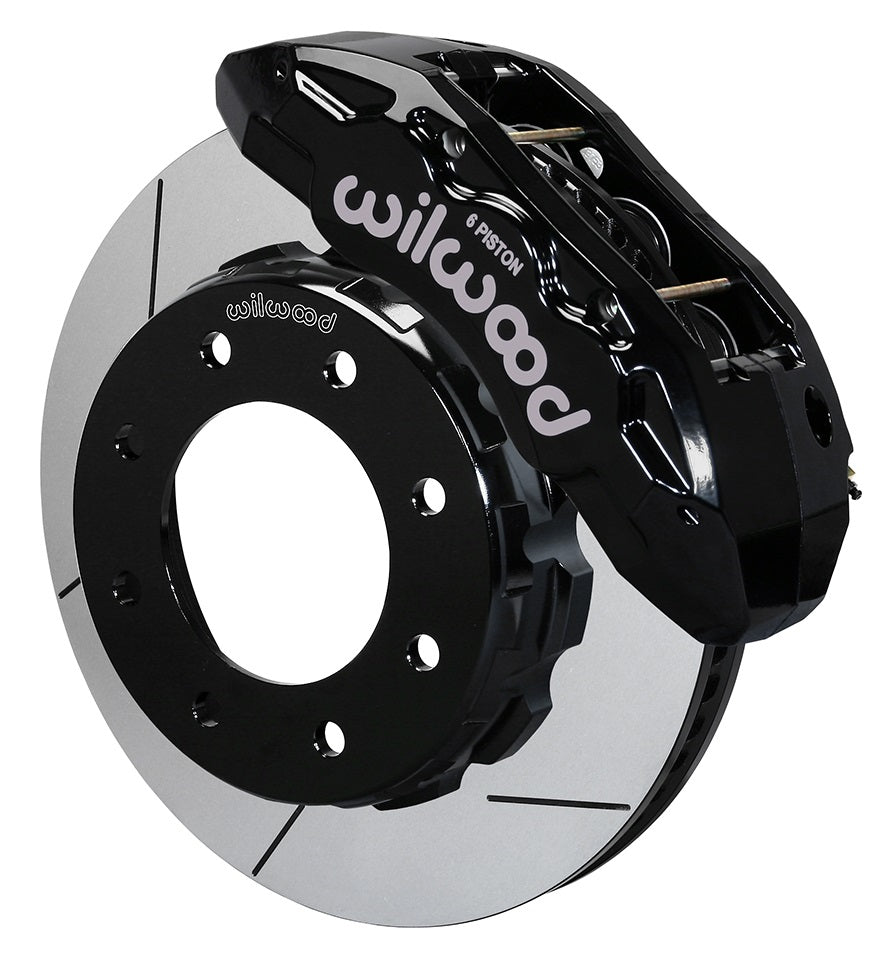

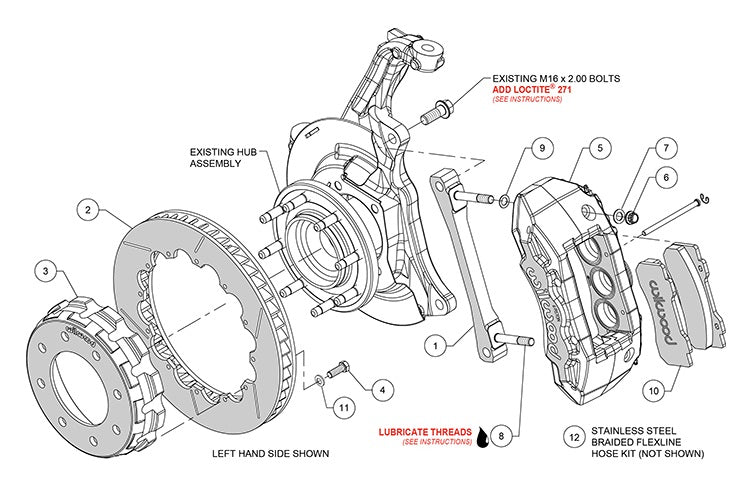

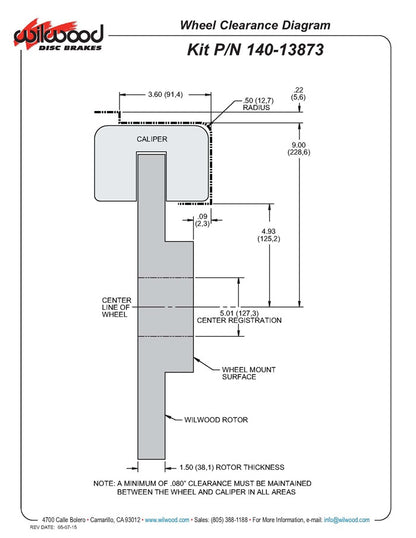

ONLY ONE SIDE PICTURED. SEE THE LIST & DIAGRAM BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES BLACK CALIPERS.

FITS:

  • CHEVROLET:
    • 2011-2019 SILVERADO 2500 HD
    • 2011-2019 SILVERADO 3500 HD (SINGLE REAR WHEELS)
    • 2011-2019 SILVERADO 3500 HD (DUAL REAR WHEELS)
    • 2016 SUBURBAN 3500 HD (LS & LT)
  • GMC:
    • 2011-2019 SIERRA 2500 HD
    • 2011-2019 SIERRA 3500 HD (SINGLE REAR WHEELS)
    • 2011-2019 SIERRA 3500 HD (DUAL REAR WHEELS)

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS TACTICAL EXTREME TX6R BIG BRAKE KITS ARE ULTIMATE IN BRAKING PERFORMANCE FOR TRUCK, SUV AND ARMORED VEHICLES. USING TX6R RADIAL MOUNT SIX-PISTON CALIPERS AND MASSIVE 15.00" GT-60 DIRECTIONAL VANE SPEC-37 ALLOY ROTORS, THESE KITS DELIVER CONSISTENT STOPPING POWER AND EXTREME DUTY DURABILITY UNDER SUSTAINED HIGH HEAT WITH THIS READY TO BOLT-ON KIT. THE CALIPERS ARE VOLUME MATCHED FOR COMPATIBILITY WITH ORIGINAL EQUIPMENT POWER BRAKE SYSTEM OUTPUT. KITS INCLUDE RADIAL MOUNT CALIPER BRACKETS, AND ALL THE NECESSARY HARDWARE TO COMPLETE THE INSTALLATION. BRAIDED STAINLESS STEEL FLEX LINES WILL NEED TO BE PURCHASED FOR SOME APPLICATIONS.

THESE BIG BRAKE KITS REQUIRE AT LEAST 20" DIAMETER WHEELS.

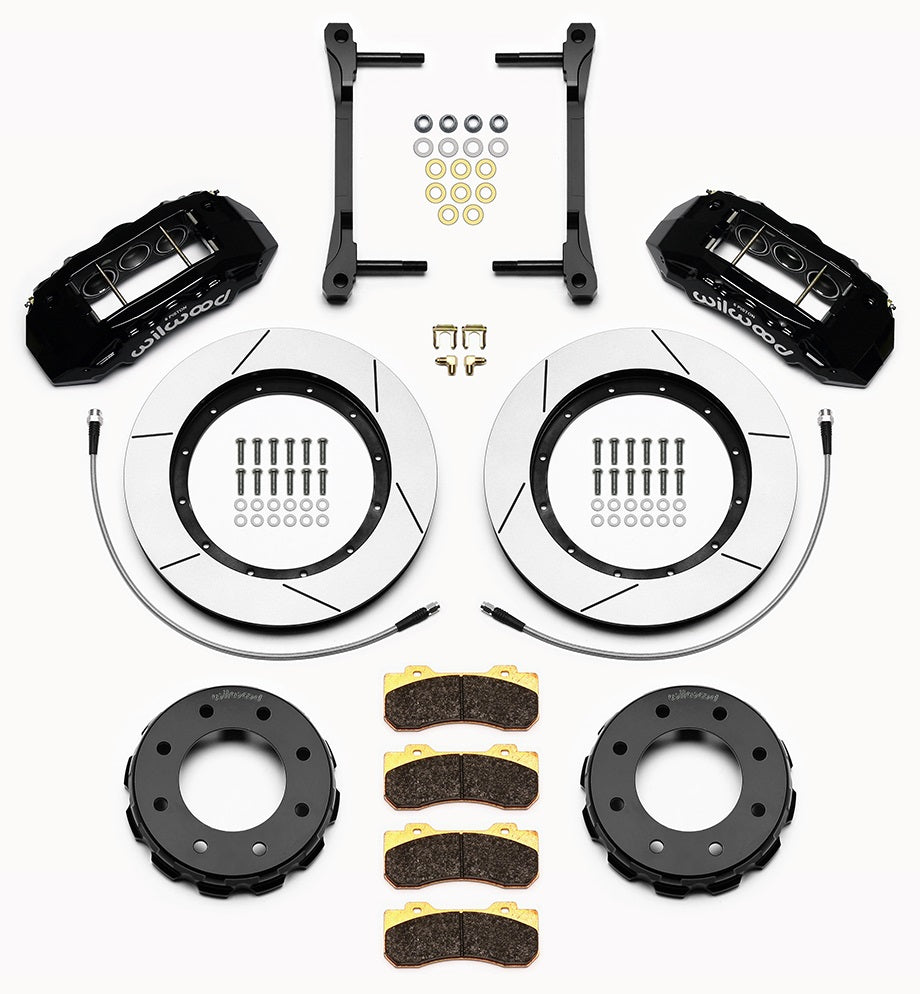

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

  • 1.50" THICK X 15.00" O.D. ROTOR
  • TX6R 6 PISTON CALIPERS - BLACK
  • CALIPER MOUNTING BRACKETS
  • BRAKE HATS
  • BP-20 SMART COMPOUND BRAKE PADS
  • STEEL BRAIDED LINES WITH FITTINGS
  • ALL BOLTS, WASHERS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 108 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THESE HEADERS HERE.
