14-UP CORVETTE C7,FRONT,14.25",BLACK

14-UP CORVETTE C7,FRONT,14.25",BLACK

WIL 140-13697B

$2,439.99
$2,439.99
View full details
  • BRAND NEW WILWOOD PREMIUIM BIG BRAKE AERO6 CALIPER, BOLT-ON 14.25" DISC BRAKE KIT FOR BOTH FRONT BRAKE KIT FOR BOTH FRONT WHEELS.

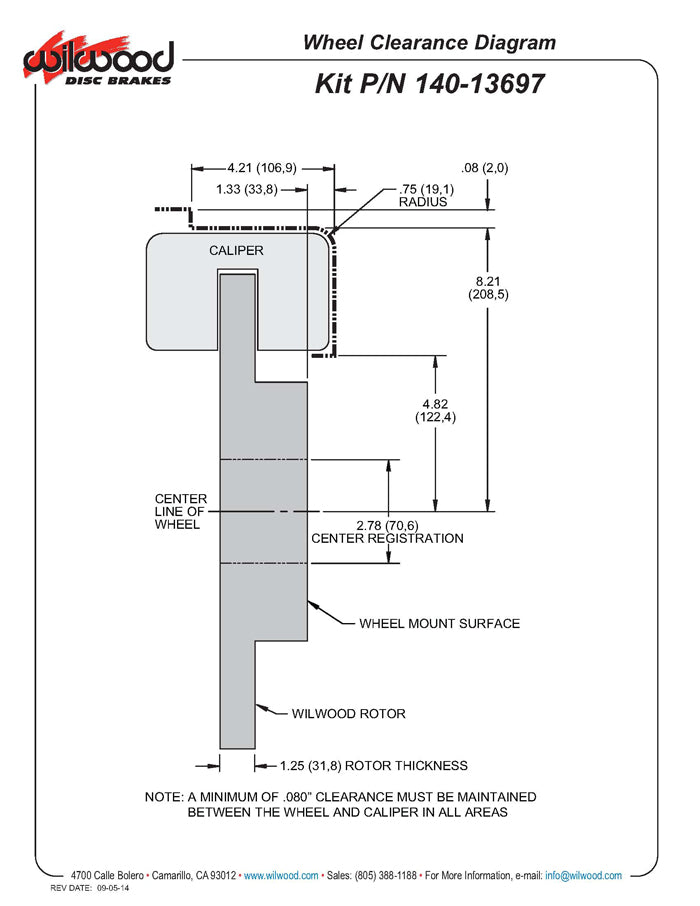

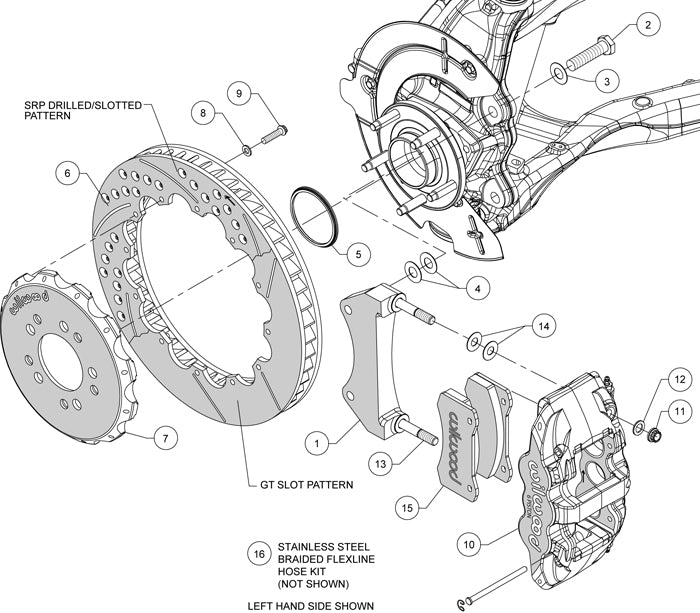

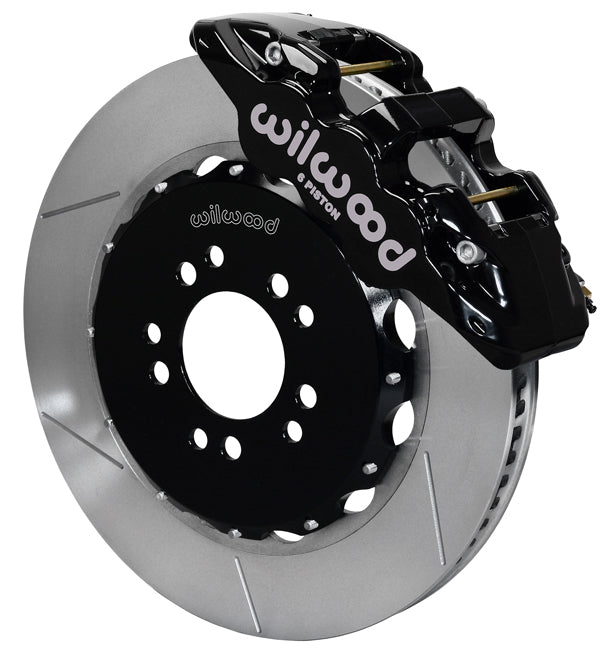

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES GT 72 CURVED VANE SLOTTED ROTORS WITH POWDER-COATED BLACK CALIPERS.

    • FITS:

    • 2014-2015 CORVETTE STINGRAY
    • 2015 CORVETTE Z06
    • 2014-2015 CORVETTE Z51

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • AERO6 CALIPERS WERE DESIGNED FOR THE SPECIFIC PURPOSE OF PROVIDING BIG CAPACITY BRAKING WITH LARGE DIAMETER ROTORS FOR HEAVY WEIGHT AND EXTREME DUTY VEHICLES

  • FOR CARS, ITS THE BIGGEST OF THE BIG PROVIDING BIG BRAKE PERFORMANCE FOR SHOW AND DUAL PURPOSE STREET AND TRACK VEHICLES. FOR TRUCKS AND SUVS, IT PROVIDES BIG STOPPING POWER FOR TOWING, OFF-ROAD, AND ENHANCED BRAKING WITH WHEEL AND TIRE UPGRADES. THE VEHICLES LISTED FOR THIS KIT ARE ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTION. DIRECTION STAGGERED VANE 14" DIAMETER ROTORS PROVIDE MAXIMUM COOLING FOR SUSTAINED HIGH HEAT DURABILITY.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

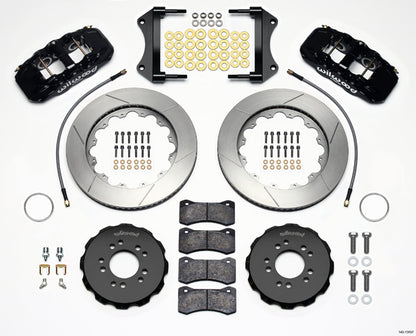

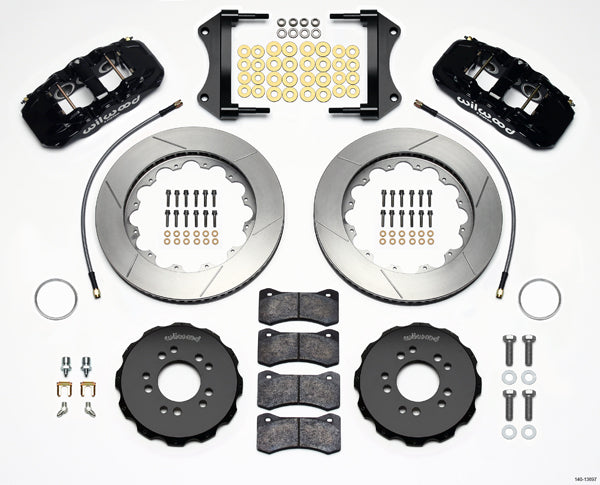

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • 1.25" X 14.25" O.D. GT 72 CURVED VANE SLOTTED ROTORS (12 x 8.75" Bolt Circle)
    • AEROLITE 6 PISTON CALIPERS - BLACK
    • CALIPER MOUNTING BRACKET
    • ROTOR REGISTRATION ADAPTER
    • BP-20 SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 71 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Corvette Front Kits, 2014-2019
