BUICK,OLDS,PONTIAC,REAR PB,11",DRILLED,RED

BRAND NEW WILWOOD DYNAPRO LOW PROFILE, BOLT-ON 11" REAR KIT WITH PARKING BRAKE KIT FOR REAR ENDS WITH AXLE FLANGES SHOWN BELOW (PART #140-13513-DR) FOR BOTH REAR WHEELS.

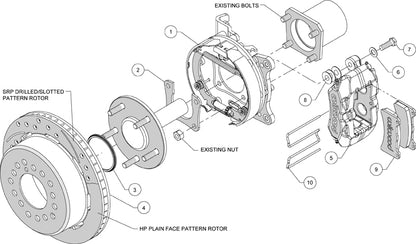

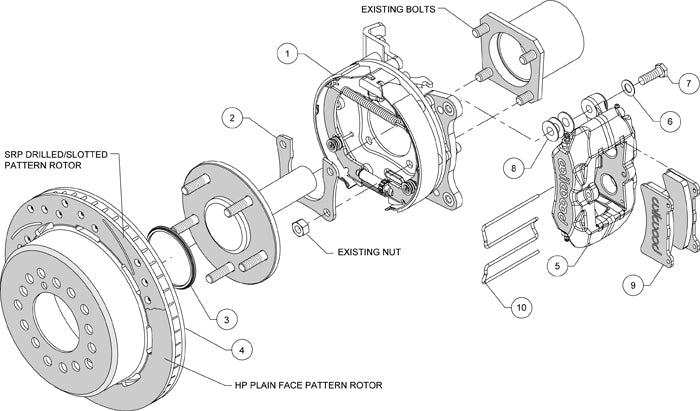

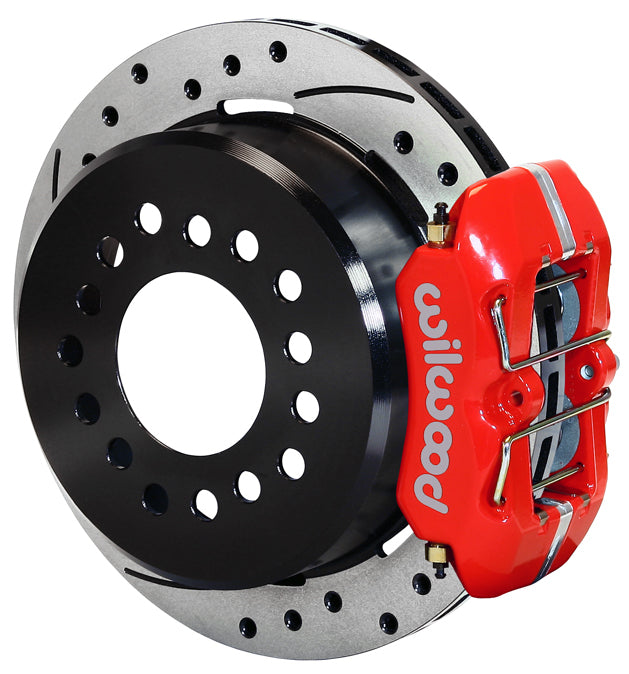

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED RED CALIPERS.

FITS:

• REAR ENDS WITH 64-70 BUICK, OLDSMOBILE, PONTIAC AXLE FLANGES (SHOWN BELOW) AND A 2.75" AXLE FLANGE OFFSET
• ***YOU WILL NEED TO VERIFY THE AXLE FLANGES ON THE OUTSIDE OF YOUR REAR END. JUST BECAUSE YOUR REAR END IS FROM A 64-70 BUICK, OLDS, OR PONTIAC VEHICLE, THAT DOESNT ENSURE THAT IT WILL HAVE THESE AXLE FLANGES ON IT***

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

DYNAPRO LOW-PROFILE PRO-SERIES REAR DISC BRAKE KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES ON APPLICATIONS THAT REQUIRE A PARKING BRAKE ASSEMBLY AND EXTRA CLEARANCE FOR 15.00" RIM APPLICATIONS. FORGED BILLET DYNAPRO LOW-PROFILE FOUR-PISTON CALIPERS 11.00" ONE-PIECE HAT AND ROTOR ASSEMBLIES, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING.

THESE LOW-PROFILE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

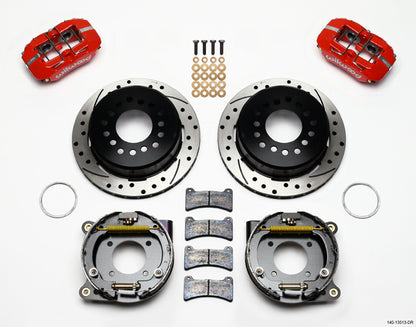

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• DRILLED & SLOTTED, .810" THICK X 11" O.D. ROTORS
• LOW-PROFILE DYNAPRO 4 PISTON CALIPERS - RED
• DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 45 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
