65-69 FORD MUSTANG KIT,FRONT,11.30",RED

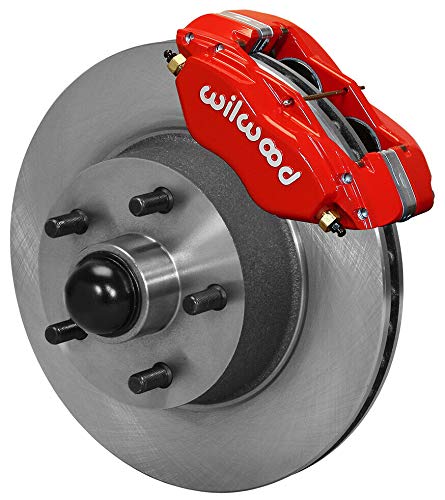

BRAND NEW WILWOOD CLASSIC SERIES BOLT-ON FRONT 11.30" DISC BRAKE KIT (PART #140-13476-R), FITS 1965-1969 FORD MUSTANG, 1963-1969 MERCURY COMET

WILWOODS CLASSIC SERIES FRONT DISC BRAKE KITS FOR 1965 TO 1969 FORD AND MERCURY OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM OR DISC SPINDLES. THESE KITS FEATURE THE FDL-M FOUR PISTON FORGED ALUMINUM CALIPER AND 11.30" DIAMETER X 0.94" THICK ONE-PIECE ROTORS. THE FDL-M CALIPER IS A MODIFIED VERSION OF THE TIME-TESTED FORGED DYNALITE CALIPER, AND PROVIDES THE GREATEST AMOUNT OF WHEEL CLEARANCE OF ANY FOUR PISTON CALIPER IN ITS SIZE CLASS.

THE OEM STYLE ONE-PIECE CAST IRON ROTORS WITH INTEGRATED HUBS SIMPLIFY INSTALLATION WHILE PROVIDING SUPERB DIMENSIONAL STABILITY AND WEAR RESISTANCE. THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND CLEAR MOST 14" OEM DISC BRAKE WHEELS, AND ALL 15" WHEELS. KITS WILL NOT FIT OEM DRUM BRAKE WHEELS.

FITS:

• FORD:
• 1965-1966 MUSTANG WITH V-8 SPINDLES
• 1967-1969 MUSTANG
• 1970 MUSTANG | GT350 & 500 ONLY
• 1966-1969 FAIRLANE
• 1963-1966 FALCON WITH V-8 SPINDLES
• 1967-1969 FALCON
• 1970 FALCON WITH DRUM BRAKE SPINDLES (THROUGH 8/24/1969 ONLY)
• 1970 MAVERICK WITH DRUM BRAKE SPINDLES (THROUGH 8/24/1969 ONLY)
• 1963-1965 RANCHERO WITH V-8 SPINDLES
• 1966-1969 RANCHERO
• 1968-1969 TORINO
• MERCURY:
• 1963-1966 COMET WITH V-8 SPINDLES
• 1967-1969 COMET
• 1967-1969 COUGAR
• 1963-1964 CYCLONE WITH V-8 SPINDLES
• 1965-1969 CYCLONE
• 1968-1969 MONTEGO

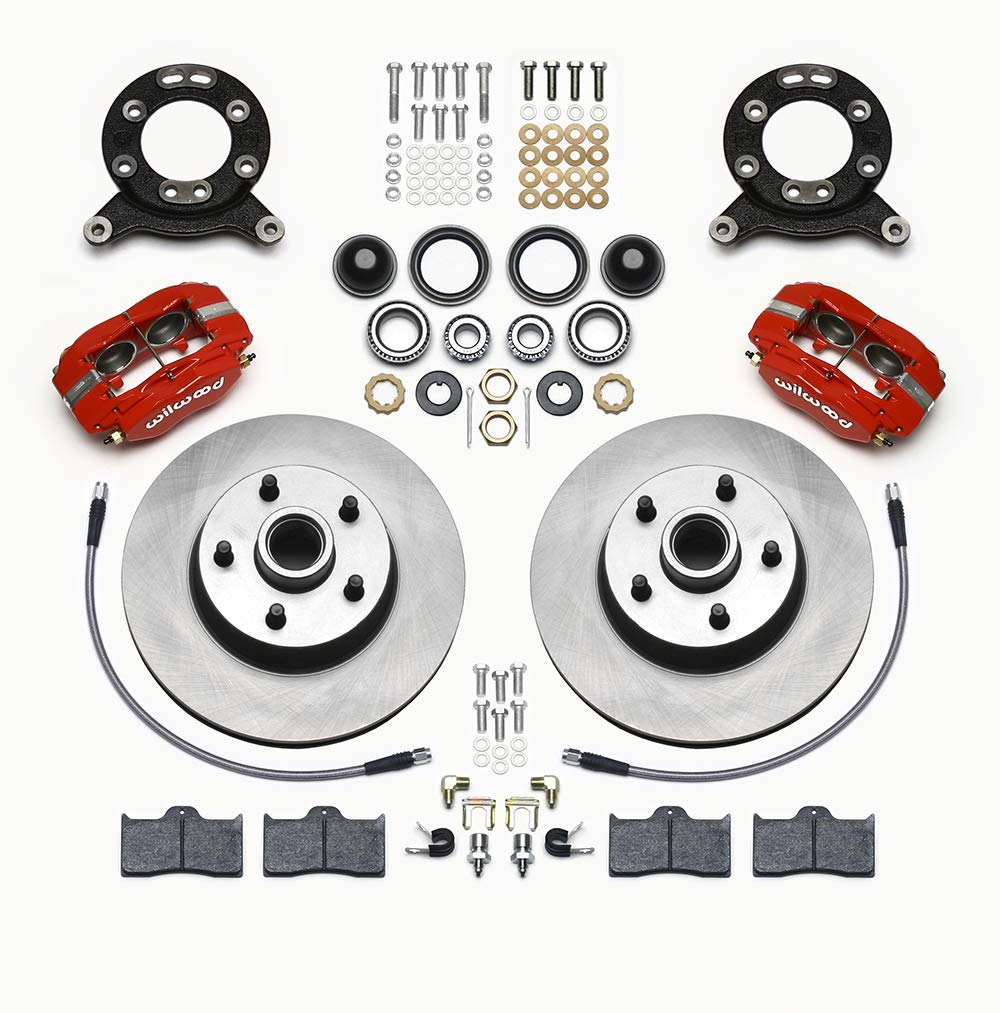

INCLUDES:

• .94" THICK X 11.30" O.D. 1-PIECE HUBS AND ROTORS
• FORGED DYNALITE FDL-M 4 PISTON CALIPERS - POWDER COATED RED
• CALIPER MOUNTING BRACKETS
• BP-20 SMART COMPOUND BRAKE PADS
• STEEL BRAIDED BRAKE LINES WITH NECESSARY FITTINGS
• BEARINGS, SEALS, ALL NECESSARY HARDWARE TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
• COMPLETE KIT WEIGHS APPROXIMATELY 66 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS BRAKE KIT HERE.
