65-69 FORD MUSTANG,FRONT,DP DUST BOOT,12" DRILLED ROTORS,BLACK CALIPERS

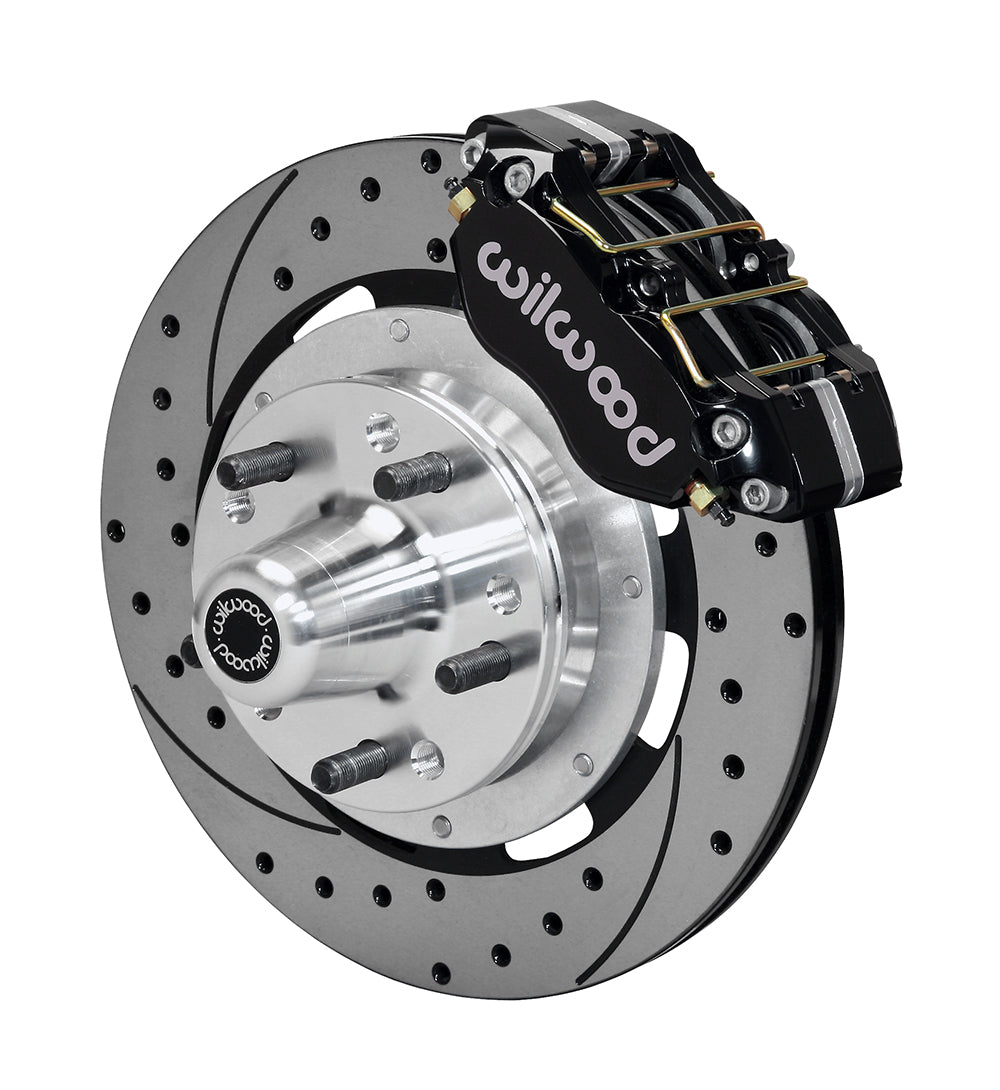

BRAND NEW WILWOOD DYNAPRO DUST-BOOT BIG BRAKE BOLT-ON FRONT HUB & 12.19" DRILLED DISC BRAKE KIT (PART #140-13344-D) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

DP-DB BIG BRAKE FRONT HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. DYNAPRO DUSTBOOT CALIPERS, 12.19" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER. THESE KITS WERE DEVELOPED FOR APPLICATIONS OR LOCATIONS THAT REQUIRE OR PREFER A DUST-SEALED PISTON. DUST-BOOT SEALED ALUMINUM PISTONS PROVIDE ADDED PROTECTION AGAINST ROAD OR TRACK BORN DIRT AND DEBRIS ON LOW TO INTERMEDIATE TEMPERATURE RANGE APPLICATIONS THAT MAY ALSO OPERATE IN HARSH ENVIRONMENTS. A FULL RANGE OF OPTIONS FOR CALIPER FINISH AND ROTOR DESIGN PROVIDE CUSTOM BUILDERS WITH THE ABILITY TO PERSONALIZE THE STYLE AND PERFORMANCE REQUIREMENTS OF THE MILDEST TO THE WILDEST MACHINES.

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

COMPATIBLE WITH:

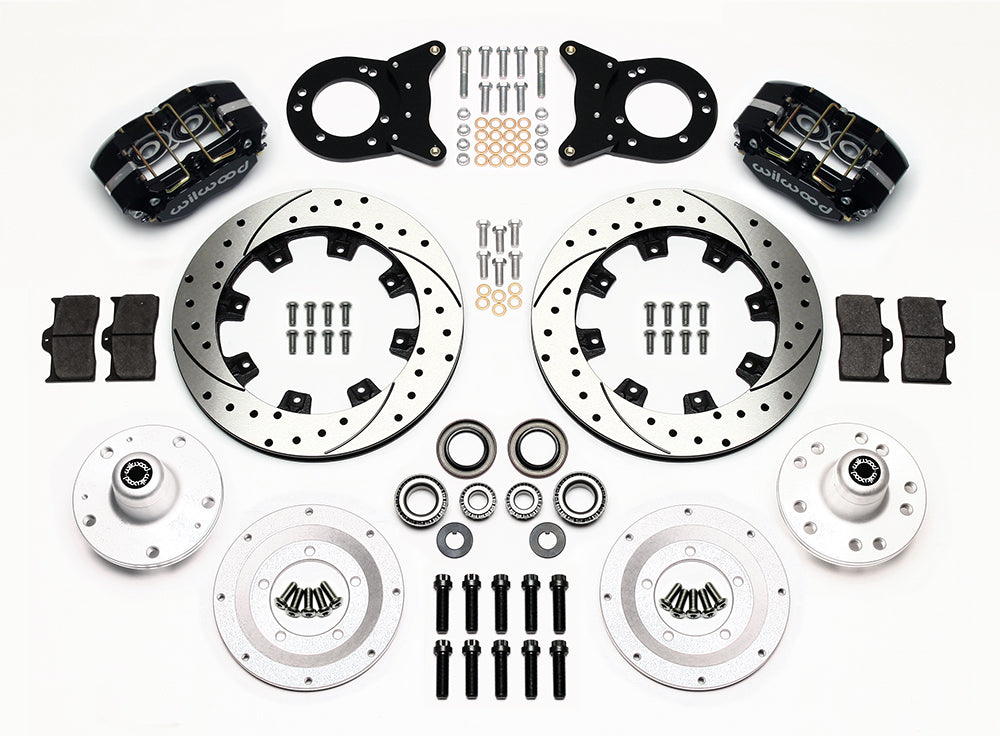

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, .810" THICK X 12.19" O.D. ROTORS
• DYNAPRO DUST-BOOT 4 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HUBS, BEARINGS, SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 44 LBS.

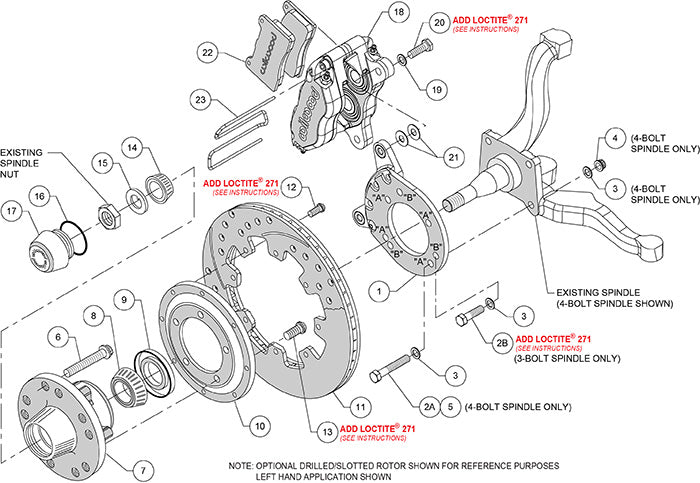

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
