65-69 FORD MUSTANG KIT,FRONT,14",RED

65-69 FORD MUSTANG KIT,FRONT,14",RED

WIL 140-12638R

$2,259.99
$2,259.99
View full details

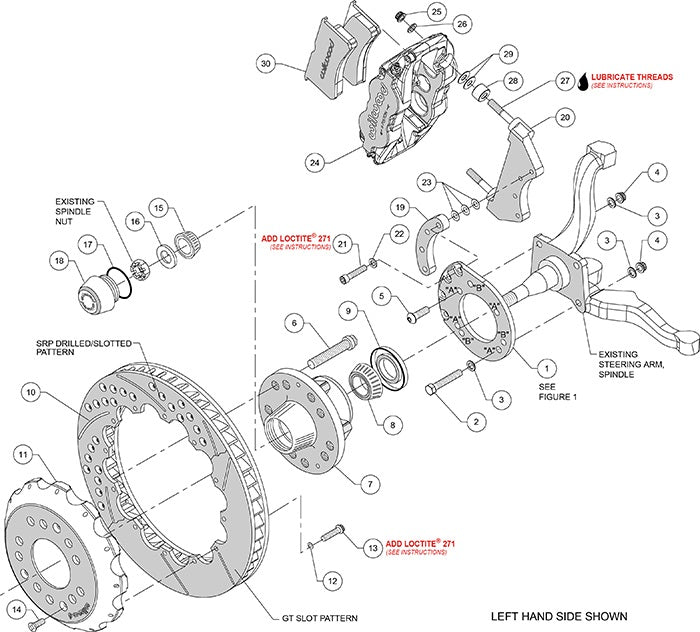

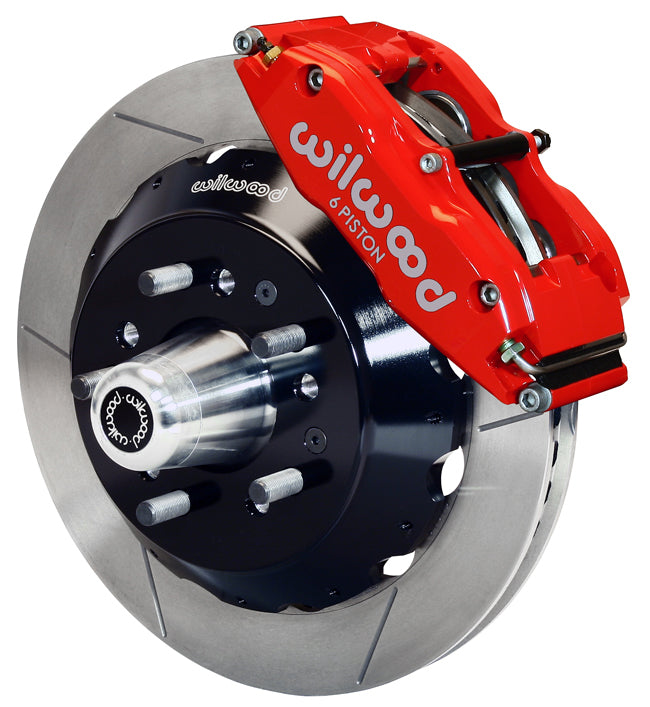

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM BIG BRAKE SUPERLITE 6 PISTON BOLT-ON FRONT HAT, HUB, & 14" DISC BRAKE KIT FOR:
    FORD:
    -1965-1966 MUSTANG WITH V-8 SPINDLES*
    -1967 MUSTANG, ALL*
    -1968-1969 MUSTANG WITH DRUM BRAKE SPINDLES*
    -1966-1967 FAIRLANE, ALL*
    -1968-1969 FAIRLANE WITH DRUM BRAKE SPINDLES*
    -1965-1966 FALCON WITH V-8 SPINDLES *
    -1967 FALCON, ALL*
    -1968-1969 FALCON WITH DRUM BRAKE SPINDLES*
    -1965 RANCHERO WITH V-8 SPINDLES*
    -1966-1967 RANCHERO, ALL*
    -1968-1969 RANCHERO WITH DRUM BRAKE SPINDLES*
    -1968-1969 TORINO WITH DRUM BRAKE SPINDLES*
    MERCURY:
    -1965-1966 COMET WITH V-8 SPINDLES*
    -1967 COMET, ALL*
    -1968-1969 COMET WITH DRUM BRAKE SPINDLES*
    -1967 COUGAR, ALL*
    -1968-1969 COUGAR WITH DRUM BRAKE SPINDLES*
    -1967 CYCLONE, ALL*
    -1968-1969 CYCLONE WITH DRUM BRAKE SPINDLES*
    -1968-1969 MONTEGO WITH DRUM BRAKE SPINDLES*

  • FEATURING STANDARD ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FNSL6R BILLET FORGED SIX-PISTON CALIPERS WITH 14" ROTORS DELIVER THE ULTIMATE COMBINATION FOR BRAKING POWER AND STYLE IN THIS GROUP OF KITS ENGINEERED FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS
  • BUILT EXCLUSIVELY FOR 18" AND LARGER WHEELS, SL6 KITS ENHANCE TIRE AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE DUAL-PURPOSE STREET AND TRACK MACHINES
  • BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON SHOW CARS AND HIGH PERFORMANCE STREET/TRACK MACHINES

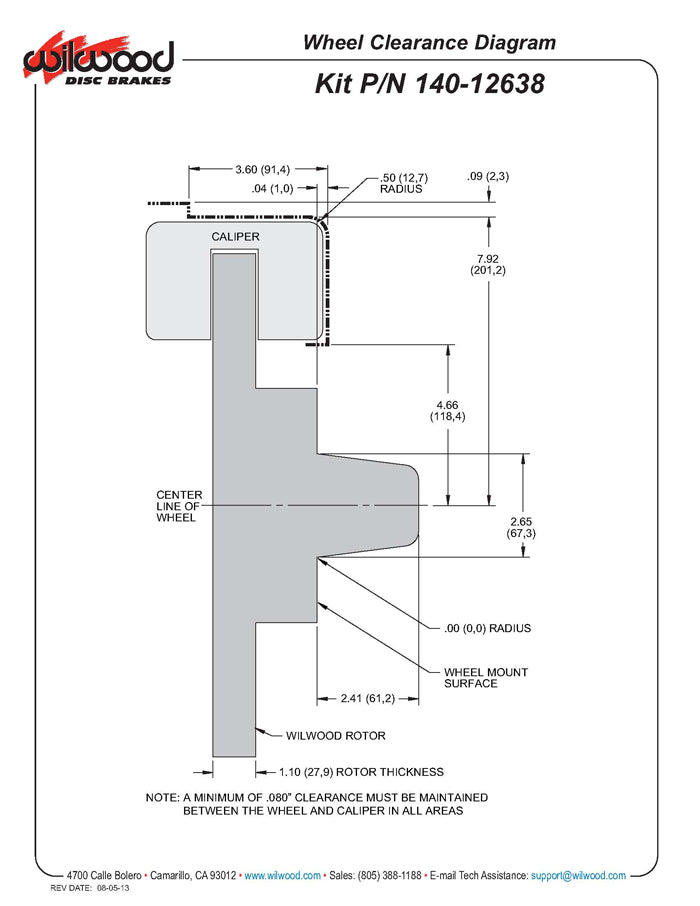

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS

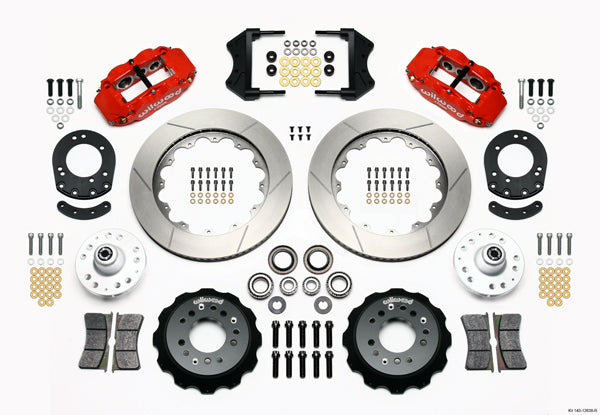

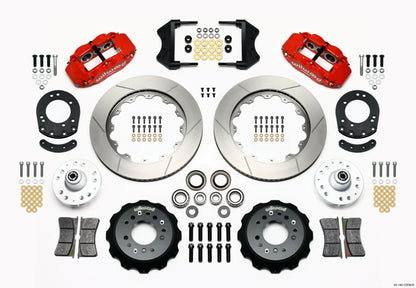

  • KIT INCLUDES:
    *STANDARD, 1.10" THICK X 14.00" O.D. ROTORS,
    *SUPERLITE 6 PISTON CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *BRAKE HATS,
    *BRAKE HUBS,&
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 62 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Ford Kits > Mustang Front Kits, 1965-1969
