HEIDT'S TRI-5 2" DROP KIT,FRONT,12",POLISHED

HEIDT'S TRI-5 2" DROP KIT,FRONT,12",POLISHED

WIL 140-12306P

$1,129.99
$1,129.99
View full details

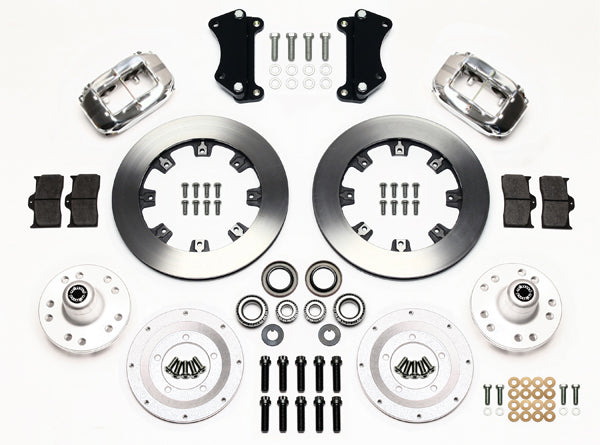

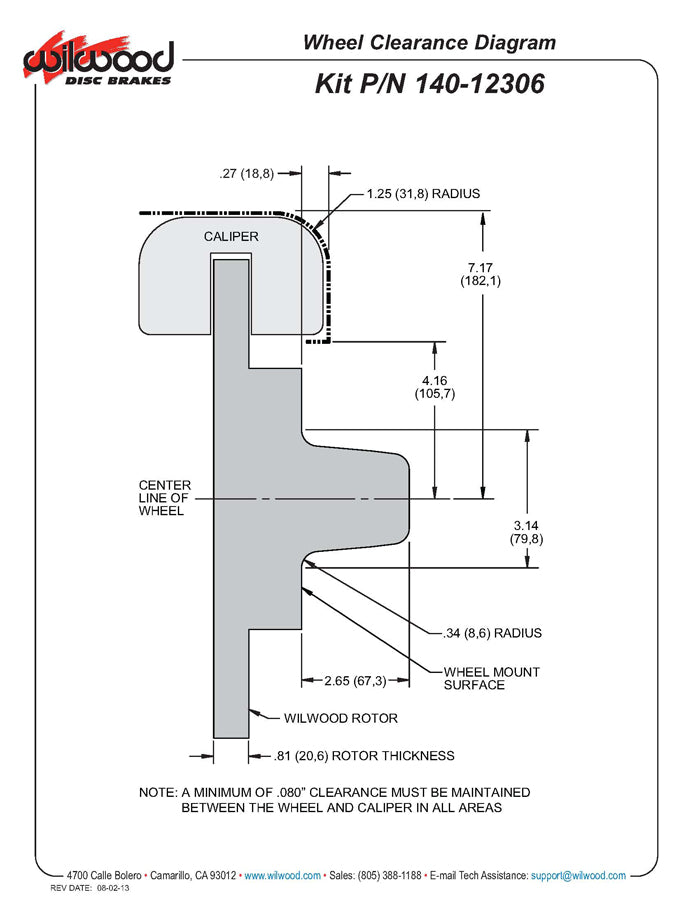

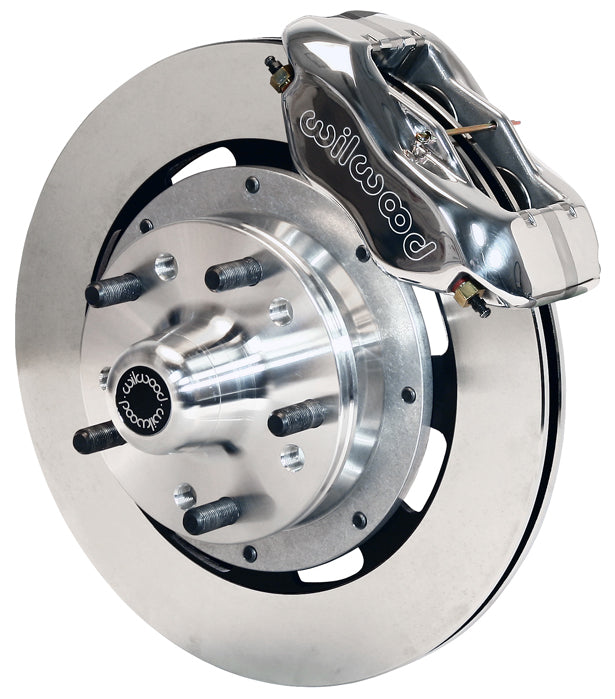

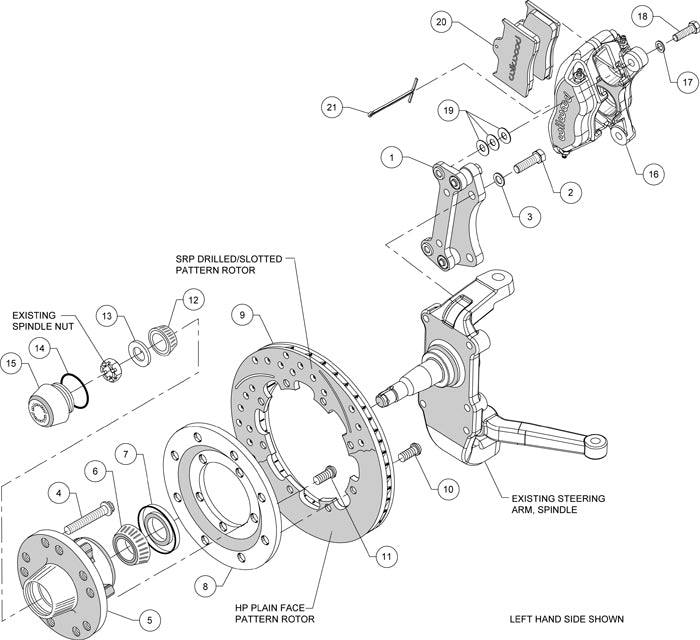

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM BIG BRAKE FORGED DYNALITE PRO SERIES BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT FOR:
    -1955-1957 CHEVY 150 WITH HEIDTS 2" DROP SPINDLES*
    -1955-1957 CHEVY 210 WITH HEIDTS 2" DROP SPINDLES*
    -1955-1957 CHEVY BEL AIR WITH HEIDTS 2" DROP SPINDLES*
    -1955-1957 CHEVY NOMAD WITH HEIDTS 2" DROP SPINDLES*
    -1955-1957 CHEVY SEDAN DELIVERY WITH HEIDTS 2" DROP SPINDLES*
    -1957 CHEVY DEL RAY WITH HEIDTS 2" DROP SPINDLES*

  • FEATURING STANDARD ROTORS AND POLISHED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FDL BIG BRAKE FRONT HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS
  • FORGED BILLET DYNALITE CALIPERS, 12.19" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET/STRIP MACHINES
  • THESE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS
  • THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

  • KIT INCLUDES:
    *STANDARD, .810" THICK X 12.19" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - POLISHED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *HUBS,
    *BEARINGS,
    *SEALS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 44LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Chevy Front Kits, 1955-1957
