BIG FORD NEW KIT,2.50",REAR PB,11,DR,RED

BIG FORD NEW KIT,2.50",REAR PB,11,DR,RED

WIL 140-11389DR

$1,089.99
$1,089.99
View full details

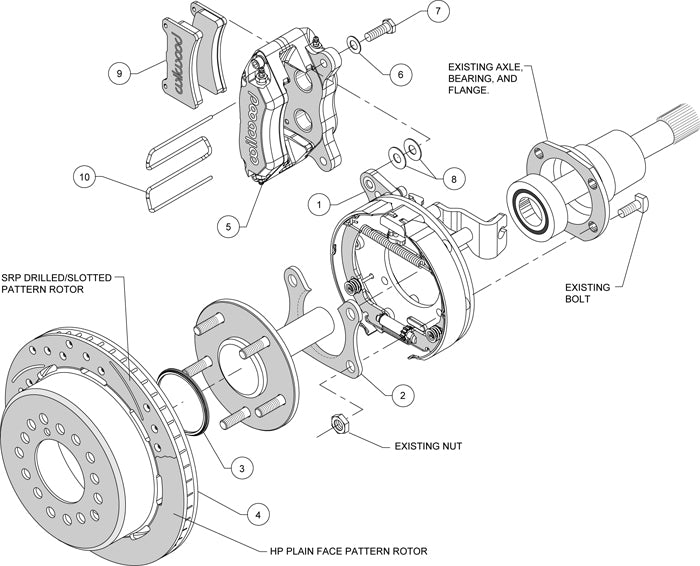

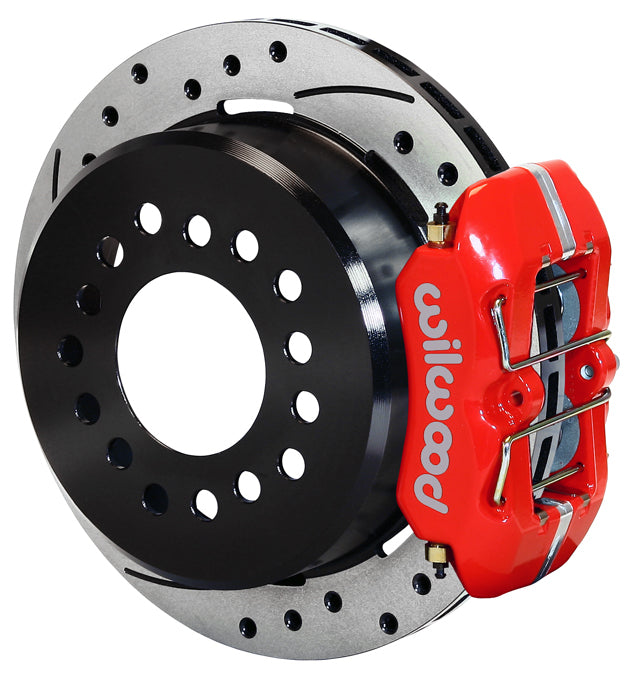

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD REAR PARKING BRAKE, DYNAPRO LOW-PROFILE, BOLT-ON 11" DISC BRAKE KIT FOR:

  • BIG BEARING FORD (NEW STYLE) REAR ENDS WITH A 3.562" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET (SEE DIAGRAMS BELOW)

  • FEATURING DRILLED & SLOTTED ROTORS & RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • DYNAPRO LOW-PROFILE PRO-SERIES REAR DISC BRAKE KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES ON APPLICATIONS THAT REQUIRE A PARKING BRAKE ASSEMBLY AND EXTRA CLEARANCE FOR 15.00" RIM APPLICATIONS
  • FORGED BILLET DYNAPRO LOW-PROFILE FOUR-PISTON CALIPERS 11.00" ONE-PIECE HAT AND ROTOR ASSEMBLIES, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES
  • THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

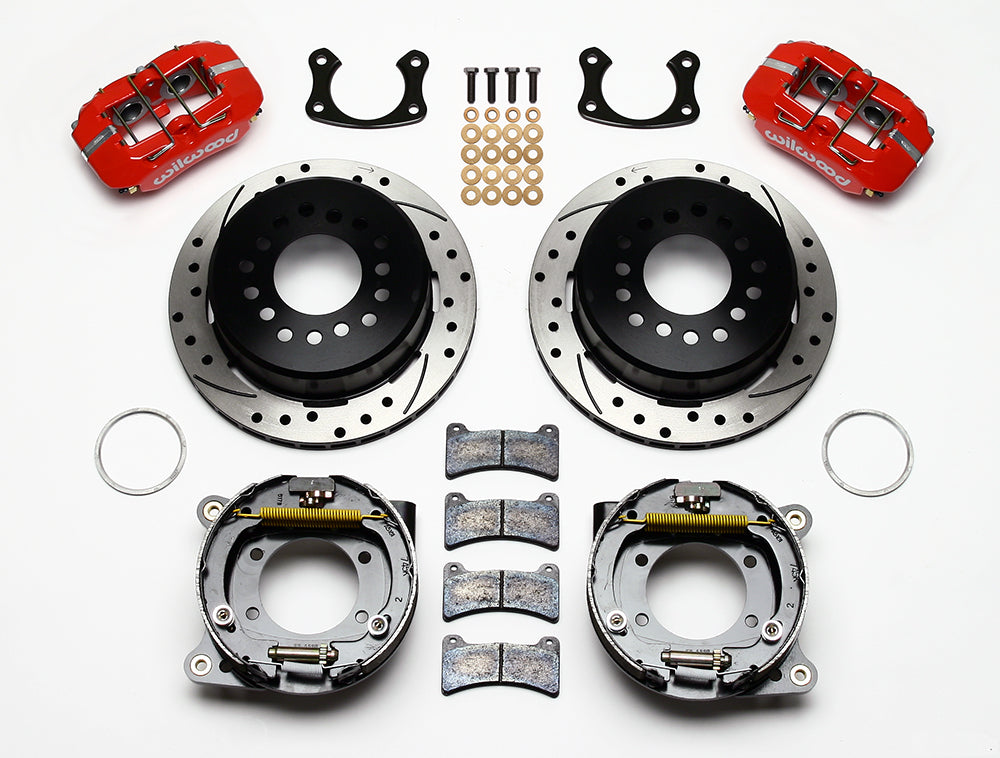

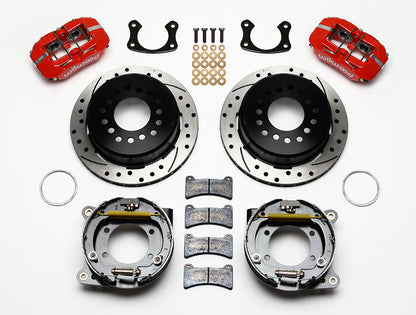

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK x 11.00" O.D. ROTORS WITH HATS,
    *LOW PROFILE DYNAPRO CALIPERS - RED,
    *DRUM PARKING BRAKE ASSEMBLIES WITH CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 44 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View
