62-72 CDP B&E DRUM,DODGE,PLYM,DP6,12.19"

62-72 CDP B&E DRUM,DODGE,PLYM,DP6,12.19"

WIL 140-10740B

$1,159.99
$1,159.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNAPRO 6 BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT FOR BOTH FRONT WHEELS.

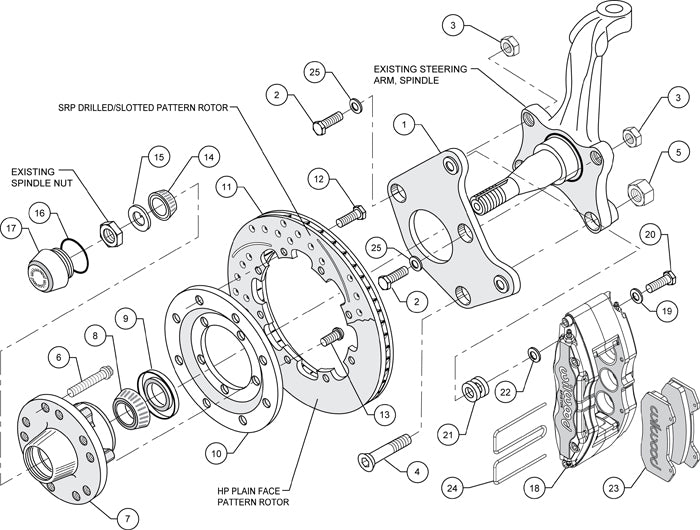

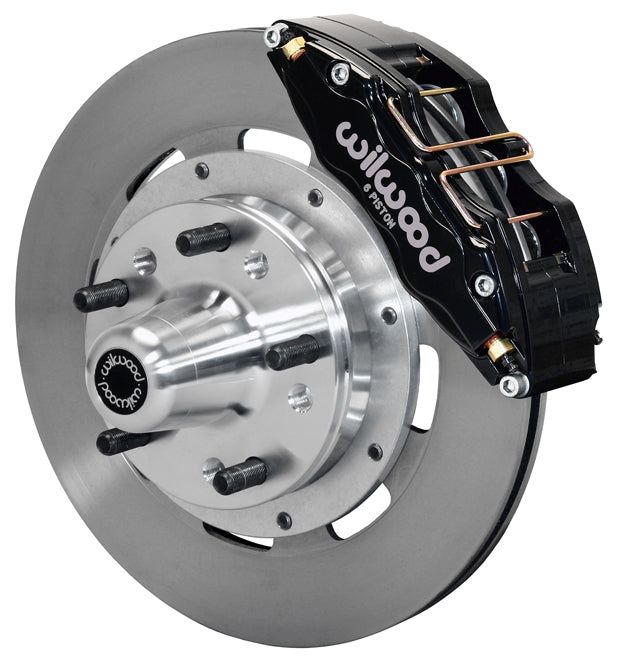

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED BLACK CALIPERS.

    • FITS:

    • DODGE:
      • 1963-1964 DODGE 330***
      • 1963-1964 DODGE 440***
      • 1962-1964 DODGE B-BODY***
      • 1965-1972 DODGE B-BODY WITH DRUM BRAKE SPINDLES***
      • 1970-1972 DODGE CHALLENGER WITH DRUM BRAKE SPINDLES***
      • 1966-1972 DODGE CHARGER WITH DRUM BRAKE SPINDLES***
      • 1965-1972 DODGE CORONET WITH DRUM BRAKE SPINDLES***
      • 1970-1972 DODGE E-BODY WITH DRUM BRAKE SPINDLES***
      • 1962-1964 DODGE POLARA***
      • 1962-1964 DODGE SAVOY***
      • 1968-1971 DODGE SUPER BEE WITH DRUM BRAKE SPINDLES***
    • PLYMOUTH:
      • 1970-1972 PLYMOUTH BARRACUDA WITH DRUM BRAKE SPINDLES***
      • 1962-1964 PLYMOUTH B-BODY***
      • 1965-1972 PLYMOUTH B-BODY WITH DRUM BRAKE SPINDLES***
      • 1962-1964 PLYMOUTH BELVEDERE***
      • 1965-1970 PLYMOUTH BELVEDERE WITH DRUM BRAKE SPINDLES***
      • 1970-1972 PLYMOUTH E-BODY WITH DRUM BRAKE SPINDLES***
      • 1962-1964 PLYMOUTH FURY***
      • 1967-1972 PLYMOUTH GTX WITH DRUM BRAKE SPINDLES***
      • 1968-1972 PLYMOUTH ROAD RUNNER WITH DRUM BRAKE SPINDLES***
      • 1965-1972 PLYMOUTH SATELLITE WITH DRUM BRAKE SPINDLES***
      • 1962-1964 PLYMOUTH SAVOY***

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • DYNAPRO 6 FORGED BILLET CALIPERS ARE COMBINED WITH 12.19" DIAMETER ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF THE SIX PISTON CALIPERS PROVIDE AN INTERMEDIATE LEVEL ALTERNATIVE TO THE BIGGER SIX PISTON KITS. THESE KITS COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE STREET / STRIP MACHINES.

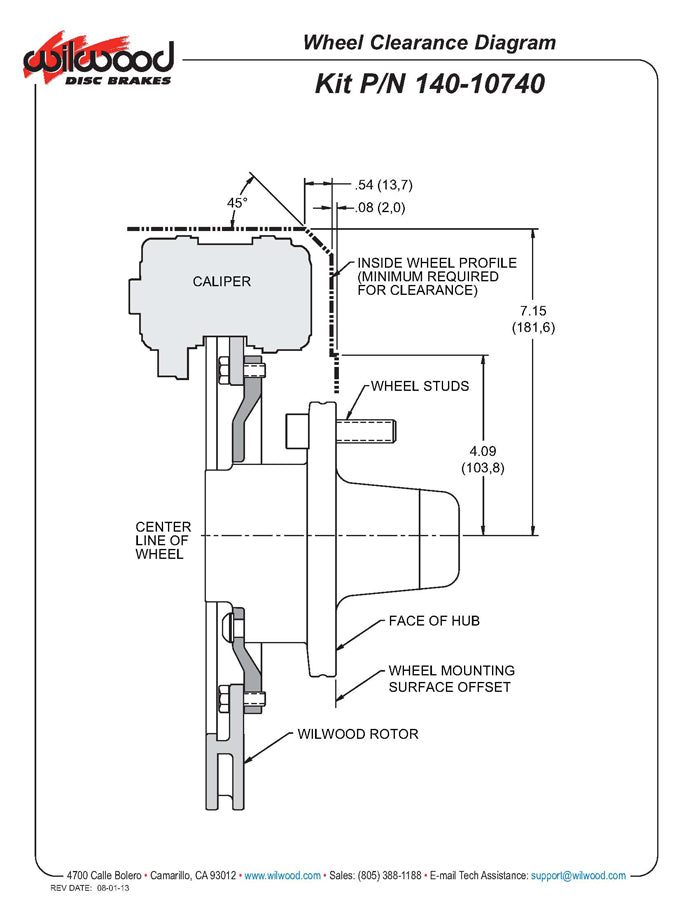

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

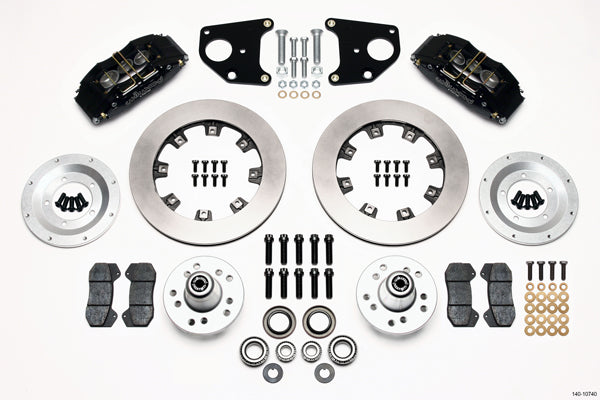

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • .810" THICK X 12.19" O.D. ROTORS
    • DYNAPRO 6 PISTON CALIPERS - BLACK
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • HUBS
    • BEARINGS
    • SEALS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 49 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
