37-48 FORD KIT,FRONT,DP6,12",RED

37-48 FORD KIT,FRONT,DP6,12",RED

WIL 140-10739R

$1,169.99
$1,169.99
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNAPRO 6 BOLT-ON FRONT HUB & 12.19" DISC BRAKE KIT FOR BOTH FRONT WHEELS.

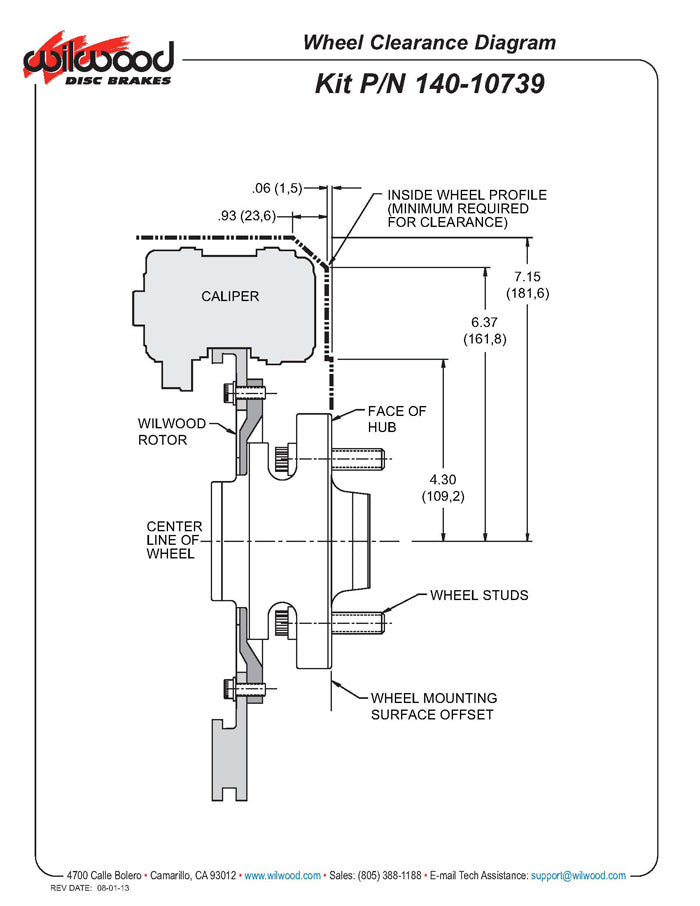

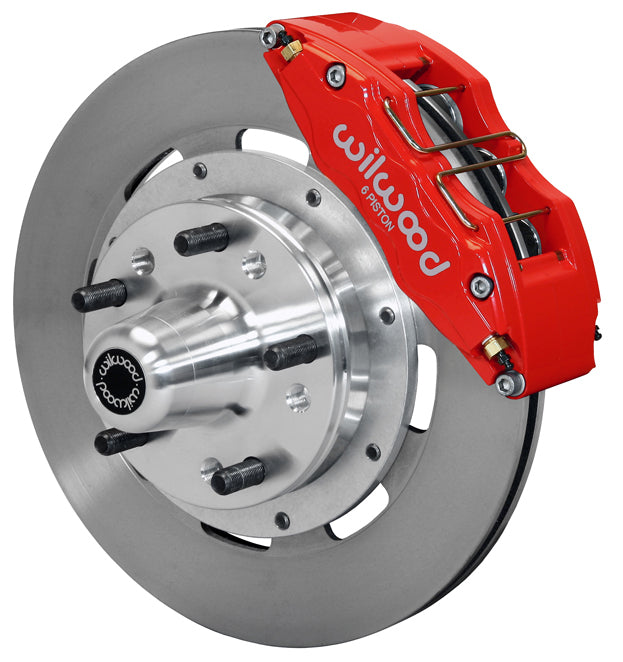

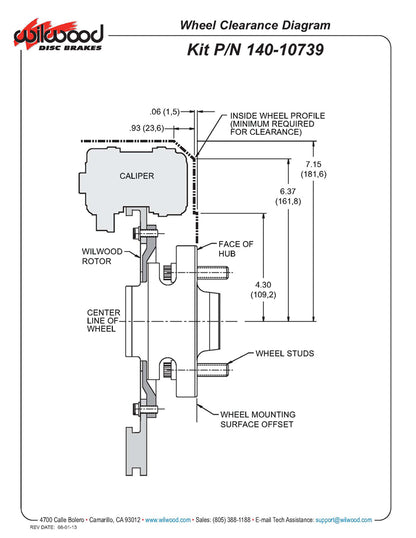

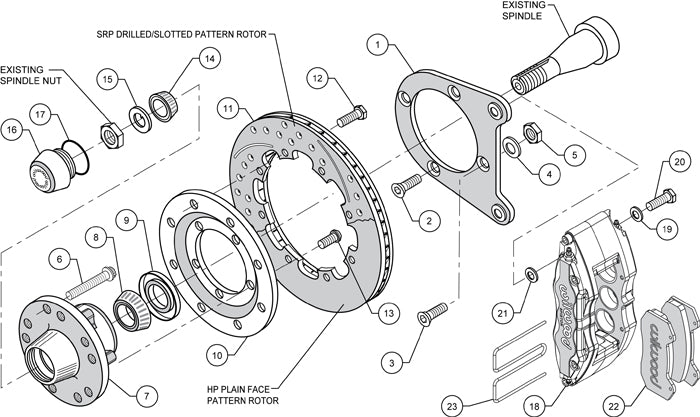

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED RED CALIPERS.

    • FITS:

    • FORD:
      • 1937-1948: PASSENGER***
      • 1937: 73 ALL 1/2 TON, TRUCK / SEDAN DELIVERY***
      • 1937: 74 ALL TUDOR / FORDOR / SW***
      • 1937: 77 ALL 1/2 TON, TRUCK / SEDAN DELIVERY***
      • 1937: 78 ALL TUDOR / FORDOR / SW***
      • 1938: 81A ALL TUDOR / FORDOR / SW***
      • 1938: 81C ALL 1/2 TON, TRUCK / SEDAN DELIVERY***
      • 1938: 82A ALL TUDOR / FORDOR / SW***
      • 1938: 82C ALL 1/2 TON, TRUCK / SEDAN DELIVERY***
      • 1939: 91A ALL TUDOR / FORDOR / SW, STANDARD & DELUXE***
      • 1939: 91C ALL 1/2 TON, TRUCK / SEDAN DELIVERY***
      • 1939: 922A ALL TUDOR & FORDOR***
      • 1939: 922C ALL 1/2 TON, TRUCK / SEDAN DELIVERY***
      • 1940: STANDARD ALL 2 DOOR / 4 DOOR / SW***
      • 1940: 01C ALL 1/2 TON, TRUCK / SEDAN DELIVERY***
      • 1940: 01C ALL 3/4 TON TRUCK***
      • 1940: 02D ALL 3/4 TON TRUCK***
      • 1940: 022A ALL 2 DOOR / 4 DOOR***
      • 1940: 022C ALL 1/2 TON, TRUCK / SEDAN DELIVERY***
      • 1941-1946: SPECIAL ALL TUDOR & FORDOR***
      • 1941-1947: 1GC ALL 1/2 TON, TRUCK / SEDAN DELIVERY***
      • 1941-1947: 1GD ALL 3/4 TON TRUCK***
      • 1941-1947: 1NC ALL 1/2 TON, TRUCK / SEDAN DELIVERY***
      • 1941-1947: 1ND ALL 3/4 TON TRUCK***
      • 1946-1948: 70 ALL***
      • 1946-1948: 71 ALL***
      • 1946-1948: 72 ALL***
      • 1946-1948: 76 ALL***
      • 1946-1948: 79 ALL***

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • DYNAPRO 6 FORGED BILLET CALIPERS ARE COMBINED WITH 12.19" DIAMETER ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF THE SIX PISTON CALIPERS PROVIDE EXCEPTIONAL STOPPING POWER. THESE KITS COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE STREET / STRIP MACHINES.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

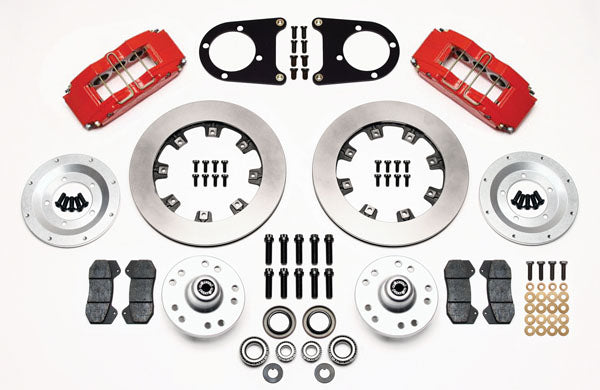

    • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • .810" THICK X 12.19" O.D. ROTORS
    • DYNAPRO 6 PISTON CALIPERS - RED
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • HUBS
    • BEARINGS
    • SEALS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 48 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Ford Kits > Early Ford Front Kits, 1937-1948
