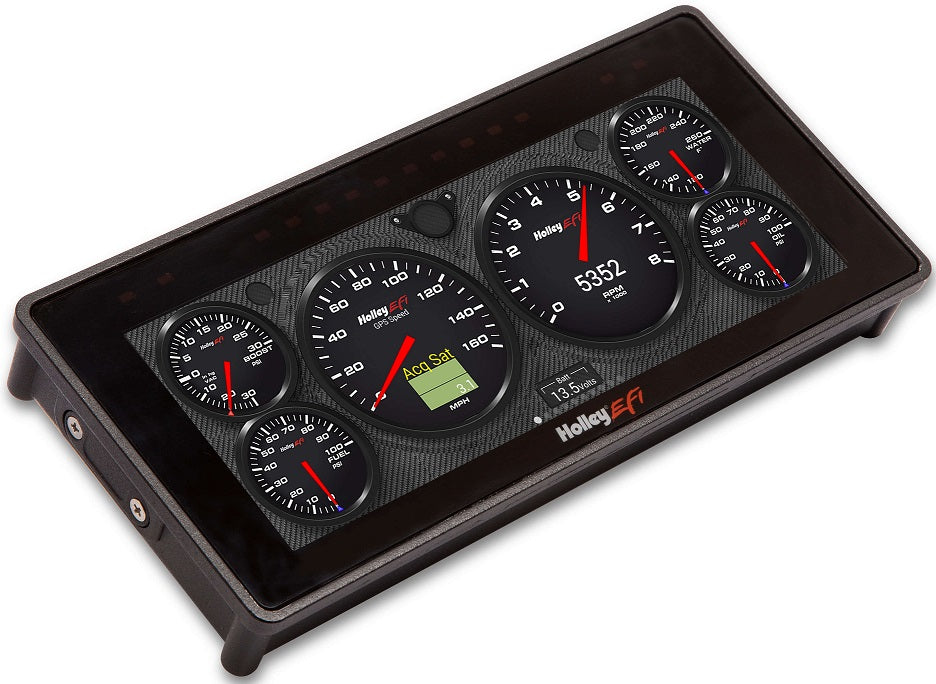

EFI PRO DASH,TOUCH SCREEN,6.86"

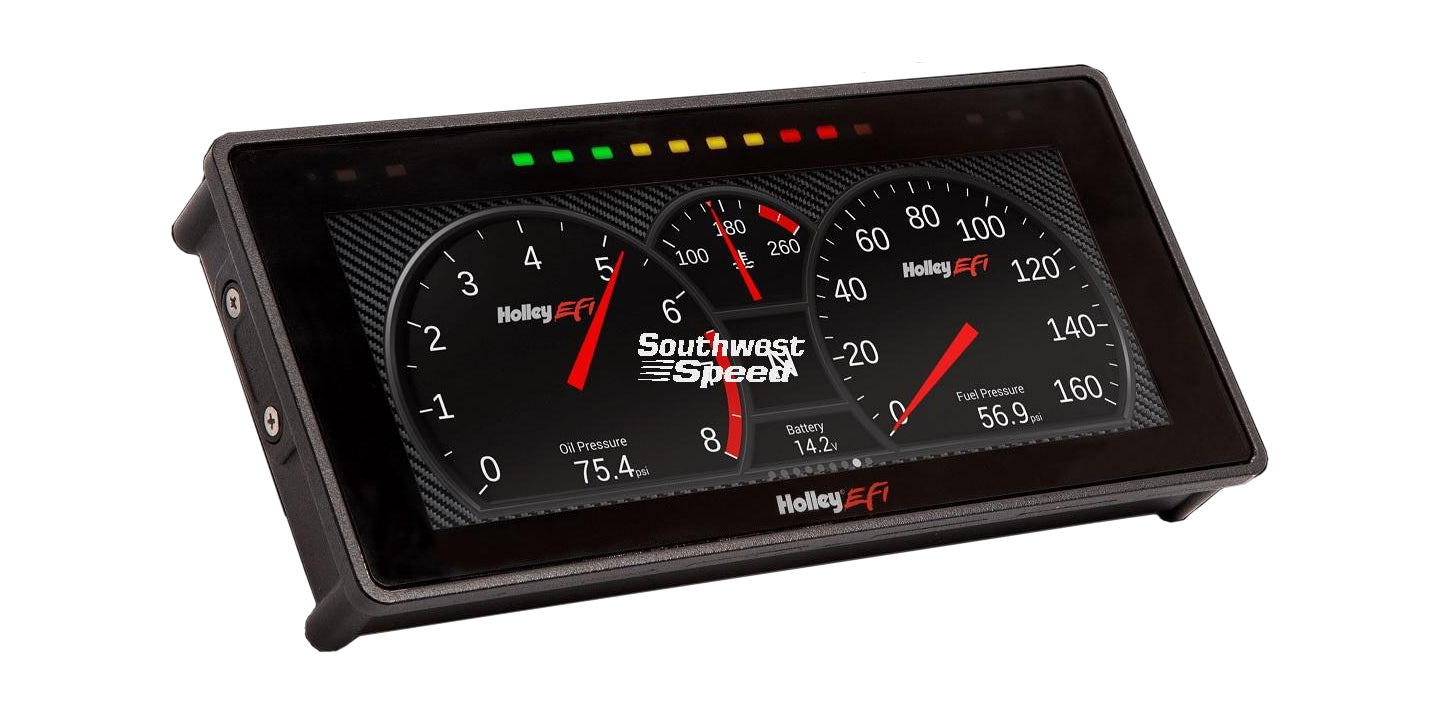

BRAND NEW HOLLEY EFI PRO DASH TOUCH SCREEN DIGITAL DASHBOARD WITH HIGH RESOLUTION 6.86" SCREEN

THE 6.86" PRO DASH IS COMPLETELY CUSTOMIZABLE FOR USE IN A VARIETY OF MOTORSPORTS APPLICATIONS. IT FEATURES A 6.86" 1280X480 RESOLUTION LOW GLARE, HIGH BRIGHTNESS, HIGH CONTRAST, FULL COLOR CAPACITIVE TOUCH SCREEN FOR EASY VIEWING EVEN IN SUN, PLUG & PLAY CONNECTION TO ALL HOLLEY EFI SYSTEMS & A WEATHER RESISTANT ALUMINUM HOUSING FEATURING FLEXIBLE MOUNTING OPTIONS.

INPUT/OUTPUTS FOR EXPANDED FUNCTIONALITY. 34 PIN CONNECTOR HAS 13 MULTI-CONFIGURABLE INPUTS FOR MOST HOLLEY EFI SENSORS LIKE PRESSURE & TEMPERATURE. INPUTS ARE CONFIGURABLE, ALLOWING UTILIZATION OF DIFFERENT SENSOR SCALING CALIBRATIONS. 2 DEDICATED SPEED INPUTS FOR RPM, DRIVESHAFT SPEED, OR ANY OTHER HALL EFFECT SPEED INPUT. 4 GROUND SWITCHED OUTPUTS THAT CAN BE UTILIZED WITH THE SWITCH PANEL FEATURE TO QUICKLY TURN ON ANY OF YOUR AUXILIARY ACCESSORIES (MASTER NITROUS SWITCH/ELECTRIC WATER PUMP)

NOTE: THIS DEVICE WILL ONLY DISPLAY AND/OR COMMUNICATE WITH HOLLEY EFI HP/DOMINATOR ECUS WITH V4 BUILD 110 OR LATER FIRMWARE. IT WILL ALSO COMMUNICATE WITH TERMINATOR X / TERMINATOR X MAX AND SNIPER ECUS.

FEATURES:

• PLUG & PLAY DISPLAY SUPPORT FOR DOMINATOR, HP, TERMINATOR X & SNIPER EFI
• INTEGRATED 10-LED PROGRAMMABLE SHIFTLIGHT WITH 4-LED WARNING INDICATORS FOR OTHER SENSOR INPUTS
• CAPABLE OF MONITORING UP TO 238 REAL-TIME VALUES LIKE RPM/TPS/BOOST
• 10 DEFAULT BACKGROUND SKINS PRE-LOADED
• QUICKLY SWIPE BETWEEN MULTIPLE ACTIVE SCREENS (TUNE, WARM-UP, RACE, DRIVE, ETC.)
• VIRTUAL SWITCH PANEL ELIMINATES THE NEED FOR EXTERNAL TOGGLE SWITCHES
• MANUAL OR AUTO-BRIGHTNESS FEATURES
• BUILT-IN GPS WITH ODOMETER FUNCTION (ANTENNA INCLUDED)
• ON-SCREEN DATALOG PLAYBACK FEATURES
• EXPANDABLE STORAGE VIA USB
• NO STYLUS REQUIRED, CAPACITIVE TOUCH
• USER DEFINABLE CHANNEL ALARMS & WARNINGS
• 4X 10-32 MOUNTING HOLES FOR SURFACE OR FLUSH MOUNTING W/ HARDWARE INCLUDED
• USB KEYBOARD & MOUSE FUNCTIONALITY

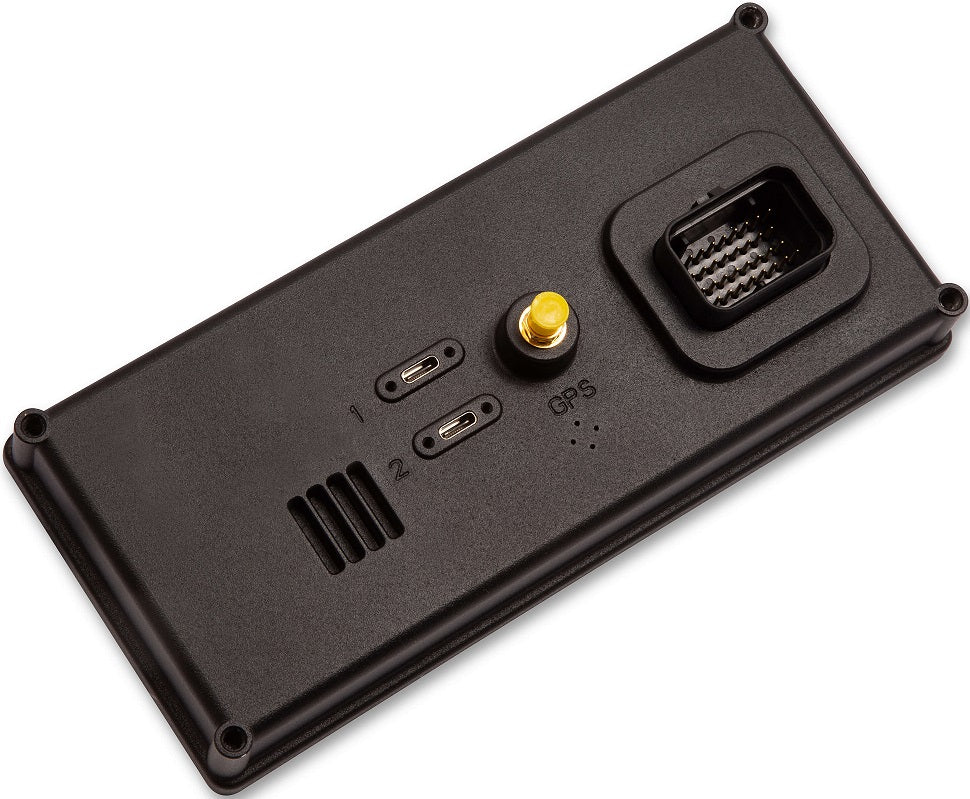

• 34 PIN WIRING HARNESS CONTAINS POWER, GROUND & CANBUS CONNECTIONS
• INPUT/OUTPUT FUNCTIONALITY FOR 13 MULTI-CONFIGURABLE INPUTS & 4 GROUND SWITCHED OUTPUTS
• USER DEFINED ALARMS FOR ANY INPUT
• UP-GRADABLE WITH FUTURE SOFTWARE ENHANCEMENTS
• VIEWING AREA - 6.86" DIAGONALLY
• DASH WEIGHT - 1.2 LBS.
• REAL-TIME ECU TUNING - HP/DOMINATOR ECUS ONLY

SPECS:

• BRAND: HOLLEY EFI
• DEPTH: 1.25"
• HEIGHT: 3.4375"
• WIDTH: 7.5625"
• PRODUCT TYPE: DIGITAL DASHES
• SCREEN SIZE: 6.86"
• SCREEN TYPE: CAPACITIVE TOUCH SCREEN

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS PRO HOLLEY EFI DASH HERE.
