EFI PRO DASH,TOUCH SCREEN,12.3"

BRAND NEW HOLLEY EFI 12.3" PRO TOUCH SCREEN DIGITAL DASH, COMPATIBLE WITH HOLLEY HP, SNIPER EFI & TERMINATOR X SYSTEMS

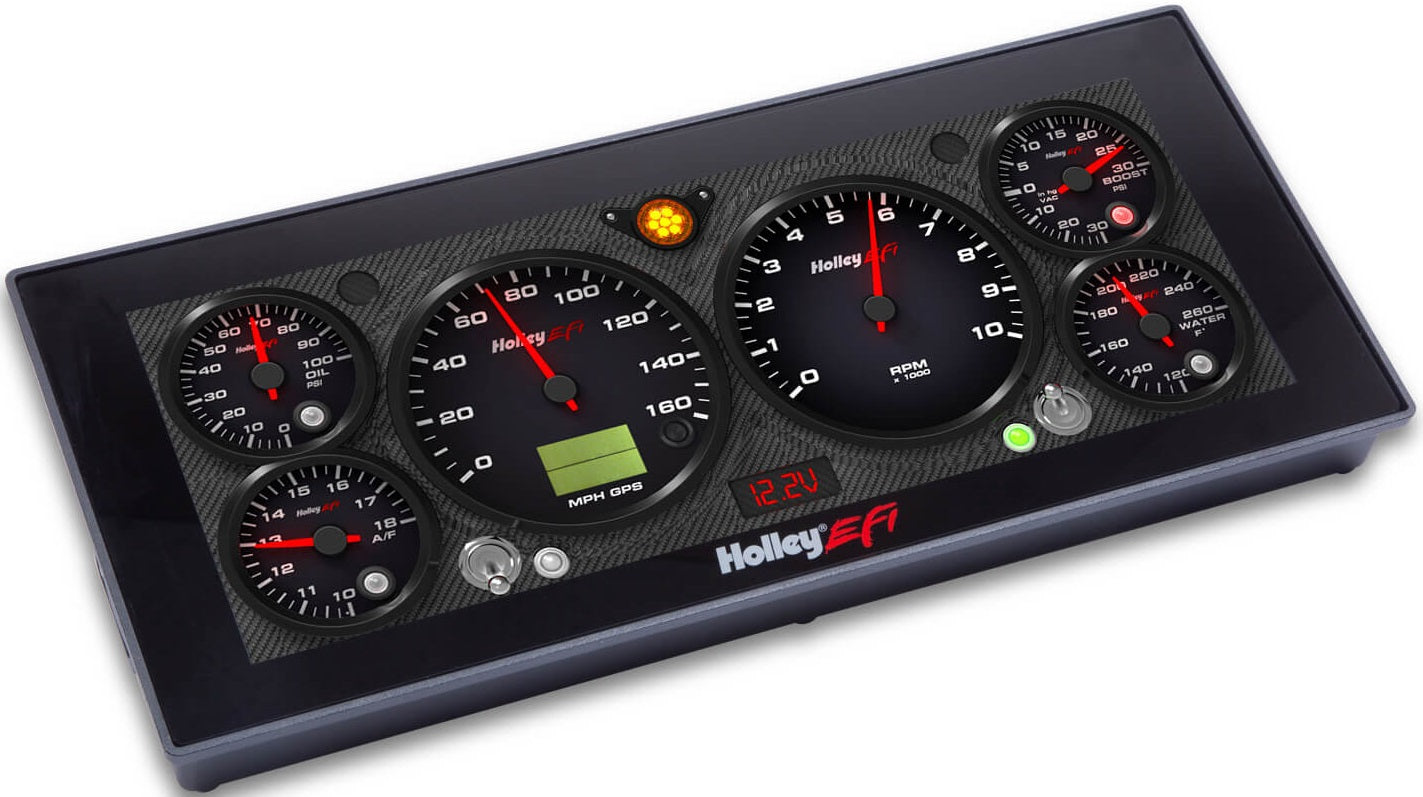

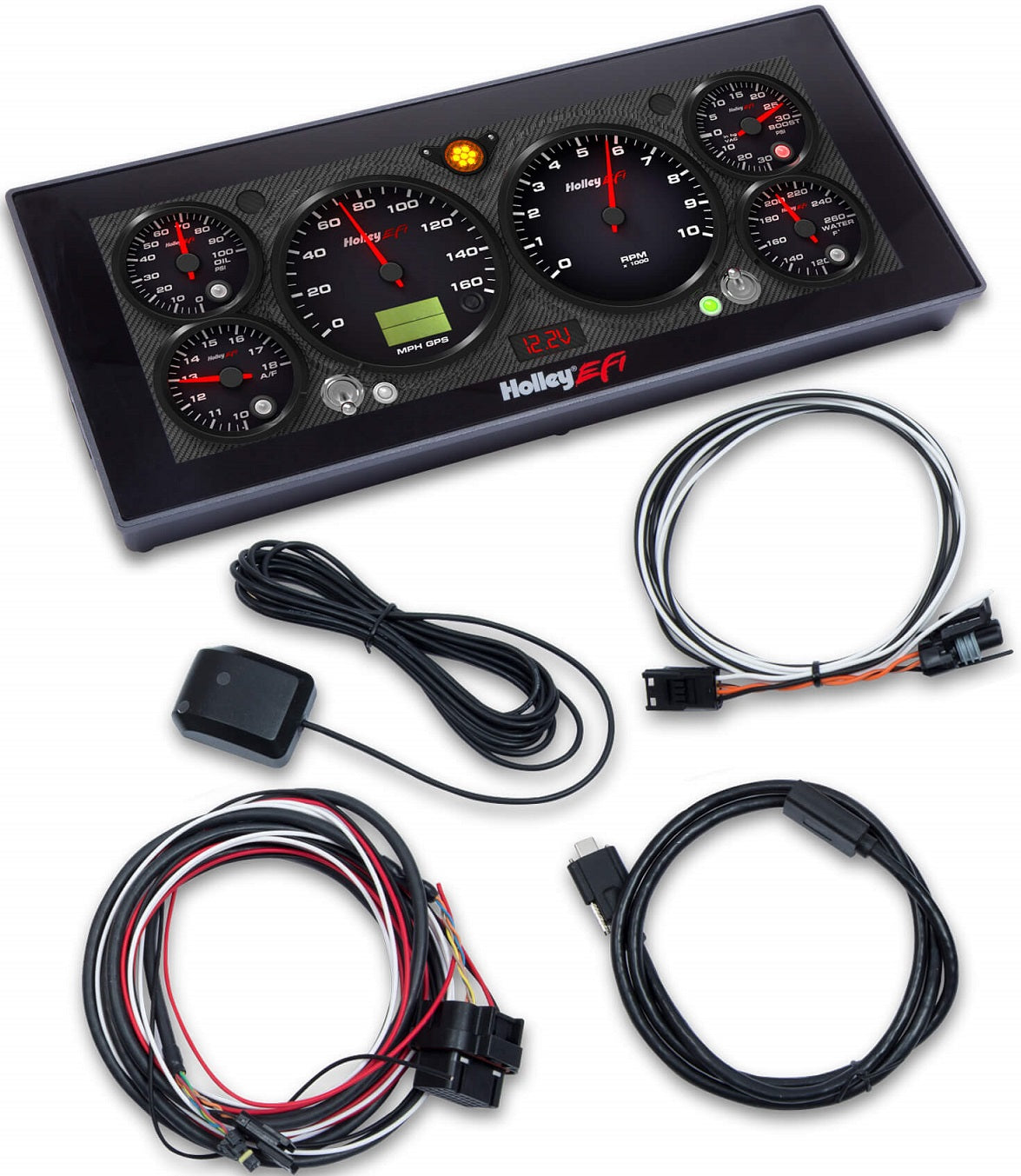

HOLLEY EFI PRO DASH MEASURES 13.44" WIDE, 5.81" TALL & 1.25" DEEP. THE PRO DASH IS COMPLETELY CUSTOMIZABLE FOR USE IN A VARIETY OF MOTORSPORTS APPLICATIONS. IT FEATURES A 12.3" 1280X480 RESOLUTION LOW GLARE, HIGH BRIGHTNESS & CONTRAST, FULL COLOR CAPACITIVE TOUCH SCREEN FOR EASY VIEWING EVEN IN FULL SUN, PLUG & PLAY CONNECTION TO ALL HOLLEY EFI SYSTEMS & A WEATHER RESISTANT ALUMINUM HOUSING FEATURING FLEXIBLE MOUNTING OPTIONS. HOLLEY EFI 12.3" PRO DASH INCLUDES EVERYTHING NEEDED FOR INSTALL!

THE HOLLEY EFI 12.3" PRO DASH ALSO FEATURES INPUT/OUTPUTS FOR EXPANDED FUNCTIONALITY OF YOUR HOLLEY EFI INSTALL. THE 34 PIN CONNECTOR HAS 13 MULTI-CONFIGURABLE INPUTS FOR MOST HOLLEY EFI SENSORS LIKE PRESSURE & TEMP. THESE INPUTS ARE CONFIGURABLE, ALLOWING YOU TO UTILIZE DIFFERENT SENSOR SCALING CALIBRATIONS, 2 DEDICATED SPEED INPUTS FOR RPM, DRIVESHAFT SPEED, OR ANY OTHER HALL EFFECT SPEED INPUT.

WILL ONLY DISPLAY AND/OR COMMUNICATE WITH HOLLEY EFI.

FEATURES:

• REAL-TIME ECU TUNING, ALLOWS YOU TO MAKE QUICK TUNE CHANGES, WITHOUT NEEDING TO HOOK UP A LAPTOP
• CAPABLE OF MONITORING UP TO 238 REAL-TIME VALUES SUCH AS RPM/TPS/BOOST
• 16 DEFAULT BACKGROUND SKINS PRE-LOADED WITH UNLIMITED OPTIONS FOR IMPORTING CUSTOM LAYOUTS
• QUICKLY SWIPE BETWEEN MULTIPLE ACTIVE SCREENS (TUNE, WARM-UP, RACE, DRIVE, ETC.)
• VIRTUAL SWITCH PANEL ELIMINATES THE NEED FOR EXTERNAL TOGGLE SWITCHES
• MANUAL OR AUTO-BRIGHTNESS FEATURES FOR EASY VIEWING DAY OR NIGHT
• BUILT-IN GPS WITH ODOMETER FUNCTION (ANTENNA INCLUDED)
• ON-SCREEN DATALOG PLAYBACK FEATURES ALLOWS YOU TO REVIEW VITAL RUN INFORMATION
• EXPANDABLE STORAGE VIA USB
• USER DEFINABLE CHANNEL ALARMS AND WARNINGS
• 6X 1/4-28 MOUNTING HOLES FOR SURFACE OR FLUSH MOUNTING, WITH HIGH QUALITY HARDWARE INCLUDED!
• USB KEYBOARD AND MOUSE FUNCTIONALITY MAKES IT QUICK AND EASY TO SETUP NEW LAYOUTS

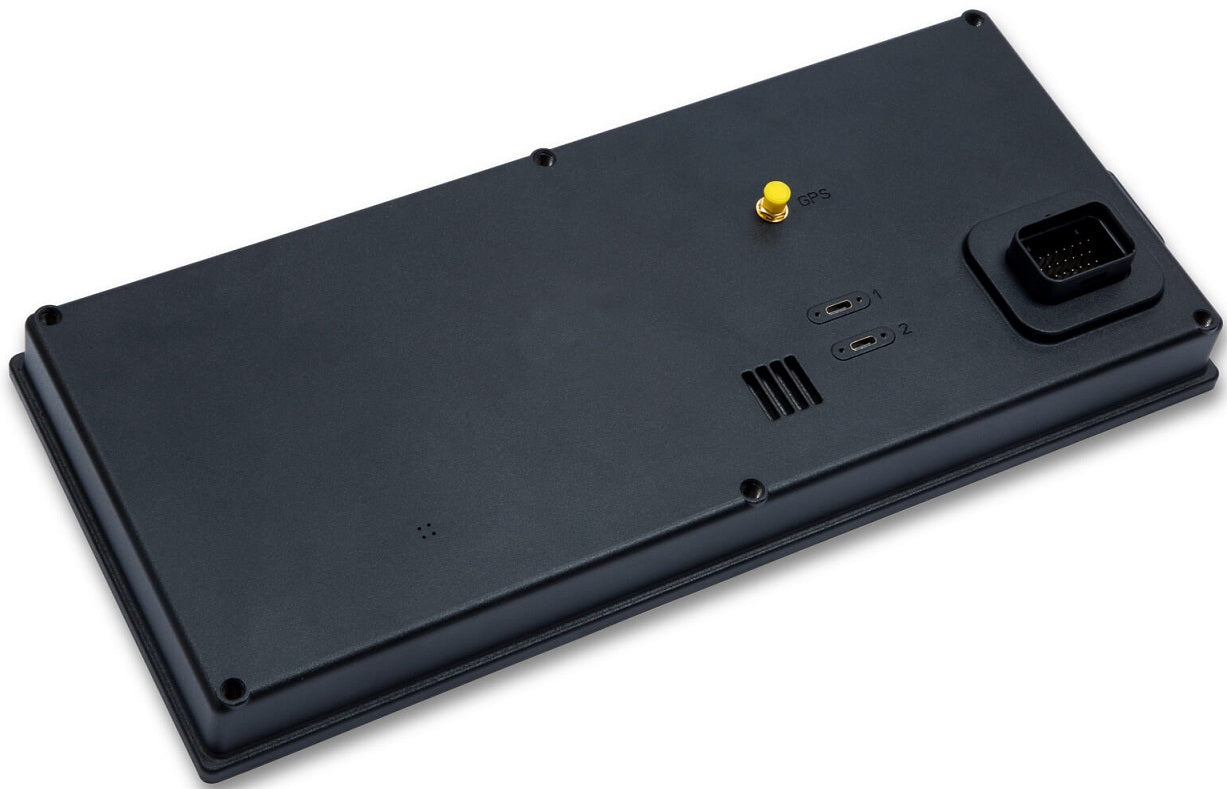

• 34 PIN WIRING HARNESS CONTAINS POWER, GROUND & CANBUS CONNECTIONS
• INPUT & OUTPUT FUNCTIONALITY FOR 13 MULTI-CONFIGURABLE INPUTS & 4 GROUND SWITCHED OUTPUTS.
• USER DEFINED ALARMS FOR ANY INPUT
• UPGRADABLE WITH FUTURE SOFTWARE ENHANCEMENTS
• VIEWING AREA IS 12.3" ON THE DIAGONAL, 11.5" WIDE BY 4.25" TALL
• DASH WEIGHT - 3.29 LBS.
• PLUG & PLAY PROGRAMMABLE SHIFT LIGHT - HOLLEY PART # 553-107

SPECS:

• BRAND: HOLLEY EFI
• DEPTH: 1.25"
• EMISSION CODE: 5
• HEIGHT: 5.81"
• PRODUCT TYPE: DIGITAL DASHES
• SCREEN SIZE: 12.3" VIEWING AREA
• SCREEN TYPE: CAPACITIVE TOUCH SCREEN
• WIDTH: 13.44"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DIGITAL DASH HERE, AND THE QUICK START GUIDE HERE.
