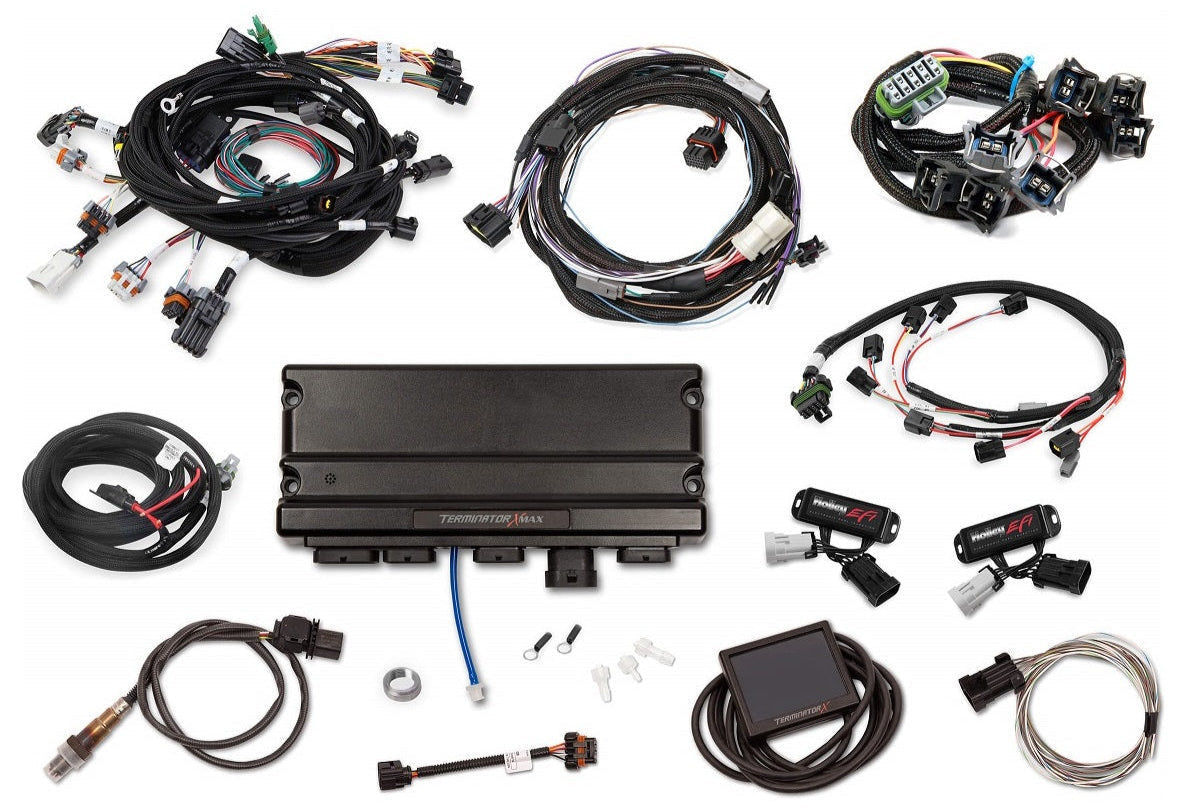

TERM X MAX,MOD 4V,STOCK COILS,EV1,TRANSMISSION

BRAND NEW HOLLEY TERMINATOR X MAX FORD MOD MOTOR 4V KIT WITH TRANSMISSION CONTROL, COMPATIBLE WITH 96-05 FORD 4 VALVE MODULAR MOTORS WITH STOCK COILS & EV1 INJECTORS & 4R70W TRANSMISSION CONTROL

THESE KITS WILL PLUG & PLAY WITH EITHER 2V OR 4V MOD MOTORS COMMONLY FOUND IN 1996-2004 MUSTANGS, 1995-2006 F150, OR 2002-2005 EXPLORERS. THESE KITS WILL WORK WITH BOTH 4.6 & 5.4L POWER PLANTS, SO NO MATTER WHAT YOUR DONOR VEHICLE WAS, WE HAVE A STANDALONE TERMINATOR X EFI SYSTEM FOR YOUR COMBINATION.

TERMINATOR X FEATURES REAL-TIME FUEL LEARN, HIGH IMPEDANCE INJECTOR DRIVERS, AN INTEGRATED 1BAR MAP SENSOR, 4 PROGRAMMABLE INPUTS/OUTPUTS. THESE ARE IDEAL FOR ELECTRIC FANS, BOOST CONTROL SOLENOIDS, PROGRESSIVE NITROUS CONTROL & MORE. IT COMES FULLY LOADED WITH BASE MAPS FOR COMMON COYOTE ENGINE COMBINATIONS. 3.5" TOUCH SCREEN LCD HANDHELD CONTAINS AN EASY TO USE CALIBRATION WIZARD & TUNING & GAUGE DISPLAY FUNCTIONS.

NOTE: TERMINATOR X ECU ARE DESIGNED TO BE MOUNTED WITH THE LED LIGHTS FACING UP.

FEATURES:

• PLUG & PLAY ENGINE CONTROL (FORD MODULAR ENGINES, 4.6L 4V, OR 5.4L 4V)
• TRANSMISSION HARNESS GIVES PLUG & PLAY CONTROL OF 1998+ FORD 4R70W OR 4R75W TRANSMISSION
• EV1 INJECTOR HARNESS INCLUDED
• HIGH IMPEDANCE INJECTOR DRIVERS POWER HOLLEY EFI & MOST STOCK INJECTORS (WILL NOT SUPPORT LOW IMPEDANCE INJECTORS)
• BOSCH LSU 4.9 WIDEBAND O2 SENSORS FOR ACCURATE READINGS & PRECISE TUNING CONTROL
• BUILT IN 1-BAR MAP (MANIFOLD ABSOLUTE PRESSURE) SENSOR INCLUDED
• VACUUM HOSE ADAPTERS INCLUDED (1/8", 1/4" & 3/16" SIZES)
• 4 INPUTS - 12V, GROUND, 5V & FREQUENCY FOR ITEMS LIKE PRESSURE SENSORS, ACTIVATION TRIGGERS, NITROUS ACTIVATION OR TRANS BRAKE
• BOOST CONTROL - BOOST VS. TIME, BOOST VS. GEAR, BOOST VS. RPM, BOOST VS. SPEED & BOOST SAFETIES
• NITROUS CONTROL - CHANNELS FOR WET/DRY, PROGRESSIVE OR NON-PROGRESSIVE, RICH/LEAN SAFETIES & TARGET CLOSED LOOP AFR (AIR/FUEL RATIO)
• ADVANCED TABLES - ( 4X 1D TABLES, 1X 1D GEAR TABLE, 4X 2D TABLE & 1X 2D GEAR TABLES) FOR NEARLY UNLIMITED TABLE CONFIG OPTIONS
• ON-BOARD DIAGNOSTIC LEDS - ECU POWER, ENGINE RUN, TPS CALIBRATION, CAM SIGNAL. IDENTIFY CRITICAL ENGINE PARAMETERS AT A GLANCE
• 3.5" TOUCHSCREEN HANDHELD INCLUDED - INTERNAL DATA-LOGGING, CUSTOM GAUGE DISPLAY & CALIBRATION WIZARD ALLOW QUICK BUILDING BASES TUNES FOR ANY DOMESTIC V8 ENGINE
• COMPACT ECU (ENGINE CONTROL UNIT) AT ONLY 7.45" X 4.1" X 1.66" THE COMPACT PACKAGING ALLOWS MOUNTING VIRTUALLY ANYWHERE (XMAX ECU = 9.6" X 4.1" X 1.66")
• FREE EFI TUNING SOFTWARE

SPECS:

• BRAND: HOLLEY EFI
• EMISSION CODE: 3
• INJECTOR CONNECTOR: JETRONIC / MINITIMER (BOSCH)
• PRODUCT TYPE: TERMINATOR X FORD MPFI KIT
• TRANSMISSION: 4R70W

YOU CAN VIEW AND DOWNLOAD THE QUICKSTART INSTRUCTIONS HERE.
