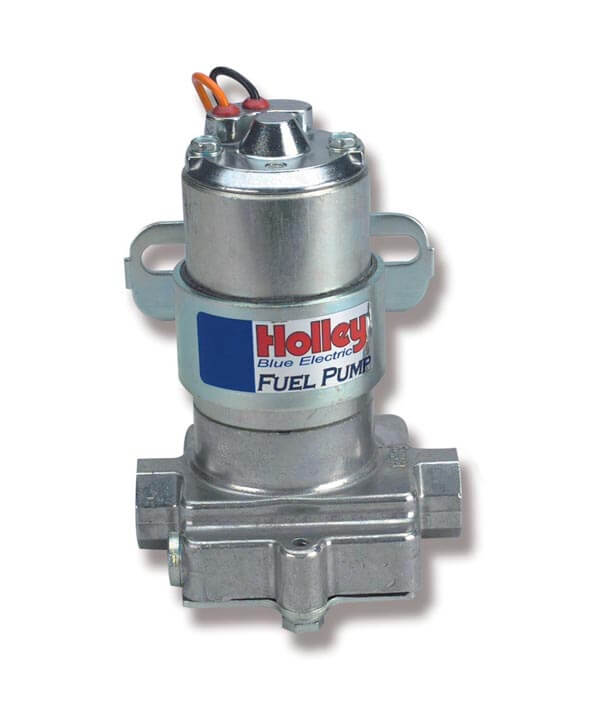

FUEL PUMP,ELECTRIC,BLUE,110GPH

BRAND NEW HOLLEY 110 GPH BLUE ELECTRIC PUMP WITHOUT REGULATOR, STREET/STRIP CARBURETED APPLICATIONS, COMPATIBLE WITH GASOLINE ONLY

THE WORLD FAMOUS RED, BLUE AND BLACK FUEL PUMPS ARE THE MOST RECOGNIZED PERFORMANCE PUMPS OF ALL TIMES. THEY HAVE BEEN POWERING RACING LEGENDS AND STREET ENTHUSIASTS ALIKE SINCE THE EARLY 1970S. THEIR TIME PROVEN ROTOR/VANE DESIGN IS KNOWN TO GET THE JOB DONE IN AN AFFORDABLE PACKAGE.

NOTE: SHOULD BE MOUNTED BELOW THE FUEL LEVEL OF THE TANK FOR A GOOD GRAVITY FEED ON THE INLET SIDE. THESE SHOULD BE USED WITH 12 VOLT SYSTEMS ONLY.

STREET/STRIP CARBURETED APPLICATIONS COMPATIBLE WITH GASOLINE ONLY.

FEATURES:

• TUMBLE POLISHED BILLET LOOK
• LOWER HOUSING CASTING DESIGNED FOR ENHANCED FUEL FLOW AND QUIET OPERATION
• MOTOR DRAWS ONLY 3 AMPS CURRENT
• 7 1/2 AMP FUSE RECOMMENDED
• IMPROVED DESIGN FOR STREET/STRIP APPLICATIONS
• NOT DESIGNED FOR USE ON AIRCRAFT OF ANY TYPE
• DISTINCTIVE BLUE LOGO
• FLOWS 110 GPH (FREE FLOW)
• MAXIMUM PRESSURE IS 14 PSI
• PROVIDES CONSTANT FUEL FLOW WITH NO PULSATION
• HAS EXTERNALLY ACCESSIBLE PRESSURE RELIEF VALVE (MAX 14 PSI)
• ROTOR/VANE PUMP DESIGN IS MORE TOLERANT OF CONTAMINATED FUELS
• WEIGHS ONLY 3 LBS
• INCLUDES MOUNTING BRACKET
• REPAIR KITS ARE READILY AVAILABLE
• CAN BE SERVICED FROM THE PUMP END
• NOT COMPATIBLE WITH ALCOHOL OR METHANOL FUELS
• USE OF SAFETY SHUT-OFF SWITCH, P/N 12-810, STRONGLY RECOMMENDED
• NOT DESIGNED OR RECOMMENDED FOR USE WITH FUEL INJECTION SYSTEMS
• FUEL PRESSURE REGULATOR NOT INCLUDED

SPECS:

• APPLICATION: UNIVERSAL
• BRACKET COLOR: SILVER
• EMISSION CODE: 5
• FREE FLOW GPH: 110
• FREE FLOW LPH: 416
• FUEL SYSTEM: CARBURETED
• INLET SIZE: 3/8 INCH NPT
• OUTLET SIZE: 3/8 INCH NPT
• MATERIAL: ALUMINUM
• MOTOR FINISH: SILVER
• PRODUCT TYPE: FUEL PUMP
• PUMP BODY COLOR: SILVER

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS FUEL PUMP HERE.
