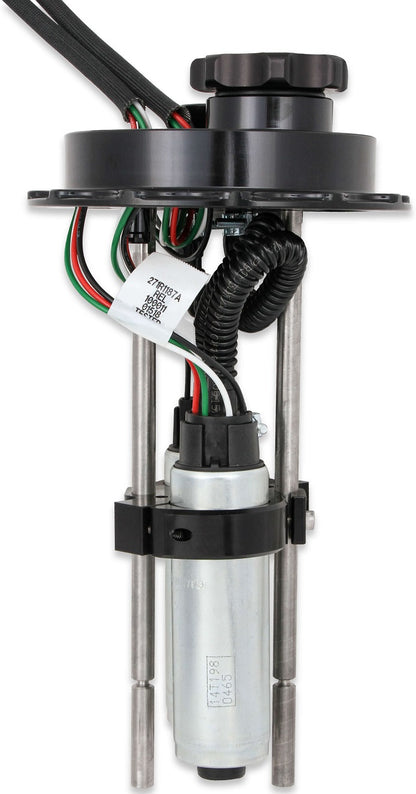

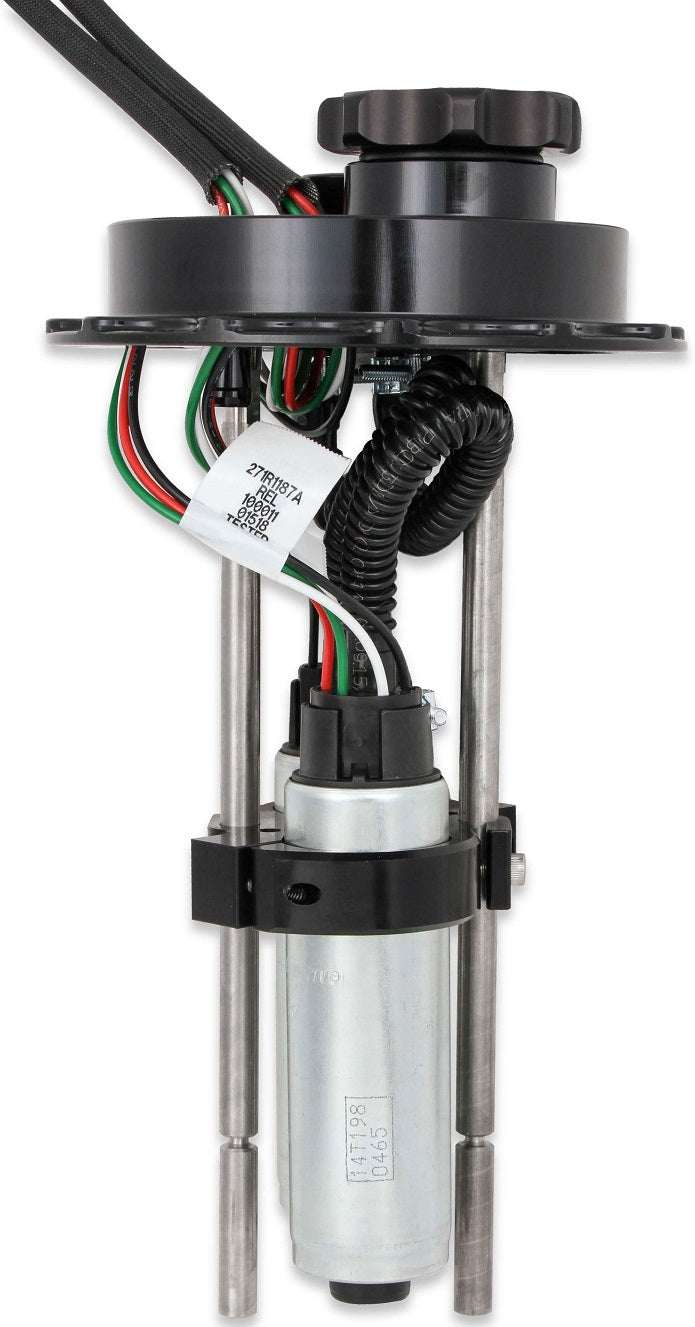

FUEL PUMP,ELECTRIC,12-BOLT FLANGE,DUAL

BRAND NEW HOLLEY FUEL CELL EFI PUMP MODULE ASSEMBLY, 12 BOLT FLANGE WITH VR SERIES BRUSHLESS FUEL PUMPS

HOLLEY FUEL CELL EFI PUMP MODULES WITH DUAL VR SERIES BRUSHLESS FUEL PUMPS. THESE DROP IN MODULES COME WITH TWO CONTROLLERS AND HARNESSES TO GIVE YOU VR FUEL PUMP POWER INSIDE YOUR FUEL CELL. WHILE THE NAME INCLUDES EFI, THESE MODULES CAN BE USED AS AN UPGRADE FOR CARBURETED SYSTEMS AS WELL WITH THE PROPER REGULATOR.

DESIGNED TO WORK ON HIGH BOOSTED RACE CARS AS WELL AS YOUR DAILY DRIVEN WEEKEND ENDURANCE CAR, THESE PUMPS WORK WITH GASOLINE, METHANOL & E-85 (COMPATIBLE FOR METHANOL & E85 FOR COMPETITIVE DRAG RACE USE ONLY- WHEN DRAINING & FLUSHING AFTER EACH RACE EVENT) & CAN MAINTAIN PRESSURES OF 130 PSI & UP TO 335 GPH FLOW. FUELED BY TI AUTOMOTIVE.

NOTE: ASSEMBLY FITS COMMON RJS, JAZ, SUMMIT, JEGS, RCI, SPEEDMASTER & SPEEDWAY FUEL CELLS.

FEATURES:

• CAPABLE OF 130 PSI WHILE PROVIDING SIGNIFICANT FLOW FOR FORCED INDUCTION APPLICATIONS WHERE BELT DRIVEN PUMPS ARE NORMALLY USED.
• UNLIKE OTHER PUMPS, THE VR SERIES ARE BUILT FOR CONTINUOUS DUTY IF NEEDED.
• BILLET ALUMINUM CONSTRUCTION FOR DURABILITY & GOOD LOOKS

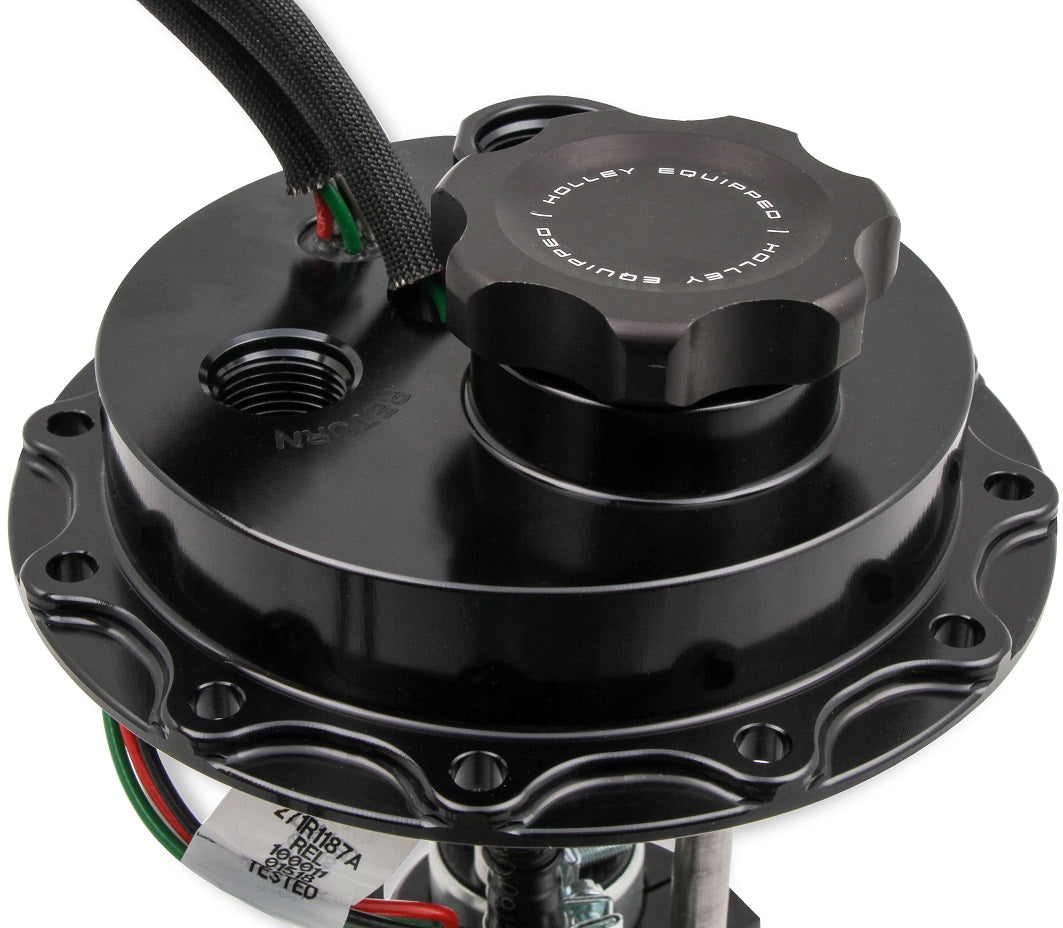

• DESIGNED TO DROP RIGHT INTO YOUR EXISTING 12 BOLT FLANGE FUEL CELL
• HIGH FLOW & HIGH PRESSURE WITH LOW AMPERAGE DRAW
• CAN BE FULLY SUBMERGED IN THE FUEL CELL OR CHASSIS MOUNTED
• MAXIMUM AMP DRAW OF 38 AMPS FOR THE VR2

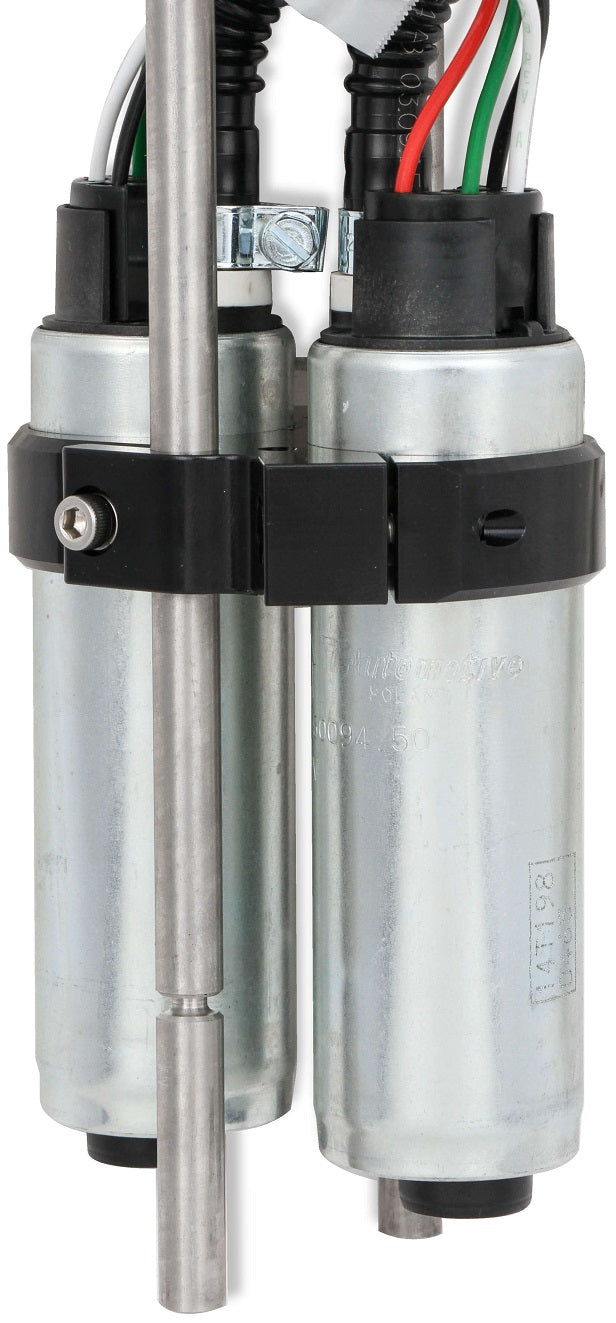

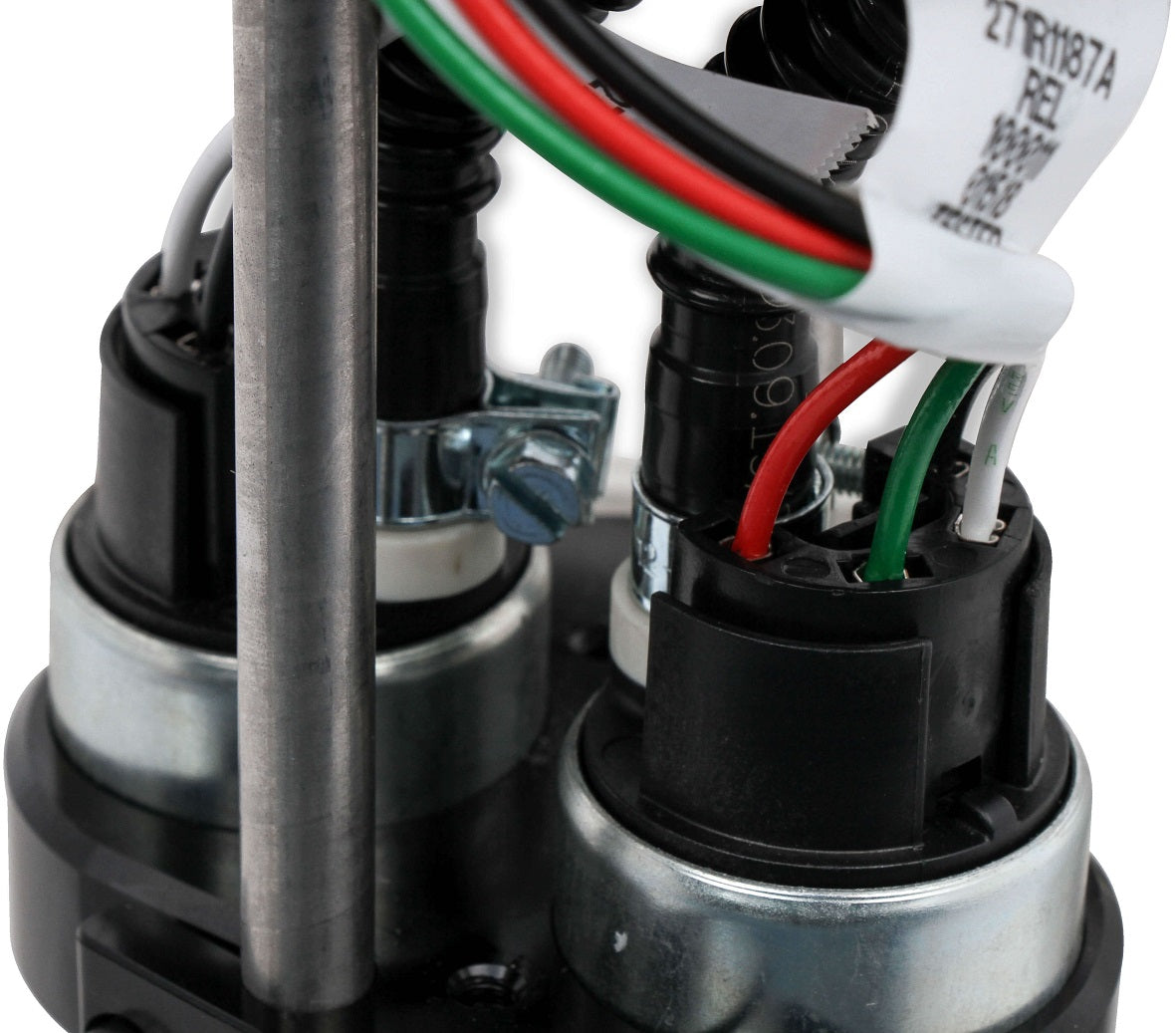

• MODULES INCLUDE DUAL VR SERIES BRUSHLESS FUEL PUMPS WITH TWO STEP CONTROLLERS & HARNESSES.
OVERALL PUMP DIMENSIONS: 9.5" L; 4.75" W; 2.75" H

SPECS:

• APPLICATION: UNIVERSAL
• FLANGE STYLE: 12 BOLT
• FREE FLOW GPH: 335 @ 13.8 VOLTS
• FREE FLOW LPH: DUAL 644
• FUEL SYSTEM: CARBURETED/EFI
• FUEL TYPE: E85/GAS/METHANOL
• INLET SIZE: 8 AN O-RING
• MATERIAL: ALUMINUM
• OUTLET SIZE: 10 AN O-RING
• PRODUCT TYPE: FUEL PUMP
• PUMP BODY COLOR: BLACK
• SINGLE OR DUAL PUMP: DUAL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL CELL PUMP HERE.
