RADIATOR,ALUM,3 ROW,68-72 A-,L

BRAND NEW FROSTBITE ALUMINUM RADIATOR, 3 ROW, DUAL PASS FLOW STYLE, 2.20" CORE THICKNESS, COMPATIBLE WITH 1968-72 GM A BODY & 73-87 CHEVY/GMC C10 TRUCK WITH GM LS SWAP

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRA�SS UNITS.

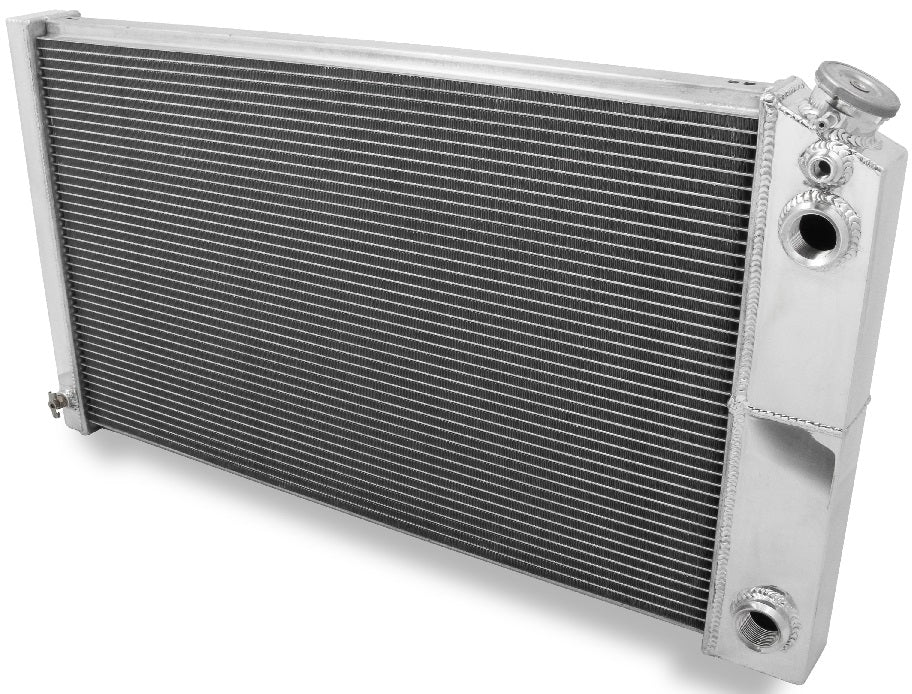

NOTE: INLET & OUTLET HOSE ENDS SHOW ON PHOTO FOR REPRESENTATIVE PURPOSES. FITTINGS MUST BE PURCHASED SEPARATELY.

COMPATIBLE WITH:

• PONTIAC:
• 1968-1972 LEMANS
• 1968-1972 GTO
• 1968-1972 TEMPEST
• 1968-1972 ACADIAN
• CHEVROLET:
• 1975-1986 C10
• 1968-1972 CHEVELLE
• 1968-1972 EL CAMINO
• 1982-1987 C15
• 1973-1974 C10 PICKUP
• BUICK:
• 1970-1972 GS
• 1968-1969 GS 350
• 1968-1969 GS 400
• 1970-1972 GS 455
• 1968-1972 SKYLARK
• 1968-1969 SPECIAL
• 1968-1972 SPORTWAGON
• GMC:
• 1979-1986 C1500
• 1975-1978 C15
• 1973-1974 C15/C1500 PICKUP
• 1971-1972 SPRINT
• 1987 R1500
• OLDSMOBILE:
• 1968-1972 VISTA CRUISER
• 1968-1972 CUTLASS
• 1968-1972 CUTLASS SUPREME
• 1968-1972 F85
• 1968-1971 442

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS & TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK & OEM STYLE BRA�SS PETCOCK
• MORE COOLING SURFACE AREA (16 FINS PER INCH) FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• APPLICATIONS SUPPORTING UP TO 1000+ HORSEPOWER

SPECS:

• # OF PASSES: DUAL
• BRAND: FROSTBITE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 17" X 28 1/4"
• CORE THICKNESS: 2.20"
• FLOW STYLE: DUAL PASS
• HOSE LOCATION INLET: PASSENGER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: AN BUNGS
• MOUNTING TYPE: SADDLE MOUNT
• OUTLET SIZE: AN BUNGS
• OVERALL DIMENSION: 18-1/2" X 33"
• PRODUCT TYPE: RADIATOR
• ROWS: 3

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS RADIATOR HERE.
