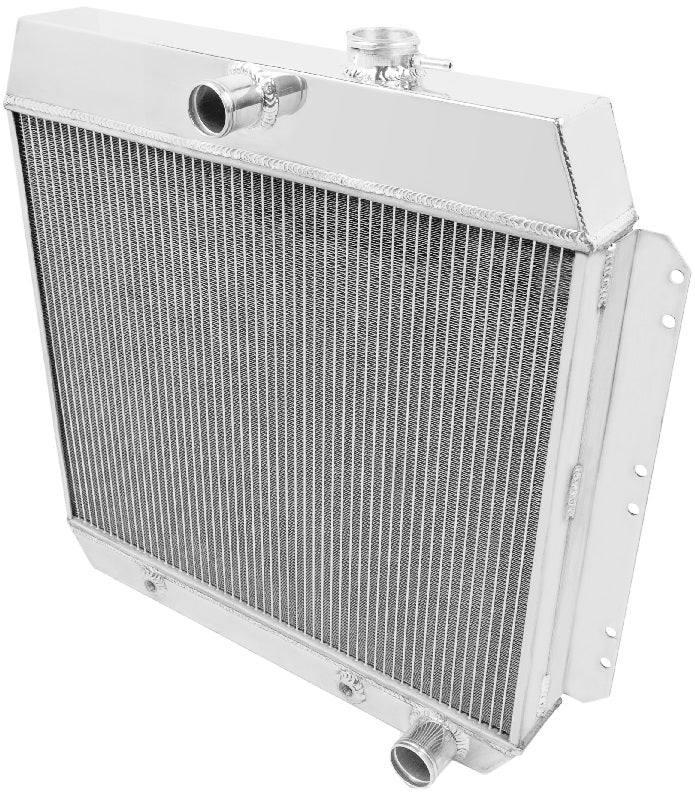

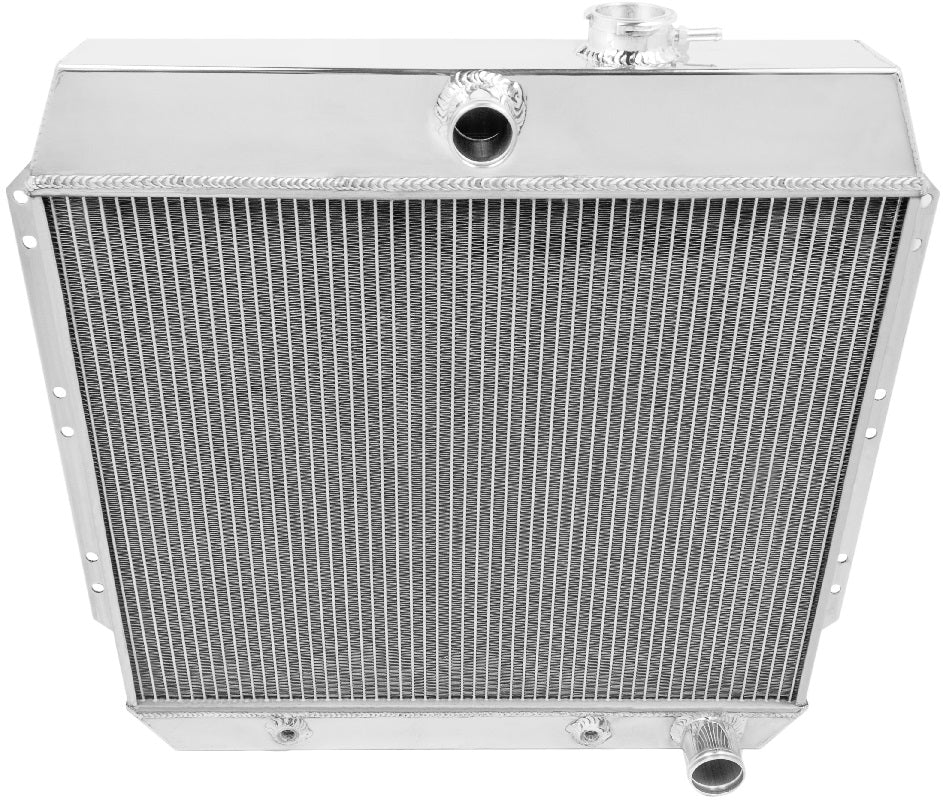

RADIATOR,ALUM,4 ROW,49-54 CHEVROLET

BRAND NEW FROSTBITE ALUMINUM RADIATOR, 4 ROW, DOWN FLOW STYLE, 2.76" CORE THICKNESS, COMPATIBLE WITH 1949-1954 CHEVY PASSENGER VEHICLES

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRA�SS UNITS.

NOTE: FROSTBITE 3 & 4 ROW RADIATORS WILL BE THICKER THAN STOCK AND CAN EXTEND INTO ENGINE BAY FURTHER INTERFERING WITH SOME STOCK FAN/CLUTCH APPLICATIONS. EXISTING COOLING FAN MODIFICATIONS MAY BE REQUIRED DURING INSTALLATION. ELECTRIC FAN AND SHROUD OPTIONS ARE AVAILABLE TO REMOVE STOCK CLUTCH/FAN.

COMPATIBLE WITH:

• CHEVY:
• 1950-1954 BEL-AIR
• 1949-1954 SEDAN DELIVERY
• 1953-1954 TWO-TEN SERIES

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS & TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK & OEM STYLE BRA�SS PETCOCK
• MORE COOLING SURFACE AREA (16 FINS PER INCH) FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• APPLICATIONS SUPPORTING UP TO 1000+ HORSEPOWER

SPECS:

• # OF PASSES: SINGLE
• BRAND: FROSTBITE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 17-1/8" X 21-1/2"
• CORE THICKNESS: 2.76"
• FLOW STYLE: DOWN FLOW
• HOSE LOCATION INLET: CENTER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: 1-1/2"
• MOUNTING TYPE: BRACKET MOUNT
• OUTLET SIZE: 1-3/4"
• OVERALL DIMENSION: 23-3/4" X 25-1/8"
• PRODUCT TYPE: RADIATOR
• ROWS: 4
• TRANSMISSION OIL COOLER: 1/2-20 STRAIGHT THREAD G 1/4

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS RADIATOR HERE.
