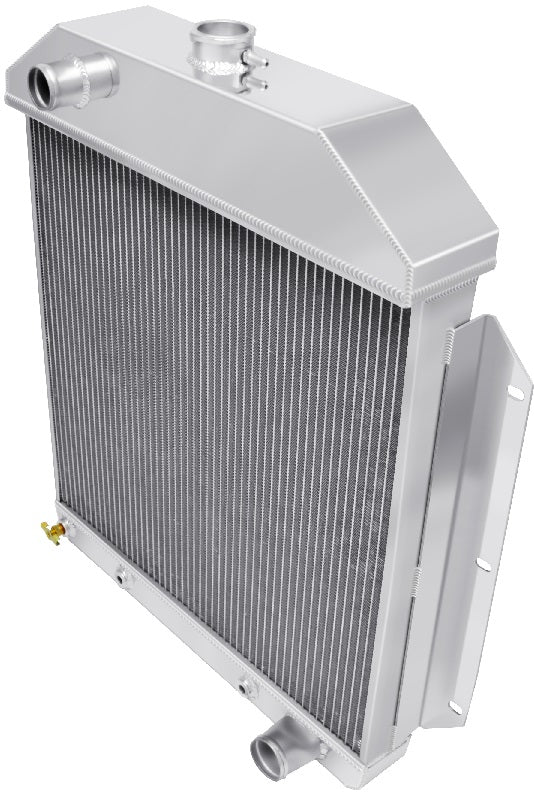

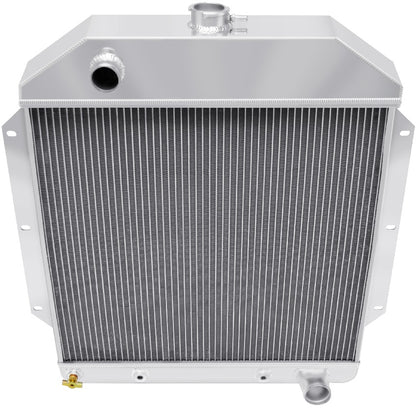

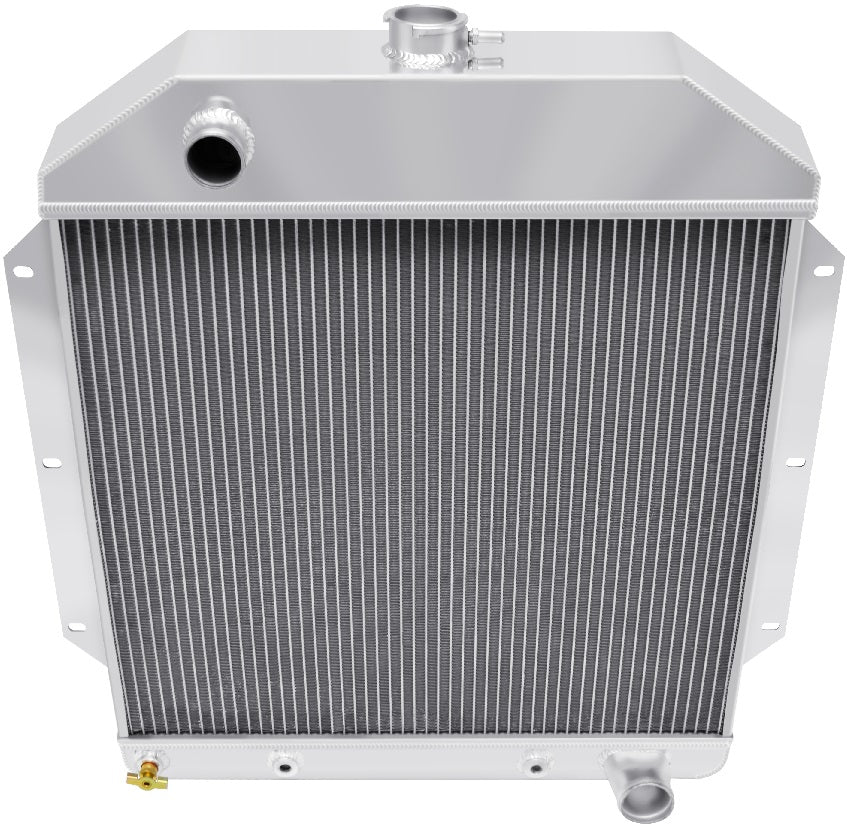

RADIATOR,ALUM,3 ROW,49-53 FORD,CHEVY V-8

BRAND NEW FROSTBITE ALUMINUM RADIATOR, 3 ROW, DOWN FLOW STYLE, 2.20" CORE THICKNESS, COMPATIBLE WITH 1949-1953 FORD PASSENGER VEHICLES WITH CHEVY V8

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRA�SS UNITS.

NOTE: FROSTBITE 3 & 4 ROW RADIATORS WILL BE THICKER THAN STOCK AND CAN EXTEND INTO ENGINE BAY FURTHER INTERFERING WITH SOME STOCK FAN/CLUTCH APPLICATIONS. EXISTING COOLING FAN MODIFICATIONS MAY BE REQUIRED DURING INSTALLATION. ELECTRIC FAN AND SHROUD OPTIONS ARE AVAILABLE TO REMOVE STOCK CLUTCH/FAN.

COMPATIBLE WITH:

• FORD:
• 1953 CLUB WITH CHEVY V8
• 1950-1953 COUNTRY SEDAN WITH CHEVY V8
• 1950-1953 COUNTRY SQUIRE WITH CHEVY V8
• 1950-1953 CRESTLINE WITH CHEVY V8
• 1949-1952 CUSTOM WITH CHEVY V8
• 1952-1953 CUSTOMLINE WITH CHEVY V8
• 1949-1951 DELUXE WITH CHEVY V8
• 1952-1953 MAINLINE WITH CHEVY V8
• 1950-1953 RANCH WAGON WITH CHEVY V8
• 1952-1953 SUNLINER WITH CHEVY V8
• 1951-1953 VICTORIA WITH CHEVY V8

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS & TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK & OEM STYLE BRA�SS PETCOCK
• MORE COOLING SURFACE AREA (16 FINS PER INCH) FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• APPLICATIONS SUPPORTING UP TO 1000+ HORSEPOWER

SPECS:

• # OF PASSES: SINGLE
• BRAND: FROSTBITE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 19-3/8" X 20-1/2"
• CORE THICKNESS: 2.20"
• FLOW STYLE: DOWN FLOW
• HOSE LOCATION INLET: DRIVER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: 1-1/2"
• MOUNTING TYPE: BRACKET MOUNT
• OUTLET SIZE: 1-3/4"
• OVERALL DIMENSION: 26-3/4" X 24-3/4"
• PRODUCT TYPE: RADIATOR
• ROWS: 2

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS RADIATOR HERE.
