HEADER,SBF,1 1/2,65-70 PASSENGER,LONG,3,BLACK

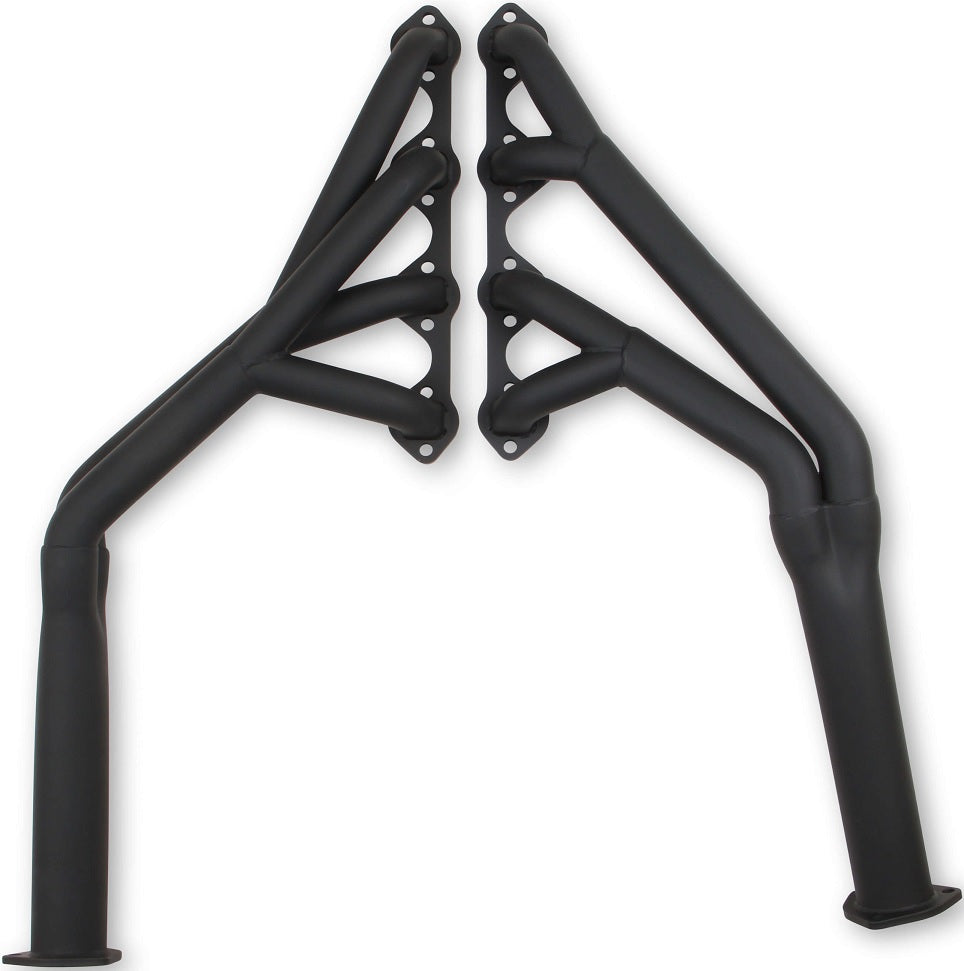

BRAND NEW PAIR OF FLOWTECH TRI-Y HEADERS, PAINTED BLACK FINISH, 2-1/2" COLLECTORS, 1-1/2" PRIMARY TUBES, 260-289-302 V8, COMPATIBLE WITH 1965-1970 MUSTANG

FLOWTECH HEADERS ARE THE PERFECT COMBINATION OF QUALITY AND VALUE. THESE TRI-Y STYLE HEADERS FIT THE POPULAR 65-70 FORD 260/289/302 V8 ENGINES. THESE TRI-Y STYLE HEADERS WERE ORIGINALLY DESIGNED FOR 1965-1966 SHELBY GT350 MUSTANGS WITH A 289HIPO V8, 4-SPEED MANUAL TRANSMISSION, AND MANUAL STEERING.

NOTE: ATTEMPT TO INSTALL IN ANY OTHER APPLICATION WILL REQUIRE SOME MODIFICATION

NOTE: THESE HEADERS WILL NOT FIT VEHICLES UTILIZING AN FMX, C-6, OR AOD AUTOMATIC TRANSMISSION

NOTE: MAY NOT FIT SOME VEHICLES UTILIZING A C-4 TRANSMISSION WITH 164-TOOTH BELLHOUSING. THOSE USING A 157-TOOTH BELLHOUSING WITH REQUIRE SOME CLEARANCING ON RH SIDE OF BELL

NOTE: WILL NOT WORK ON 351W MOTORS DUE TO TALLER AND WIDER ENGINE DIMENSIONS

NOTE: WILL NOT WORK WITH GT40-P CYLINDER HEADS

NOTE: HEADERS WILL WORK WITH 10" OR 10.5" CLUTCH, USE OF A 1968-NEWER BELLHOUSING WILL REQUIRE CLEARANCE ON LH SIDE OF BELLHOUSING

NOTE: 1969-1970 MODEL VEHICLES MAY REQUIRE ADDITIONAL CLEARANCE FOR STEERING BOX

NOTE: USE OF THESE HEADERS ON A NON-HIPO MODEL WILL REQUIRE EXTRA CLEARANCE FOR CLUTCH LINKAGE

COMPATIBLE WITH:

• FORD:
• 1966-1970 BRONCO
• 1969-1970 E-100 ECONOLINE
• 1969-1970 F-100
• 1969-1970 F-250
• 1965-1970 FALCON
• 1968-1970 GALAXIE 500
• 1965-1967 GALAXIE
• 1965-1969 FAIRLANE
• 1966-1970 LTD
• 1965-1970 MUSTANG
• 1968-1970 TORINO
• 1965-1970 RANCHERO
• 1965-1970 CUSTOM

FEATURES:

• MANDREL-BENT TUBES PROVIDE CONSISTENT TUBING DIAMETERS FOR SMOOTH FLOW AND INCREASES THE CYLINDER SCAVENGING EFFECT AND IMPROVES ENGINE BREATHING
• HEAVY DUTY 16-GAUGE TUBING FOR INCREASED STRENGTH AND DURABILITY
• 1-1/2" DIAMETER PRIMARY TUBES, 1-3/4" DIAMETER SECONDARY TUBES FOR INCREASED EXHAUST FLOW INCREASING PERFORMANCE AND IMPROVING THROTTLE RESPONSE

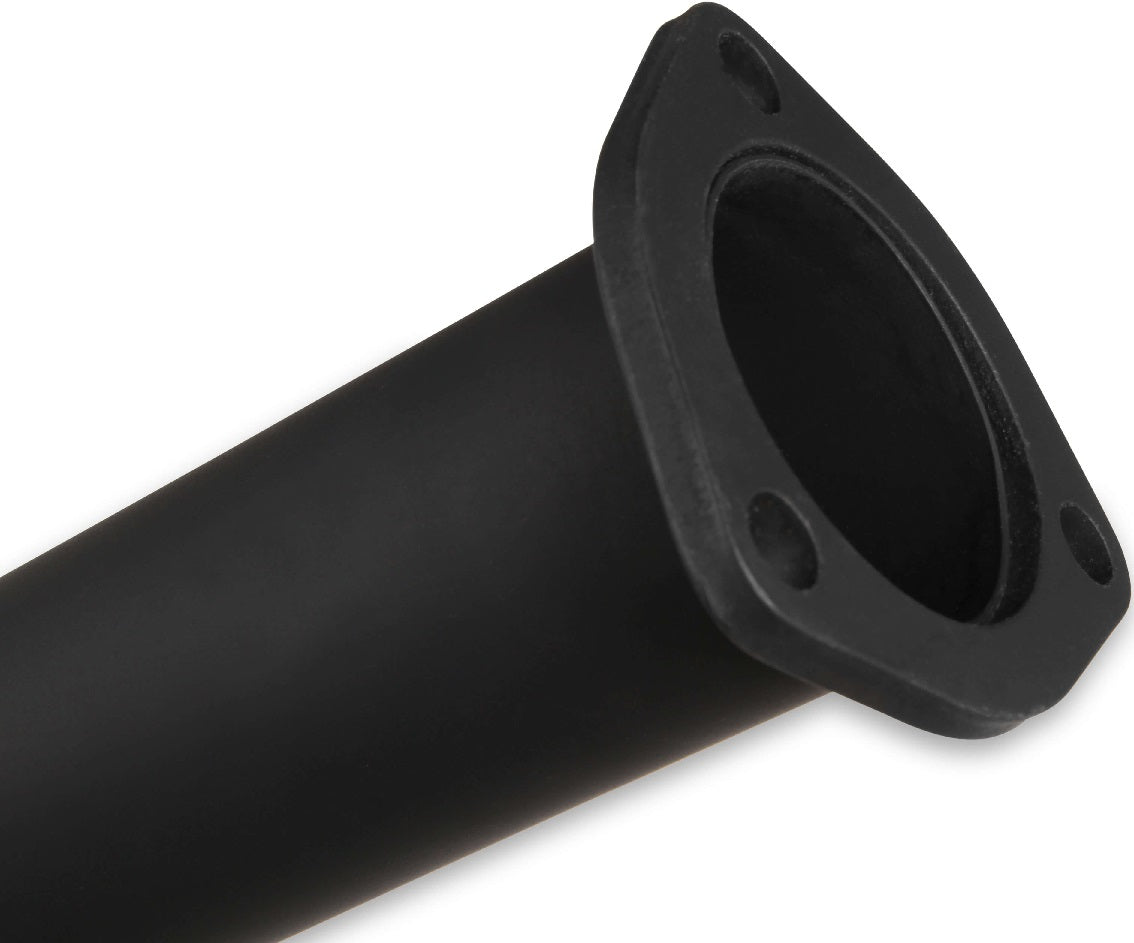

• 2-1/2" COLLECTOR FOR MAXIMUM STRENGTH AND EXHAUST FLOW

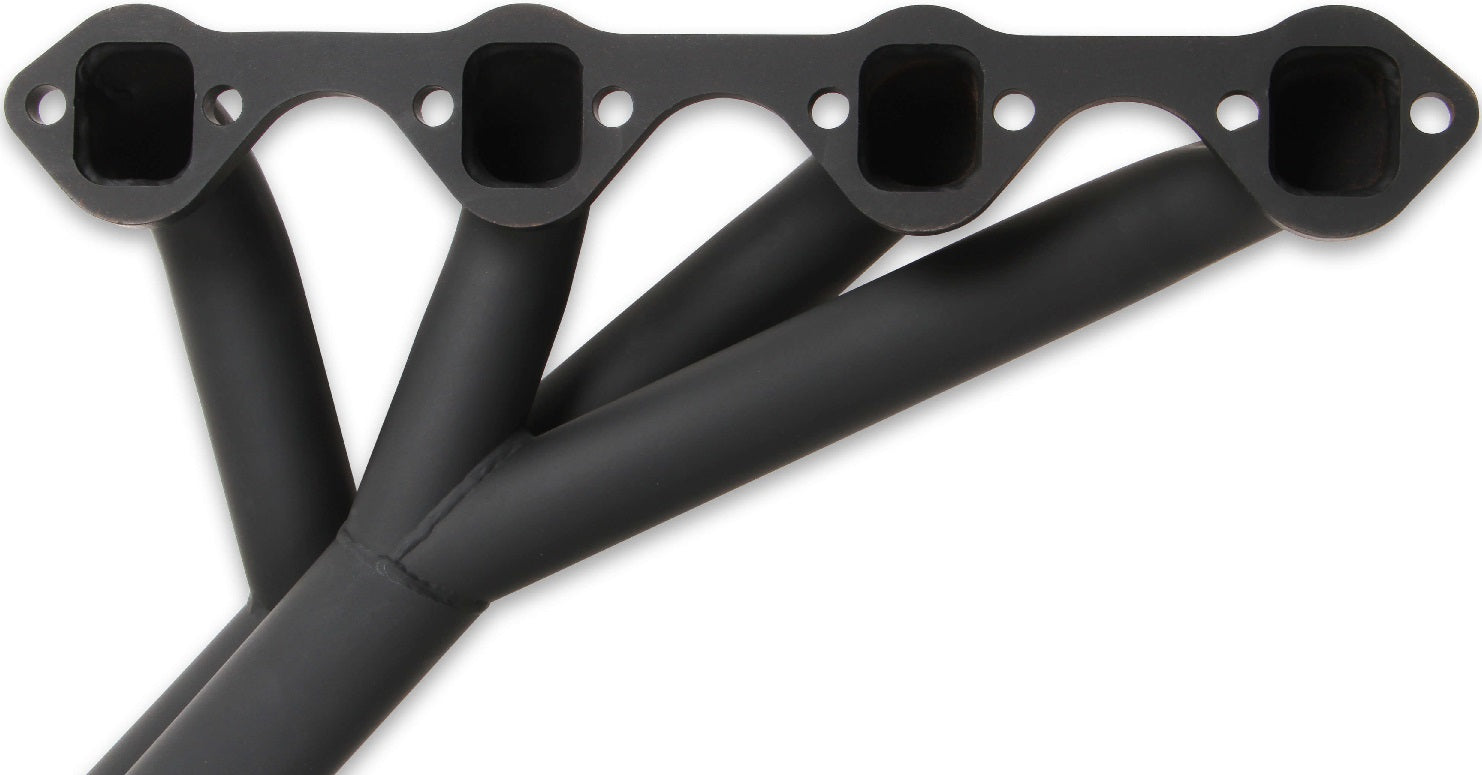

• 3/8" THICK HEADER FLANGE FOR A LEAK-FREE SEAL AND MAXIMUM STRENGTH

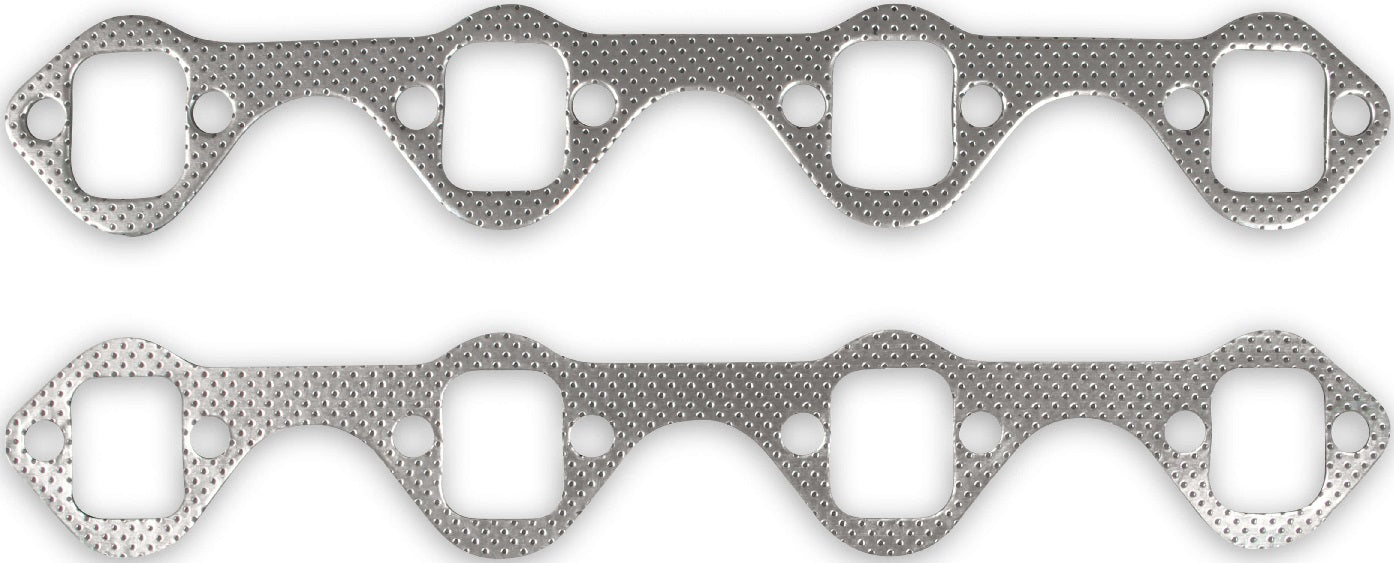

• PREMIUM ALUMINUM HEADER GASKETS INCLUDED
• HIGH HEAT RESISTANT BLACK PAINT FINISH

SPECS:

• BRAND: FLOWTECH
• COLLECTOR DIAMETER: 2.50"
• EMISSION CODE: 4
• HEADER FINISH: BLACK PAINT
• HEADER STYLE: TRI-Y
• MATERIAL: MILD STEEL
• PRIMARY TUBE DIAMETER: 1-1/2"
• PRODUCT TYPE: HEADERS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
