HEADER,SBC,1 5/8 TIGHT,LS1 & 6,2 1/2,CHROME

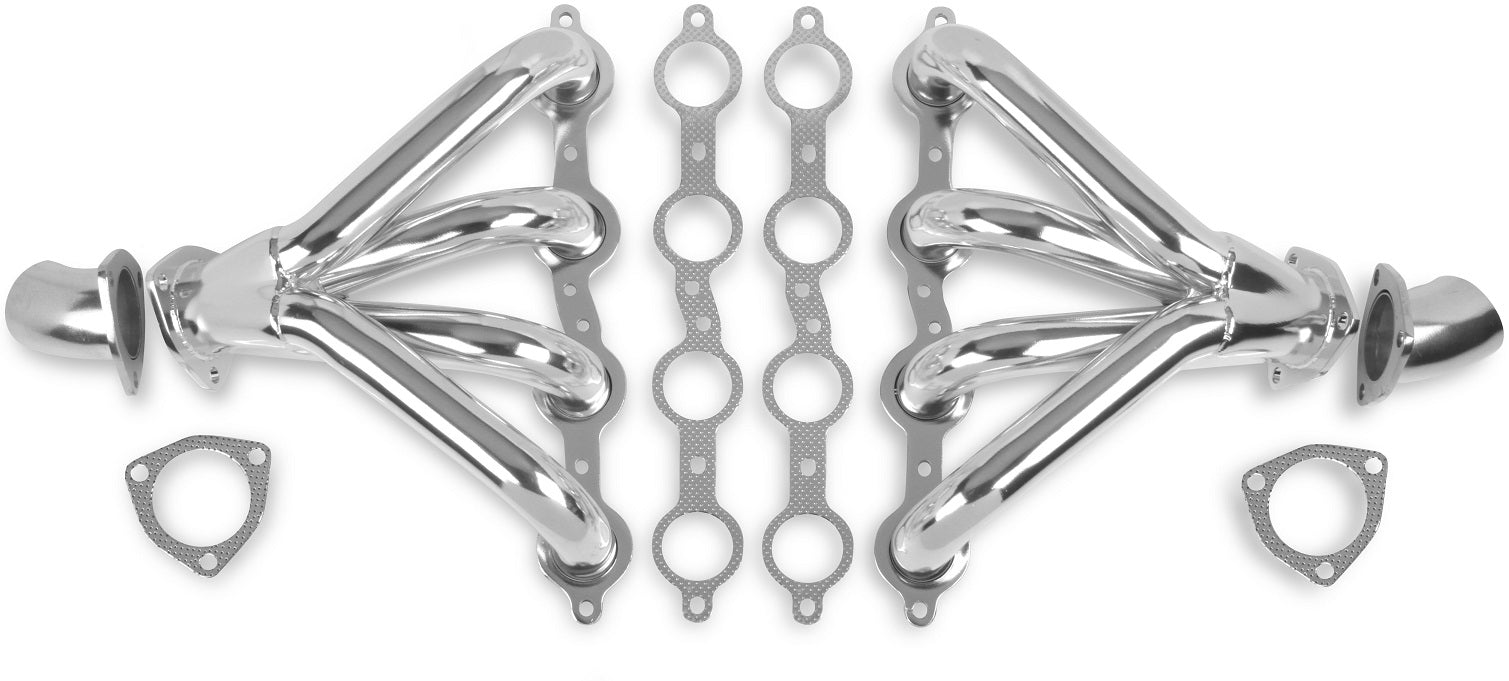

BRAND NEW FLOWTECH TIGHT FIT BLOCK HUGGER HEADERS, CHROME FINISH, 2-1/2" COLLECTORS, 1-5/8" TUBES, COMPATIBLE WITH GM SMALL BLOCK GEN III/IV LS ENGINES

FLOWTECH HEADERS ARE THE PERFECT COMBINATION OF QUALITY AND VALUE. THIS BLOCK HUGGER HЕADER COMPATIBLE WITH ALL POPULAR HOT RODS WITH THE POPULAR CHEVY LS MOTORS. THIS HЕADER IS COATED WITH A HIGH LUSTER SHOW QUALITY CHROME FOR A CLASSIC LOOK.

FEATURES:

• TIGHT FIT BLOCK HUGGER DESIGN FOR POPULAR HOT RODS POWERED BY THE POPULAR CHEVY LS MOTORS
• MANDREL-BENT TUBES PROVIDE CONSISTENT TUBING DIAMETERS FOR SMOOTH FLOW AND INCREASED EXHAUST VELOCITY
• HEAVY DUTY 16-GAUGE TUBING FOR INCREASED STRENGTH AND DURABILITY
• SMOOTH TRANSITION, 1-5/8" DIAMETER PRIMARY TUBES ARE USED FOR INCREASED EXHAUST FLOW INCREASING PERFORMANCE AND IMPROVING THROTTLE RESPONSE
• TIG WELDED 2-1/2" COLLECTOR FOR MAXIMUM STRENGTH

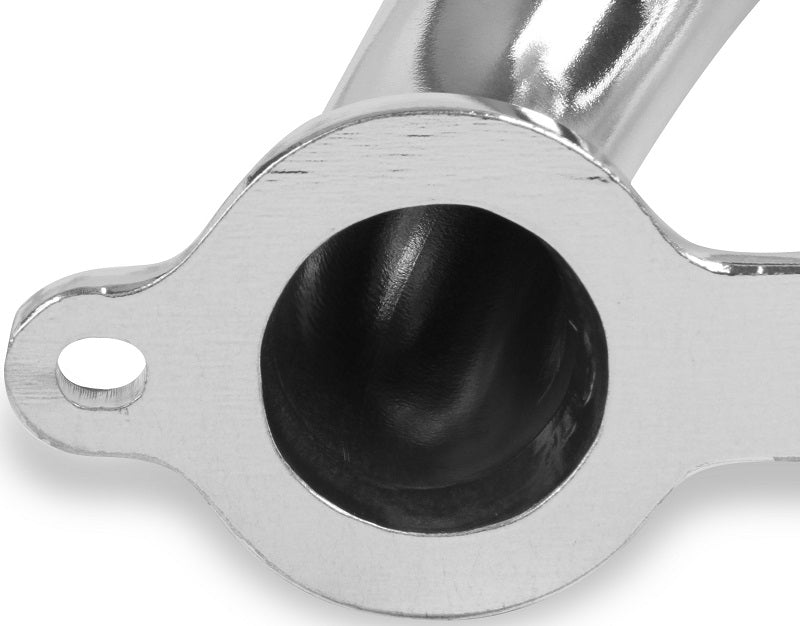

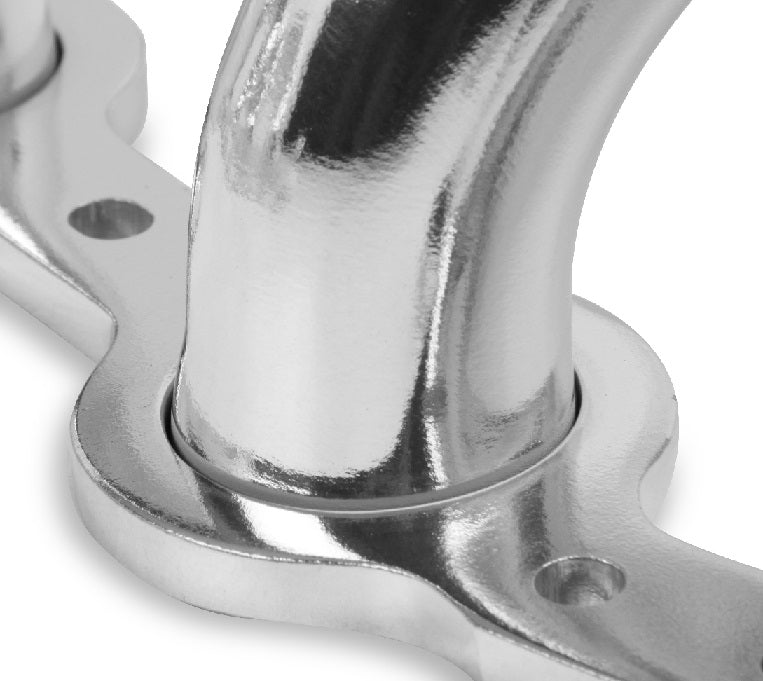

• MACHINED 3/8" HЕADER FLANGE FOR A LEAK-FREE SEAL AND MAXIMUM STRENGTH
• PREMIUM ALUMINUM HЕADER GASKETS INCLUDED

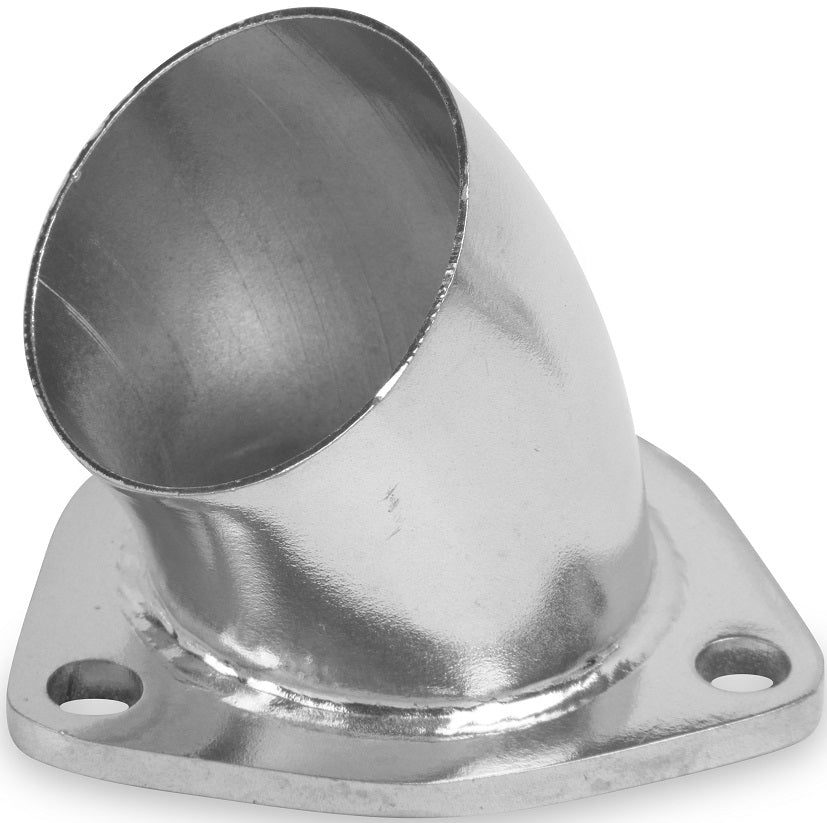

• ADAPTER TUBES ARE SUPPLIED FOR EASY EXHAUST CONNECTION THIS HЕADER IS COATED IN HIGH LUSTER SHOW QUALITY CHROME FOR A CLASSIC LOOK

SPECS:

• BOLT SIZE: M8 X 1.25 X 25MM
• BRAND: FLOWTECH
• COLLECTOR DIAMETER: 2.50 INCH
• ENGINE: GM SMALL BLOCK GEN III/IV (LS BASED)
• FLANGE SIZE: 3/8 INCH
• HЕADER FINISH: CHROME
• HЕADER STYLE: BLOCK HUGGER
• PRIMARY TUBE DIAMETER: 1-5/8 INCH
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: MILD STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
