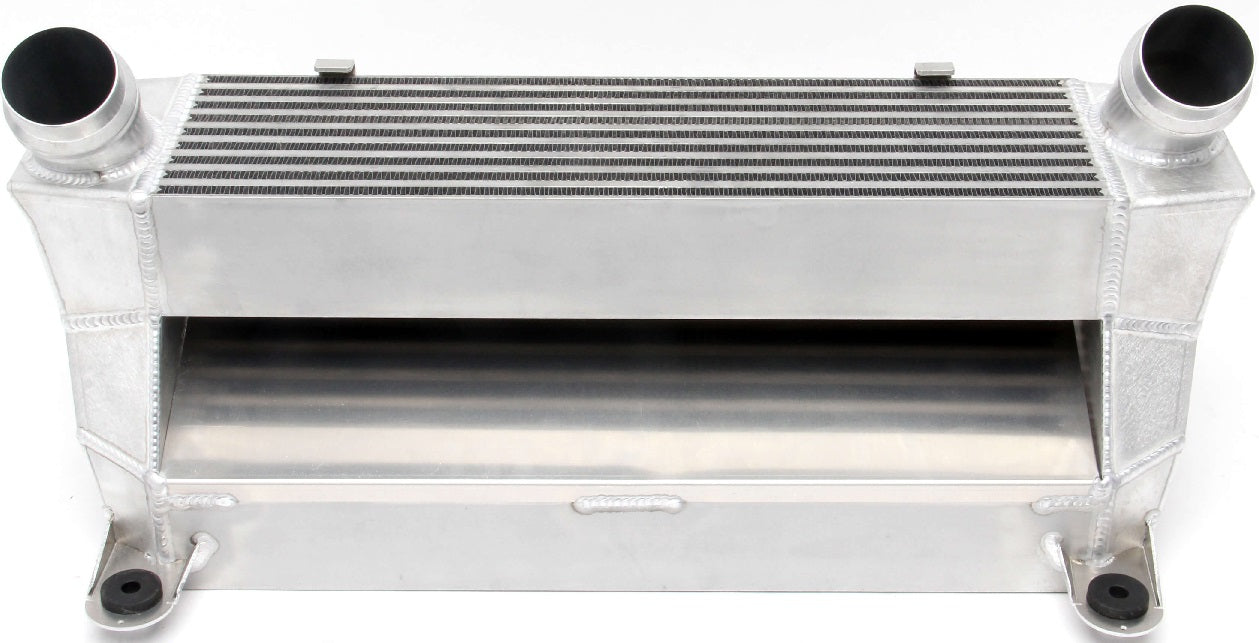

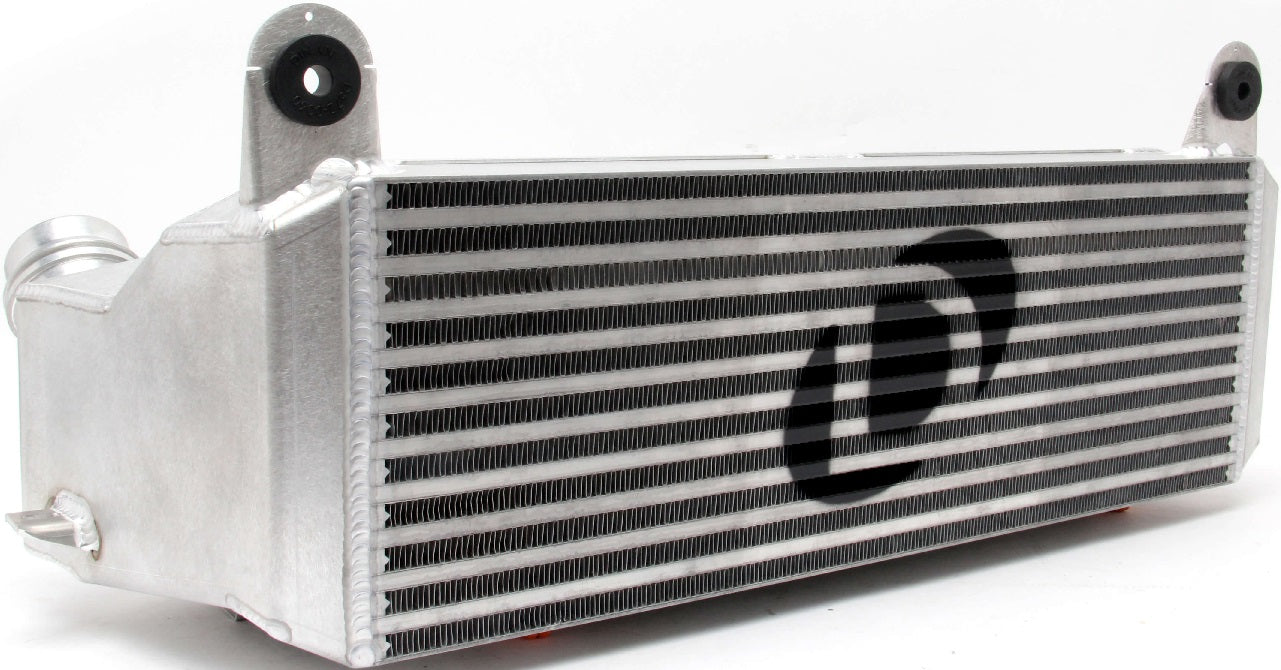

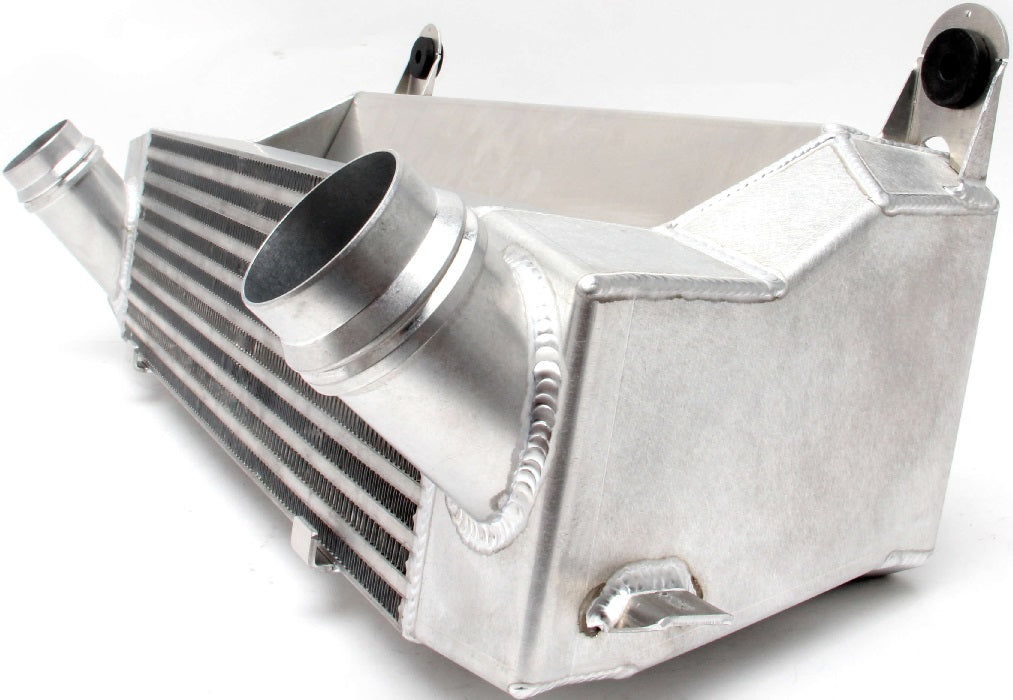

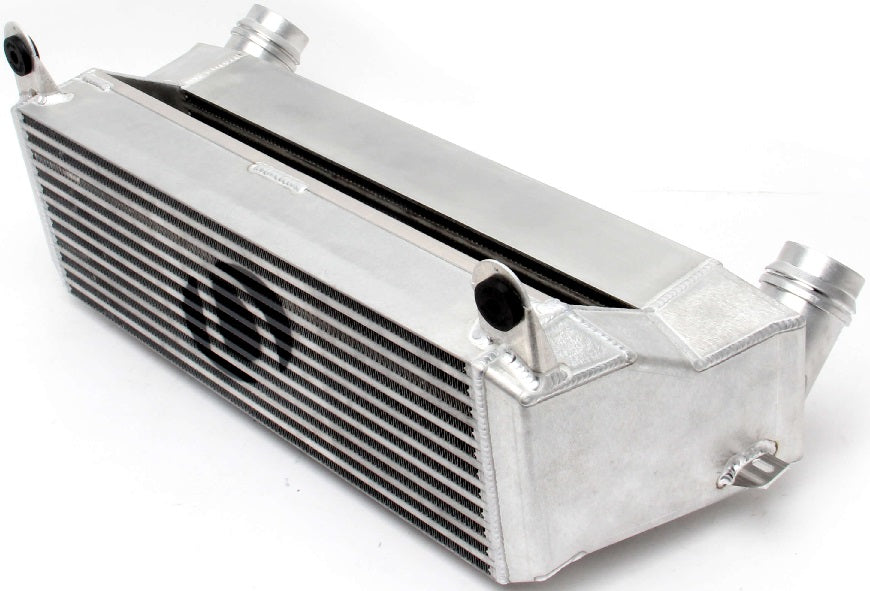

INTERCOOLER,12-16 BMW 2,3,4-SERIES

BRAND NEW DINAN HIGH PERFORMANCE DUAL CORE INTERCOOLER, AIR TO AIR, COMPATIBLE WITH 2014-2016 BMW 228I

GREATER POWER GAINS ARE ACHIEVED WITH A LARGER HIGH-PERFORMANCE INTERCOOLER. THE DINAN DUAL CORE INTERCOOLER PROVIDES A 240% INCREASE IN FACE AREA ALONG WITH AN EQUALLY IMPRESSIVE INCREASE IN VOLUME, SUBSTANTIALLY REDUCING THE PRESSURE DROP TO 0.8 PSI, AS WELL AS PROVIDING FOR MORE EFFICIENT HEAT EXCHANGE & MORE CONSISTENT OUTPUT POWER. DINAN UNIQUE DUAL-CORE DESIGN ALLOWS 2 SEPARATE CORES TO BE WORKING IN CONJUNCTION WITH ONE ANOTHER AT ALL TIMES.

THIS DOUBLING OF RESOURCES IS DIRECTLY RESPONSIBLE FOR A 60% IMPROVEMENT IN THE DELTA FROM CHARGE AIR TEMPERATURE TO AMBIENT TEMPERATURE. "COOL DOWN" TIME IS ALSO REDUCED, ENABLING THE CARS TO PRODUCE FULL POWER UNDER VARYING DRIVING CONDITIONS SUCH AS STOP & GO TRAFFIC. THIS LEAVES THE CHANCES OF BEING SUSCEPTIBLE TO HEAT SOAK NEARLY A THING OF THE PAST.

THE SYSTEM HAS BEEN ENGINEERED TO BE AS DIRECT A REPLACEMENT AS POSSIBLE TO THE STOCK UNIT, REQUIRING ONLY MINOR MODIFICATIONS FOR A CLEAN, FACTORY-LIKE INSTALLATION. THE INCREASED THERMAL EFFICIENCY PROVIDED BY THE DINAN DUAL CORE INTERCOOLER WILL ALSO ENHANCE TURBOCHARGER RELIABILITY IN ADDITION TO OVERALL POWER. ON A STOCK VEHICLE, POWER GAINS CAN BE HAD FROM 4000 RPM & BEYOND (WHEN THE CAR IS IN BOOST).

IN ORDER TO ACHIEVE THE BEST PERFORMANCE, THE INTERCOOLER SHOULD BE PAIRED WITH THE STAGE 3 DINANTRONICS PERFORMANCE TUNER AS IT PROVIDES OPTIMIZATION OF THE INTERCOOLER. IN PARTICULAR, IT EXTENDS THE POWER BAND TO BE MORE ROBUST & POWERFUL FROM 5000 RPM TO REDLINE WHEREAS WITHOUT TUNING THE BULK OF THE GAINS ARE FROM 6000 RPM TO REDLINE.

NOTE: NOT COMPATIBLE WITH VEHICLES EQUIPPED WITH ACTIVE CRUISE CONTROL OR THE F23 / F33 CHASSIS (CONVERTIBLES).

NOTE: FOR F30 / F31 328I AND 335I APPLICATIONS WITH M-TECH BUMPERS PLEASE REVIEW OPTIONAL HARDWARE KIT D333-0025 FOR OPTIMAL APPEARANCE.

COMPATIBLE WITH:

• BMW:
• 2014-2016 228I & XDRIVE
• 2012-2016 328I & XDRIVE
• 2014-2016 328I XDRIVE
• 2014-2016 428I & XDRIVE
• 2015-2016 428I & XDRIVE
• 2014-2016 M235I & XDRIVE
• 2012-2015 335I & XDRIVE
• 2014-2016 435I & XDRIVE
• 2015-2016 435I & XDRIVE

FEATURES

• MAX GAINS (N55 ENGINE) OF 15 HP & 13 LB-FT OF TORQUE AY 6250 RPM (GREATER GAINS & WIDER POWER BAND CAN BE ACHIEVED WHEN PAIRED WITH STAGE 3 DINANTRONICS)
• MAX GAINS (N20/N26 ENGINE) OF 6 HP & 5 LB-FT OF TORQUE AT 5500 RPM (GREATER GAINS & WIDER POWER BAND CAN BE ACHIEVED WHEN PAIRED WITH STAGE 3 DINANTRONICS)
• FACE AREA 240% LARGER THAN THE STOCK INTERCOOLER SETUP FOR MAXIMUM COOLING EFFICIENCY TO DETER HEAT SOAK
• CHARGE AIR PRESSURE DROP: 0.80 PSI (25% IMPROVEMENT OVER STOCK)
• CHARGE AIR TEMPERATURE DROP: 155 DEGREES F (11% IMPROVEMENT OVER STOCK)
• CHARGE AIR TEMPERATURE / AMBIENT TEMPERATURE DELTA: 18 DEGREES F AT 6250 RPM (60% IMPROVEMENT OVER STOCK)

SPECS:

• DINAN POINT VALUE: 2
• HEIGHT: 13"
• LENGTH: 36"
• MAX HP GAIN: 15 @ 6250 RPM
• MAX TORQUE (LB-FT) GAIN: 13 @ 6250 RPM
• PRODUCT TYPE: INTERCOOLER
• WIDTH: 19"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTERCOOLER HERE.
