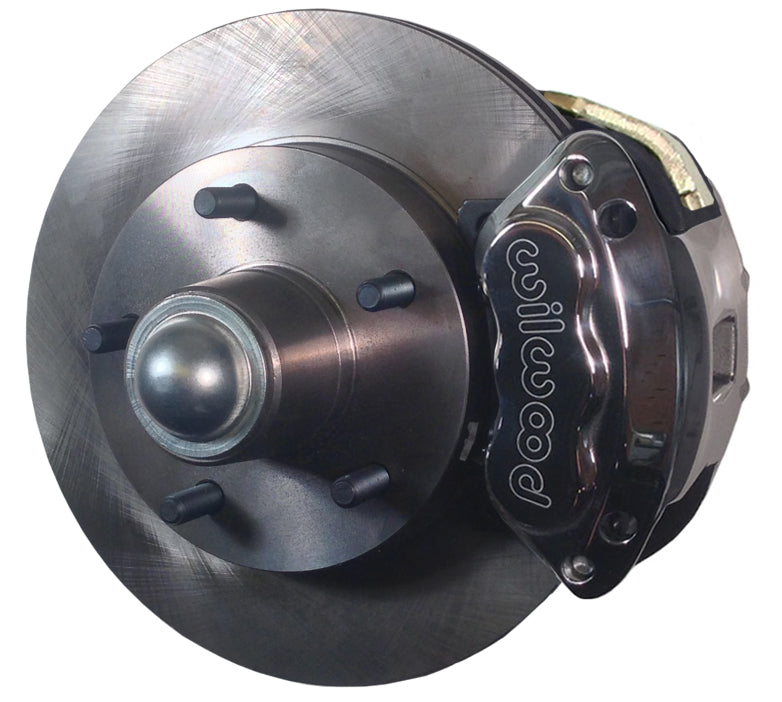

55-57 CHEVY DISC BRAKE CONVERSION KIT,11" ROTORS,D154 POLISHED WILWOOD CALIPERS

• THIS KIT IS DESIGNED TO BOLT DIRECTLY ON THE ORIGINAL SPINDLES IN THE APPLICATIONS LISTED BELOW.

• ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST AND PICTURE BELOW FOR A DETAIL OF THE PARTS INCLUDED.

• FEATURES POLISHED WILWOOD CALIPERS.

FITS:

• CHEVY:
  • 1955-1957

• SOUTHWEST SPEED BRAKE KITS CONSIST OF PRECISION ENGINEERED COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL.

• THESE 1-PIECE ROTOR AND HAT KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE FOR AMERICAN MUSCLE CARS AND VINTAGE RODS. THEY ARE FULLY COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT. THEY PROVIDE SOLID BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF DAILY DRIVERS, RACE VEHICLES, AND ULTRA-STYLED SHOW MACHINES.

• WILWOODS D154 1-PISTON CALIPERS ARE A LIGHTWEIGHT, HIGH-STRENGTH, EXTREME-DUTY ALTERNATIVE TO THE OE-STYLE CAST IRON CALIPERS. FORGED BILLET ALUMINUM BODIES, STAINLESS STEEL PISTONS, AND COMPETITION STYLE HIGH-TEMPERATURE SEALS PUT AN END TO THE RUST, BORE PITTING, AND SEAL FAILURES THAT PLAGUE THE OE CALIPERS. D154 CALIPERS PROVIDE LOW-MAINTENANCE PERFORMANCE AND A HUGE WEIGHT SAVINGS WITH HIGH TEMPERATURE RELIABILITY FOR THE STREET AND TRACK. THE 2.50" PISTON IN EACH CALIPER PROVIDES 4.90 SQUARE INCHES OF PISTON AREA PER CALIPER. THE KIT CONTAINS HARDENED SLIDE PINS AND WILWOOD BP-10 HIGH FRICTION PADS

• THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

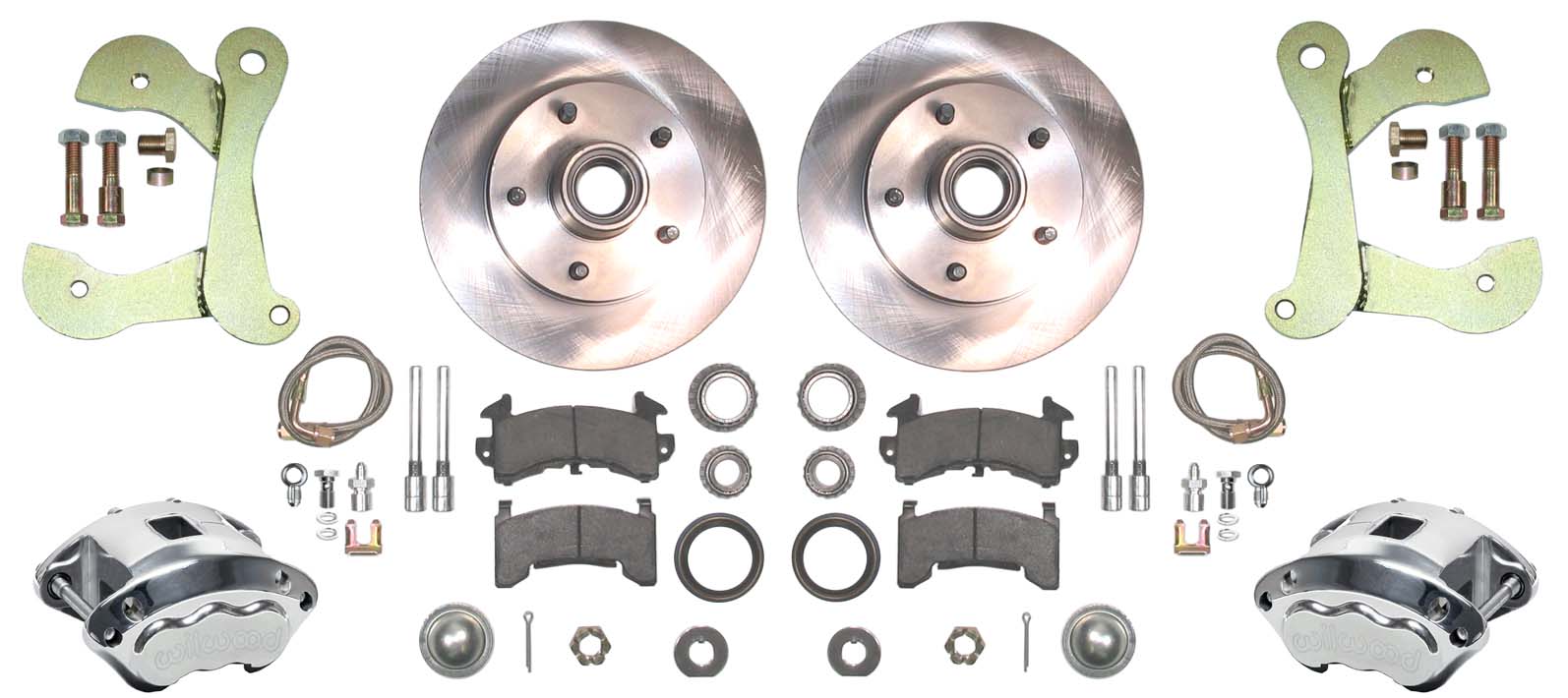

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.00" THICK X 11" O.D. 1-PIECE ROTORS/HATS
  • 5 X 4.75" BOLT PATTERN
  • 7/16" STUDS
• DISC BRAKE CALIPER BRACKETS
  • DESIGNED TO BOLT DIRECTLY TO THE ORIGINAL SPINDLES
• WILWOOD D154 1-PISTON FORGED ALUMINUM CALIPERS - POLISHED
• WILWOOD BP-10 SMART COMPOUND BRAKE PADS
• CALIPER SLIDE PIN BOLTS WITH SLEEVES
• STEEL BRAIDED BRAKE LINE KIT WITH FITTINGS TO CONNECT TO CALIPERS AND CONNECT TO STOCK HARD LINES
• WHEEL BEARINGS AND RACES
• SEALS, WASHERS, NUTS, COTTER PINS, & DUST CAPS
