CALIPER SET,LOADED,D-154 GM,1" ROTOR

CALIPER SET,LOADED,D-154 GM,1" ROTOR

203-6188

$149.99
$149.99
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details
  • BRAND NEW SOUTHWEST SPEED D-154 BRAKE CALIPER SET FOR BOTH FRONT WHEELS.

  • THIS D154 FRONT CAST IRON CALIPER KIT IS A DIRECT BOLT-ON 1 PISTON KIT FOR "GM METRIC" CALIPERS THAT WERE USED ON A WIDE RANGE OF FACTORY DISC BRAKE EQUIPPED MID-SIZE GM CARS AND SMALL TRUCKS BEGINNING IN 1978. USE OF THIS CALIPER CAN STILL BE FOUND ON SOME GM MODELS AS LATE AS THE YEAR 2002. THESE CALIPERS ARE COMPLETELY BRAND NEW CAST STEEL CALIPERS; NOT REBUILT. THEY MOUNT IN THE STOCK LOCATION OVER STOCK ROTORS; USE THE ORIGINAL STYLE OE D154 BRAKE PADS AND AN OE M10MM X 1.5 BANJO BOLT BRAKE LINE MOUNTING. THE 2.50" PISTON IN EACH CALIPER PROVIDES 4.90 SQUARE INCHES OF PISTON AREA PER CALIPER, WHICH MAINTAINS THE ORIGINAL FRONT TO REAR BRAKE BIAS AND USE OF THE OE MASTER CYLINDER. THE KIT CONTAINS HARDENED SLIDE PINS AND SEMI-METALLIC, HIGH FRICTION PADS.

    • APPLICATIONS:

    • BUICK:
      • 1978-1981 CENTURY***
      • 1982-1987 GRAND NATIONAL***
      • 1978-1987 REGAL***
      • 1979-1985 RIVIERA***
    • CADILLAC:
      • 1979-1985 EL DORADO***
      • 1980-1985 SEVILLE***
    • CHEVROLET:
      • 1982-1987 CAMARO***
      • 1988-1992 CAMARO, WITH SPINDLES THAT WERE USED WITH OE SINGLE PISTON CALIPERS***
      • 1978-1987 EL CAMINO***
      • 1978-1987 MALIBU***
      • 1978-1988 MONTE CARLO***
      • 1983-1996 S10 BLAZER, ALL***
      • 1997 S10 BLAZER, 4 X 2***
      • 1997 S10 BLAZER, 4 X 4 WITH REAR DRUM BRAKES & WITHOUT AWD***
      • 1982-1996 S10 PICKUP, ALL***
      • 1997-2002 S10 PICKUP, 4 X 2 WITH REAR DRUM BRAKES***
      • 1997 S10 PICKUP, 4 X 4 WITH REAR DRUM BRAKES & WITHOUT AWD***
    • GMC:
      • 1978-1987 SPRINT***
      • 1991 SYCLONE***
      • 1992-1993 TYPHOON***
      • 1983-1996 S15 JIMMY, ALL***
      • 1997 S15 JIMMY, 4 X 2***
      • 1997 S15 JIMMY, 4 X 4 WITHOUT AWD***
      • 1982-1996 S15 PICKUP, ALL***
      • 1997-2002 S15 PICKUP, 4 X 2 WITH REAR DRUM BRAKES***
      • 1997 S15 PICKUP, 4 X 4 WITHOUT AWD***
    • ISUZU:
      • 1996-2000 HOMBRE, 4 X 2***
    • OLDSMOBILE:
      • 1991-1996 BRAVADA***
      • 1978 CUTLASS, WITH DISC BRAKE SPINDLES***
      • 1979-1981 CUTLASS, ALL***
      • 1978-1983 CUTLASS CRUISER, ALL***
      • 1982-1988 CUTLASS SUPREME, REAR WHEEL DRIVE ONLY***
      • 1979-1985 TORNADO***
      • 1978 VISTA CRUISER, WITH DISC BRAKE SPINDLES***
    • PONTIAC:
      • 1982-1987 BONNEVILLE***
      • 1978-1980 GRAND AM***
      • 1978-1987 GRAND PRIX***
      • 1978-1980 LEMANS***
      • 1981-1983 LEMANS (CANADA)***
      • 1982-1987 FIREBIRD***
      • 1988-1992 FIREBIRD, WITH SPINDLES THAT WERE USED WITH OE SINGLE PISTON CALIPERS***
    • *THIS PARTICULAR KIT FITS 1.04" THICK ROTORS*

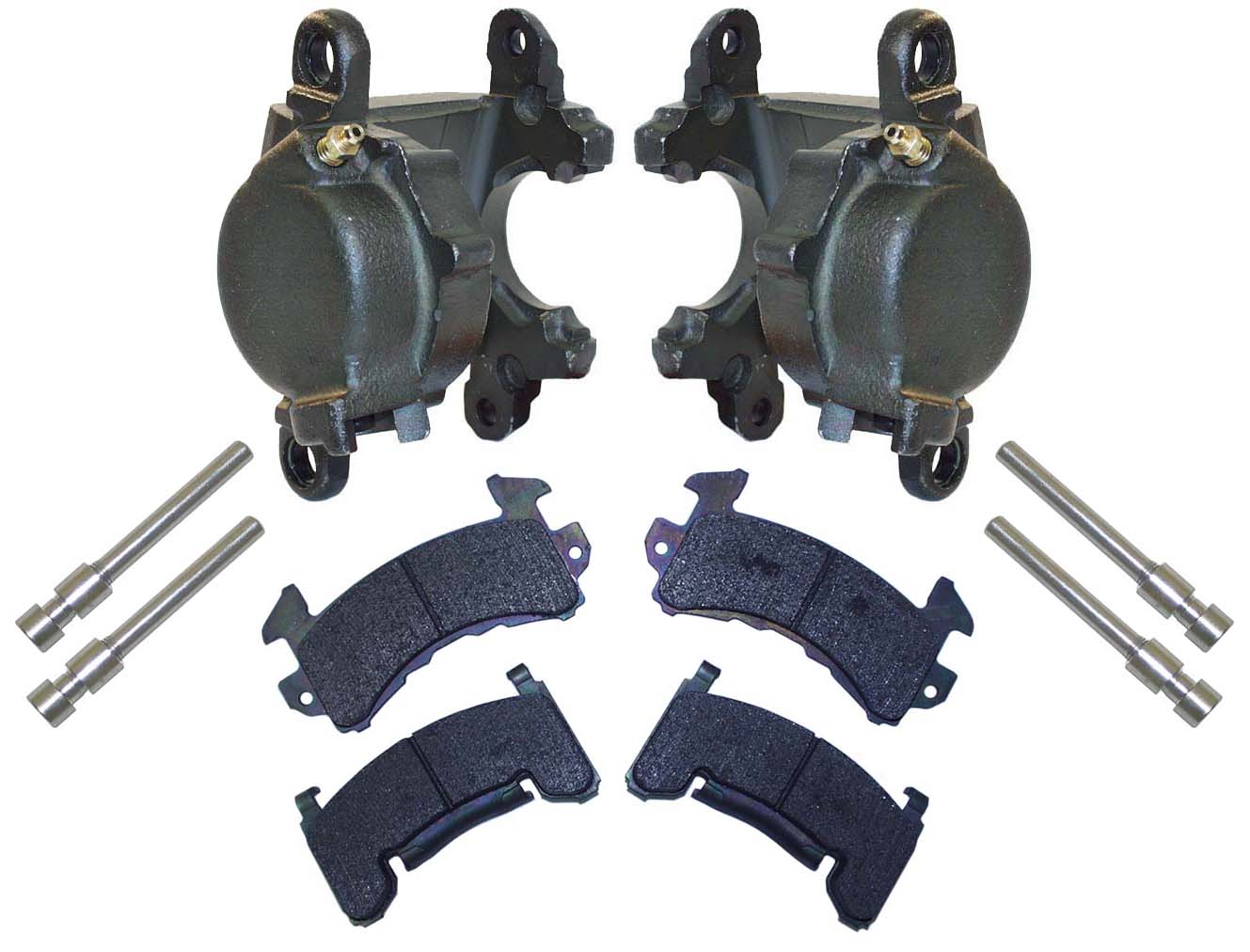

    KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

    • D154 1-PISTON CAST IRON CALIPERS
    • ONE 2.50" PISTON IN EACH CALIPER
    • SEMI-METALLIC, HIGH-FRICTION BRAKE PADS
    • CALIPER SLIDE PIN BOLTS WITH SLEEVES

    COMPLETE KIT WEIGHS APPROXIMATELY 19 LBS.
