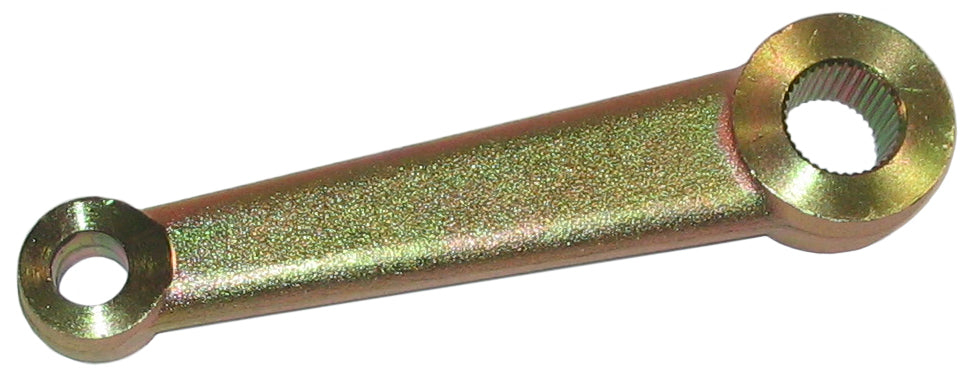

PITMAN ARM,VEGA,DOUBLE TAPER,GOLD PLATED

BRAND NEW PITMAN ARM FOR STREET ROD APPLICATIONS WITH A VEGA 140 GM MANUAL STEERING BOX (PART # 107-1446). THESE ARE BRAND NEW ITEMS PRODUCED BY SOUTHWEST SPEED INC.

FEATURES:

• FITS VEGA MANUAL STEERING BOXES, LIKE THE ONES PICTURED BELOW AND THE ONES THAT WE ALSO HAVE AVAILABLE IN OUR STORE IN STOCK FINISH AND IN CHROME

• 1" SPLINE DIAMETER

• GOLD ZINC PLATED

• NON-OFFSET DESIGN

• DOUBLE-TAPERED "FORD" TIE ROD END HOLE ALLOWS YOU TO ATTACH THE DRAG LINK ON THE TOP OR ON THE BOTTOM

MEASURES:

• 6 3/8" CENTER-TO-CENTER

• 7 7/8" TOTAL LENGTH

• TAPERED TIE ROD HOLE MEASURES 0.625" ON BOTH SIDES AND TAPERS DOWN TO 0.585" IN THE CENTER OF THE HOLE

APPLICATIONS:

• THESE VEGA BOXES AND PITMAN ARMS ARE PERFECT FOR THE CROSS STEERING SYSTEM IN HOT ROD APPLICATIONS WITH STRAIGHT AXLE SETUPS: INCLUDING STREET RODS, RAT RODS, HOT RODS, T-BUCKETS, MODEL A, 1923-1948 FORDS, AND MANY OTHER VEHICLES:

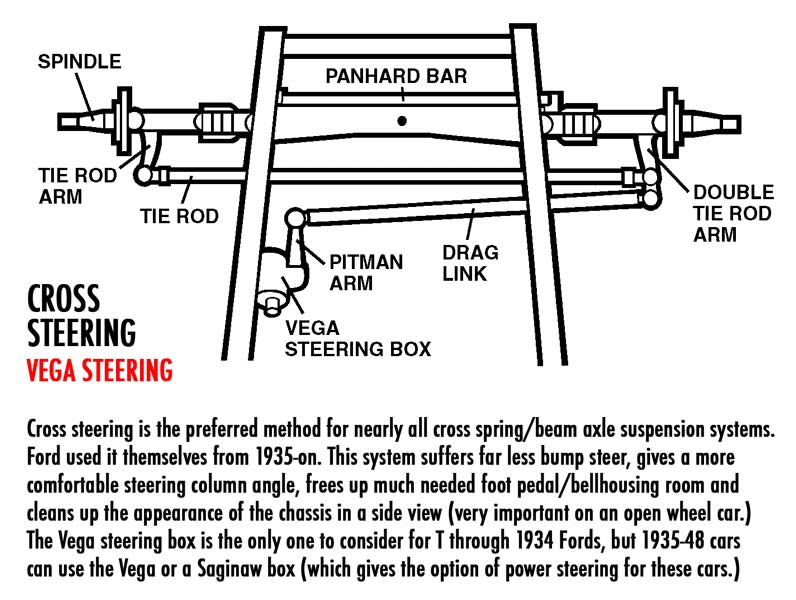

• YOU CAN SEE A BETTER DESCRIPTION OF "CROSS-STEERING" IN THE DIAGRAM TO THE RIGHT.

• WE DO HAVE THE VEGA STEERING BOXES AVAILABLE IN STOCK FINISH AND IN CHROME, AS WELL AS WITH A WELD-ON FRAME BRACKET AND A BOLT-ON BRACKET FOR THE TAPERED FRAMES ON 1935-1941 FORD CHASSIS

• WE ALSO HAVE OTHER PITMAN ARMS AVAILABLE IN STOCK FINISH AND IN CHROME

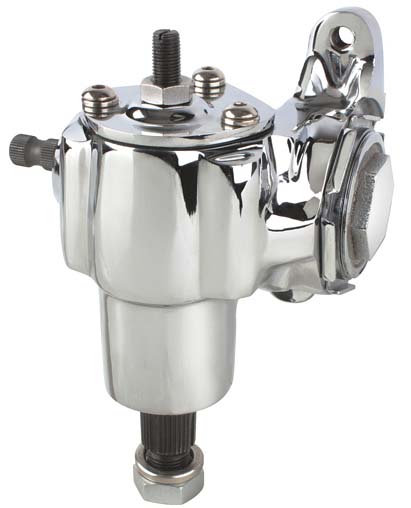

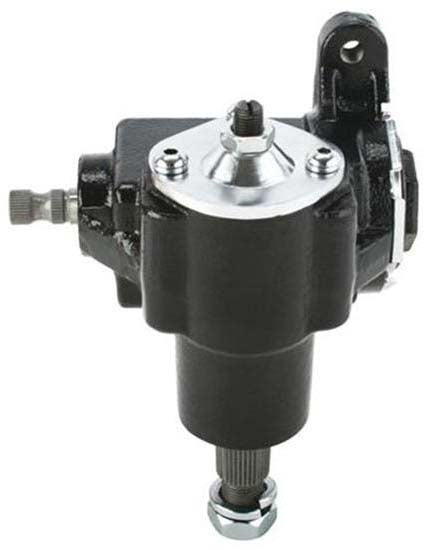

• THIS PITMAN ARM FITS THESE STEERING BOXES SHOWN IN THE IMAGES TO THE RIGHT (NOT INCLUDED WITH THIS LISTING):
