04-06 SCION xA,xB,FRONT,FSL4,13",DRILLED

BRAND NEW WILWOOD SUPERLITE BIG BRAKE FRONT HAT & 12.90" DISC BRAKE KIT (PART #140-8335-D) FOR BOTH FRONT WHEELS.

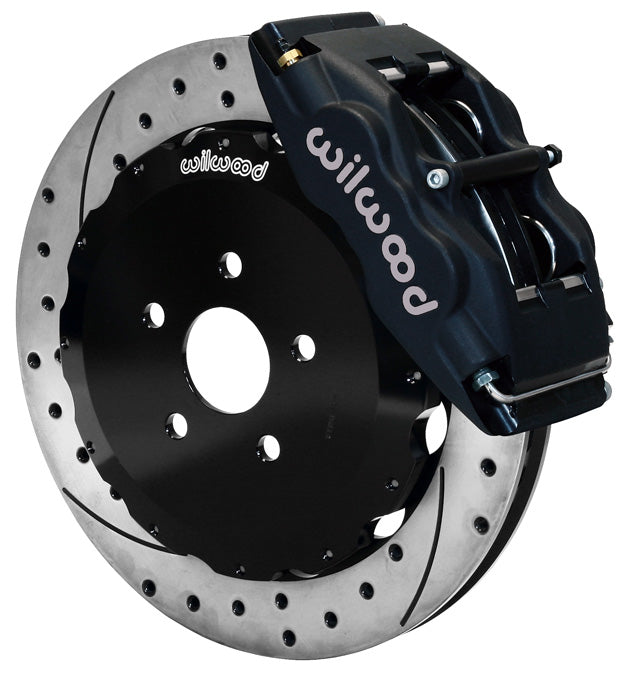

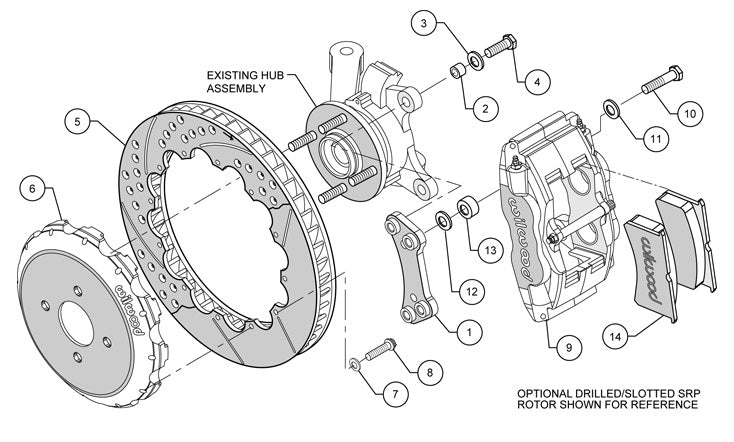

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS BLACK CALIPERS.

FITS:

• 2004-2006 SCION XA
• 2004-2006 SCION XB
• 2000-2005 TOYOTA ECHO

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THE BIG PAD CAPACITY OF THE FORGED SUPERLITE FOUR PISTON CALIPER IS COMBINED WITH OVERSIZED ROTORS FOR THESE UNIQUE KITS. THE ROOTS OF THE FORGED SUPERLITE ARE DEEP IN COMPETITION. IT IS A TRACK PROVEN PERFORMER. BUT THE FSL IS FAR FROM ONE DIMENSIONAL. LUG MOUNTING AND A FULL RANGE OF PISTON SIZES GIVE THE FSL WIDESPREAD ADAPTABILITY FOR APPLICATIONS WITH UNIQUE MOUNTING AND PISTON VOLUME REQUIREMENTS. THESE KITS GIVE HIGH-TECH STYLE WITH FULL CAPABILITY FOR EXTREME DUTY USE ON THE STREET OR AT THE TRACK.

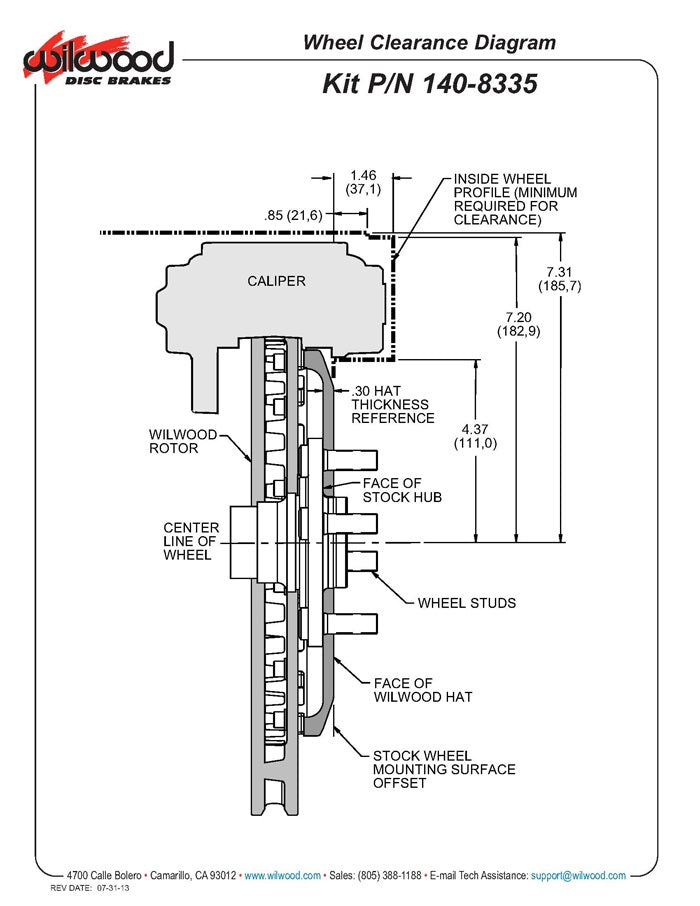

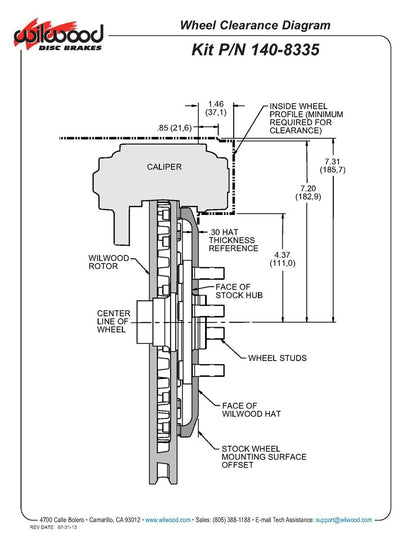

THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

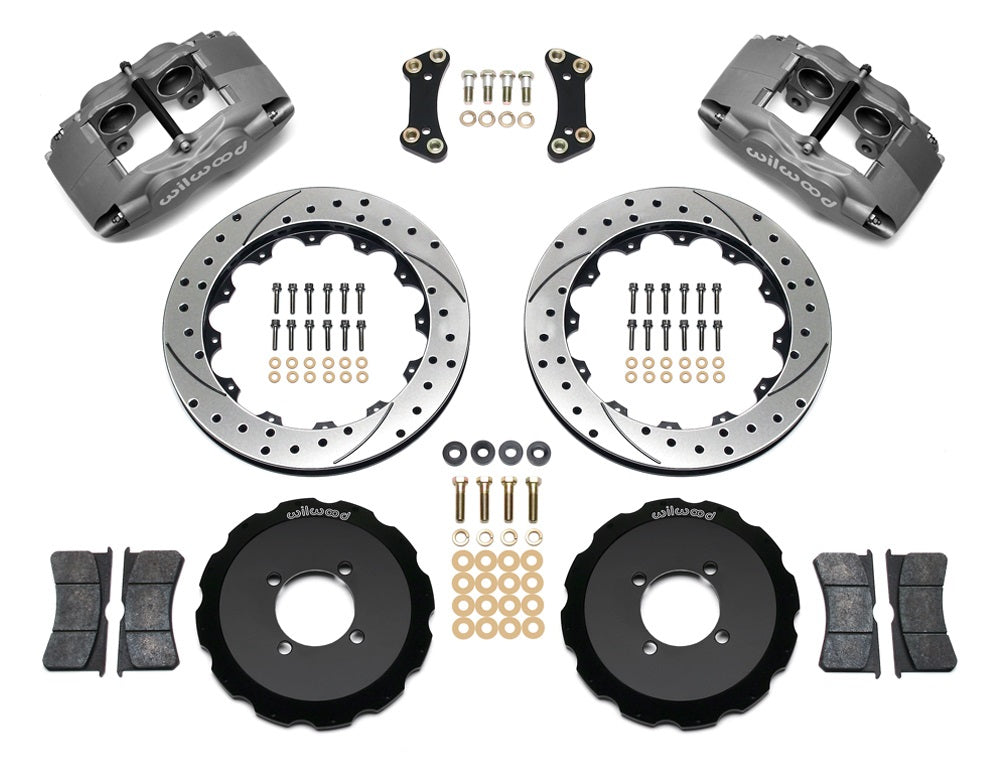

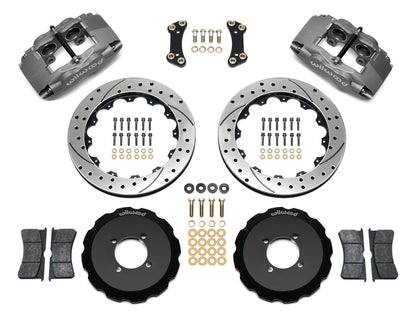

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 1.10" THICK X 12.90" O.D. ROTORS
• FORGED SUPERLITE BRAKE CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 52 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
