GM ELIMINATOR,2.91",REAR,12",RED

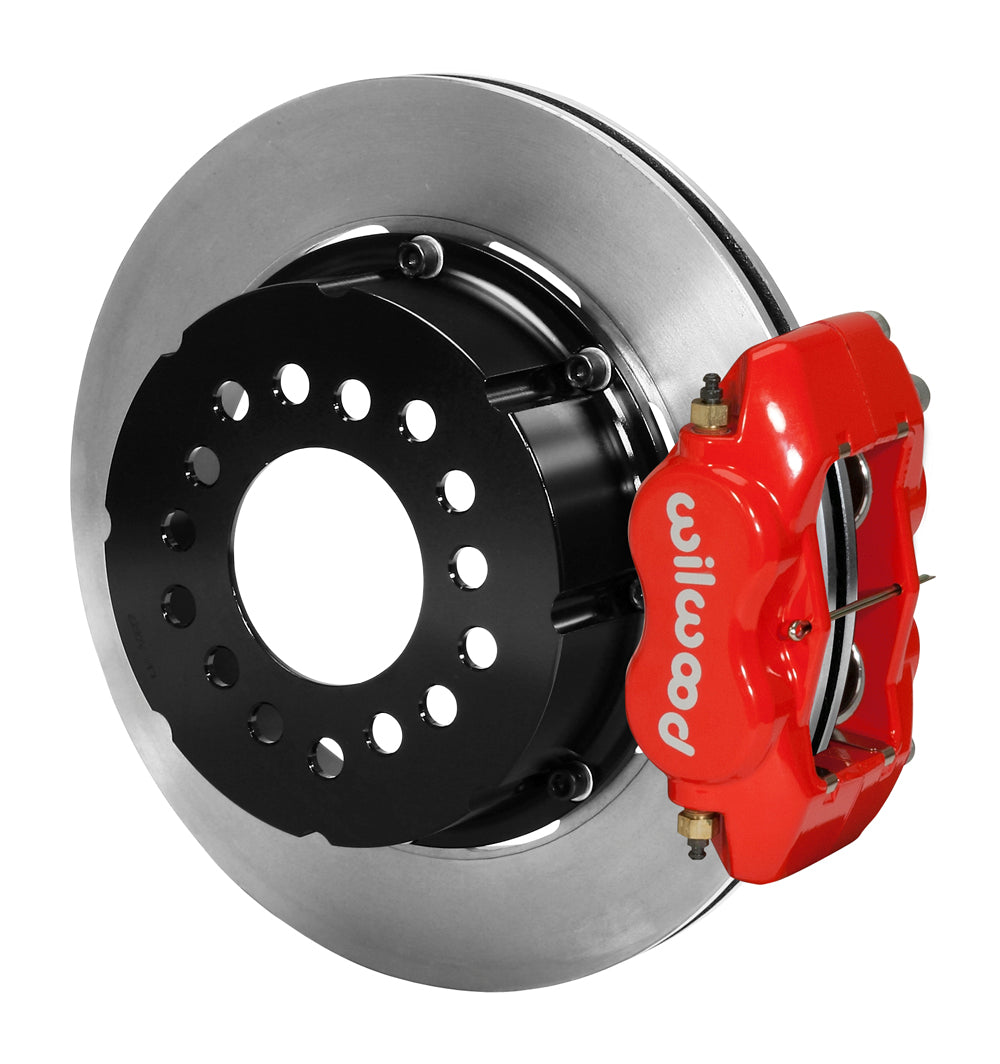

BRAND NEW WILWOOD DYNALITE PRO SERIES BOLT-ON 12.19" DISC BRAKE KIT (PART #140-5236-R) FOR BOTH REAR WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FDL PRO-SERIES REAR DISC BRAKE KITS PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES ON APPLICATIONS WHERE INDIVIDUAL WHEEL PARKING BRAKE ASSEMBLIES ARE NOT REQUIRED. FORGED BILLET DYNALITE FOUR PISTON CALIPERS, TWO-PIECE HAT AND ROTOR ASSEMBLIES, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF OFF-ROAD, COMPETITION, AND OTHER CUSTOMIZED APPLICATIONS. FDL CALIPERS CAN BE OPTIONED WITH A FULL RANGE OF FINISHES TO REFLECT PERSONALIZED STYLE. ROTOR CHOICES PROVIDE OPTIONS FOR HIGH-TECH SHOW WINNING STYLE, OR HEAVY WEIGHT DURABILITY AND COOLING CAPACITY FOR HIGH HEAT COMPETITION.

COMPATIBLE WITH:

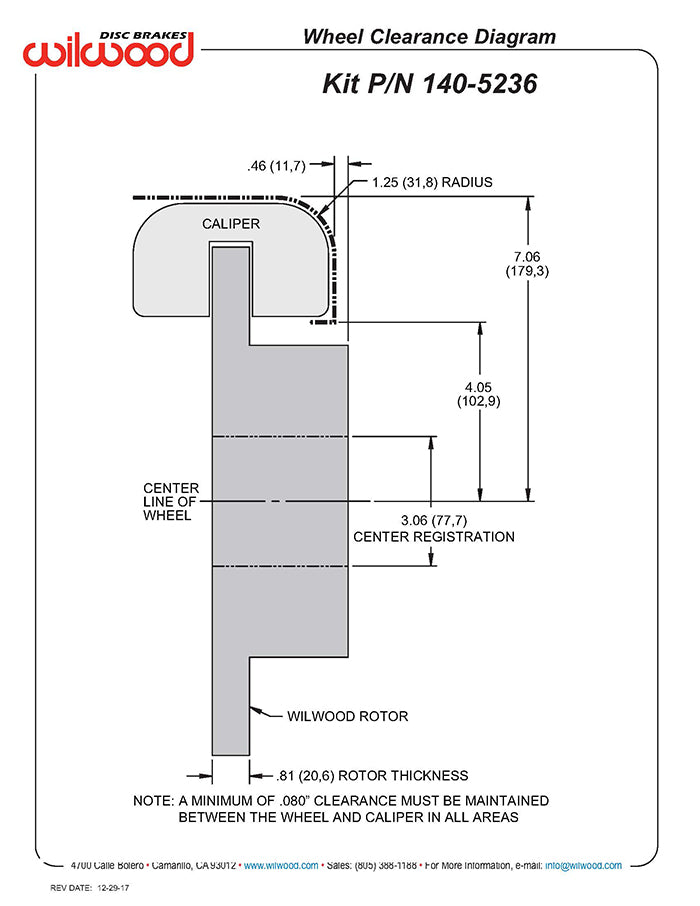

• 12 BOLT GM REAR ENDS WITH A 2.91" AXLE FLANGE OFFSET (SEE DIAGRAMS) WITH C-CLIP ELIMINATORS

THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

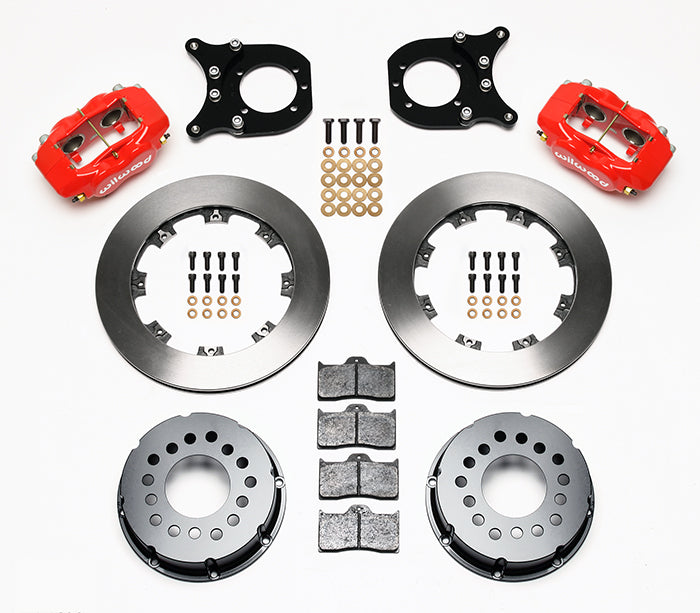

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• .810" THICK X 12.19" O.D. ROTORS
• FORGED DYNALITE CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 35 LBS.

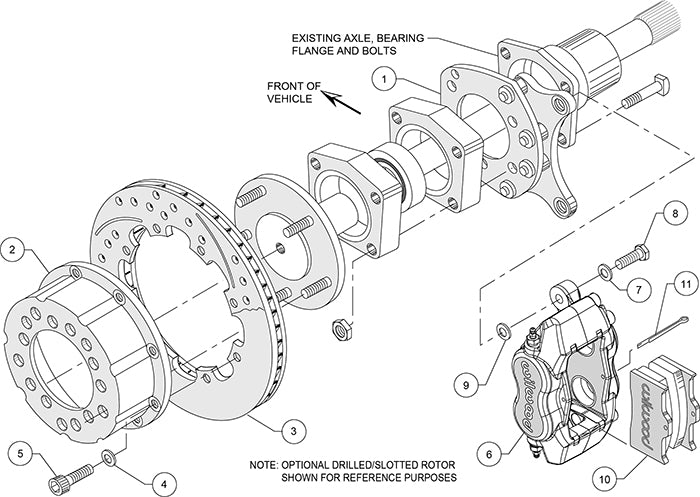

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
