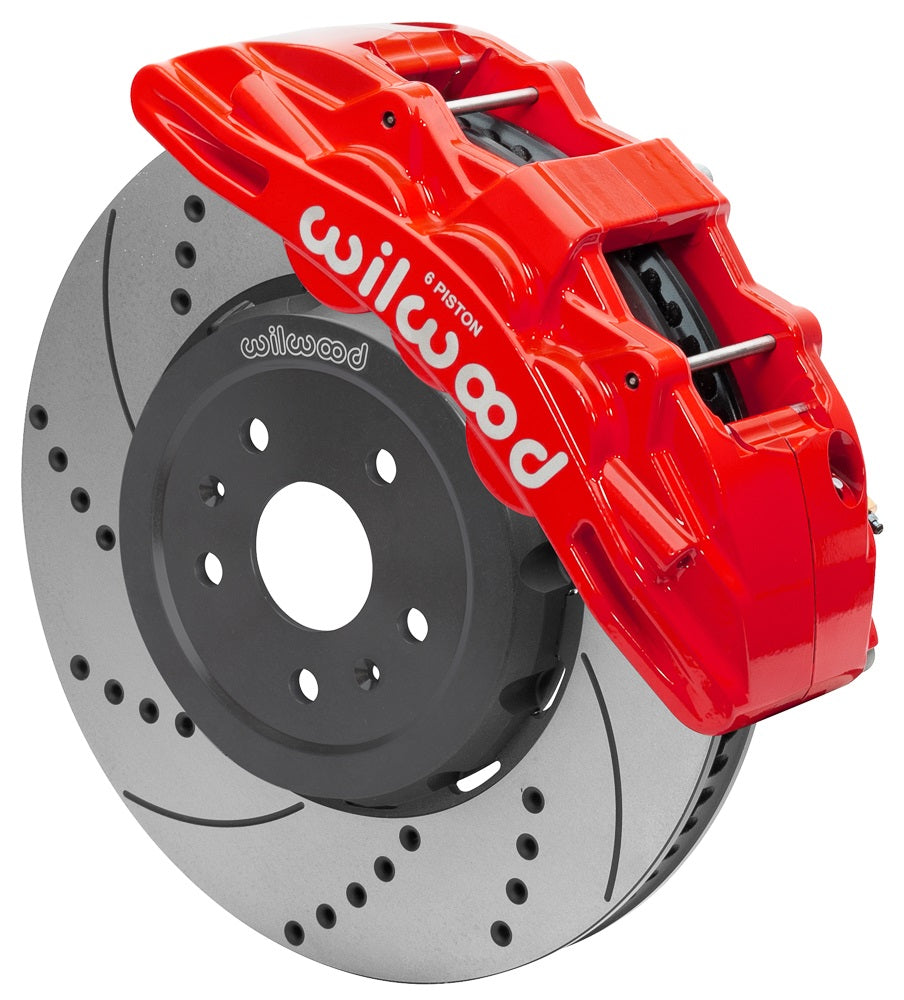

20-23 CORVETTE C8,FRONT,SX6R,15" DRILLED ROTORS,RED CALIPERS

BRAND NEW WILWOOD SX6R BIG BRAKE 15" DISC BRAKE KIT (PART #140-17004-DR) FOR BOTH FRONT WHEELS.

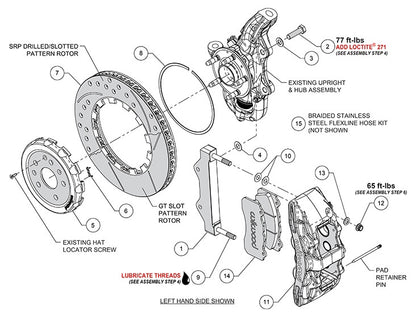

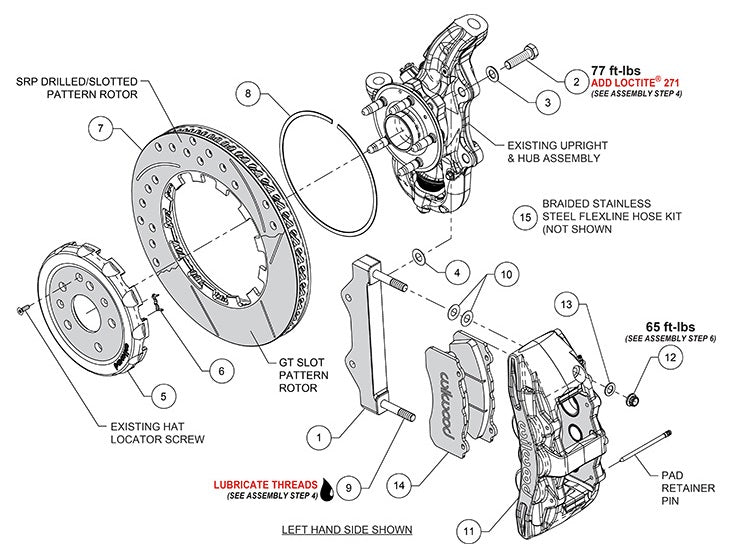

ONLY ONE SIDE PICTURED. SEE THE LIST & DIAGRAM BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES DRILLED ROTORS & RED CALIPERS.

FITS:

• CHEVROLET:
• 2020-2023 CORVETTE STINGRAY
• 2023 CORVETTE Z06

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

SX6R CALIPERS WERE DESIGNED FOR THE SPECIFIC PURPOSE OF PROVIDING HIGH CAPACITY BRAKING WITH LARGE DIAMETER ROTORS FOR EXTREME DUTY AND RACE VEHICLES. IT IS THE LARGEST DUAL PURPOSE CALIPER WILWOOD HAS PRODUCED, PROVIDING BIG BRAKE PERFORMANCE FOR SHOW AND DUAL PURPOSE STREET AND TRACK VEHICLES. OFFERING ADDITIONAL ENHANCED BRAKING WITH WHEEL AND TIRE UPGRADES. KITS ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTION. DIRECTIONAL 72 STAGGERED VANE 15.00" ROTORS PROVIDE MAXIMUM COOLING FOR SUSTAINED HIGH HEAT DURABILITY.

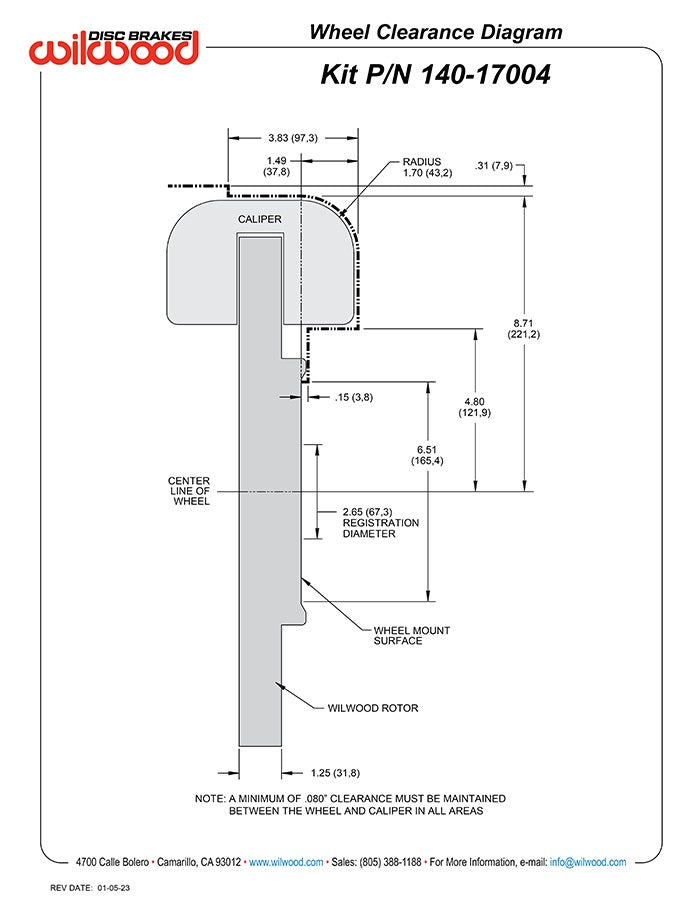

THESE BIG BRAKE KITS REQUIRE AT LEAST 19" DIAMETER WHEELS.

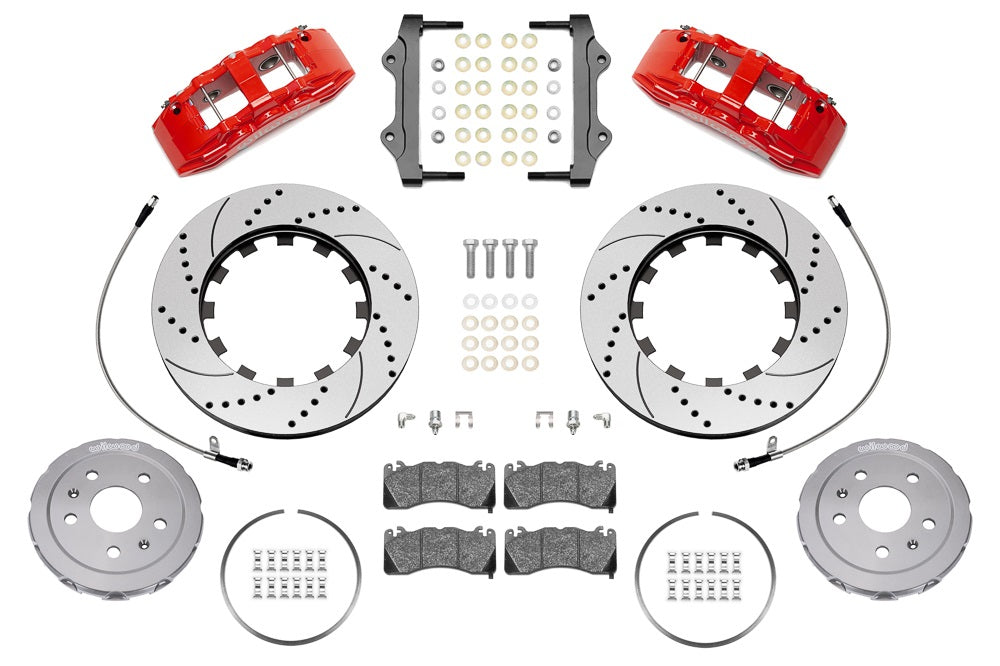

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 1.25" THICK X 15.00" O.D. ROTOR
• SX6R 6 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BRAKE HATS
• BP-10 SMART COMPOUND BRAKE PADS
• STEEL BRAIDED LINES WITH FITTINGS
• ALL BOLTS, WASHERS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 96 LBS.

YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
