2013-2018 RAM 1500,AERO4,REAR,15",BLACK

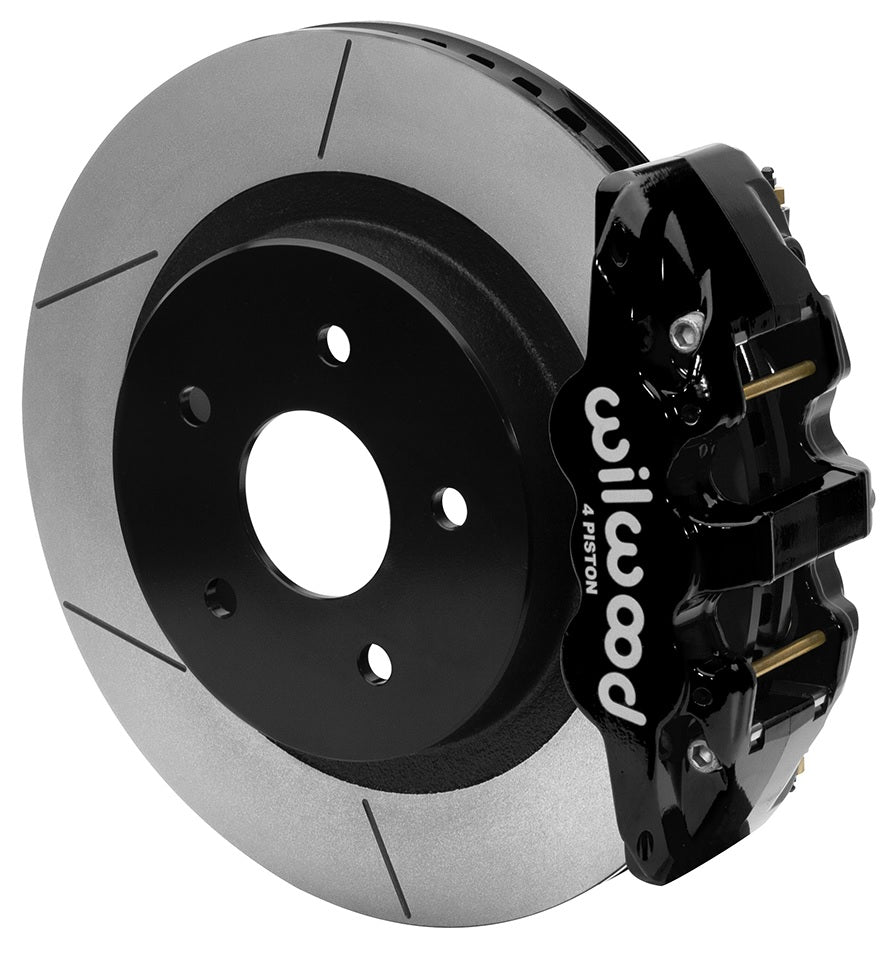

BRAND NEW WILWOOD AERO4 BIG BRAKE 15" DISC BRAKE KIT (PART #140-16026) FOR BOTH REAR WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

AERO4 BIG BRAKE REAR AXLE KITS FOR 2013 TO 2018 RAM 1500 TRUCKS REPLACE THE FACTORY DISC BRAKES AND USE THE OE PARKING BRAKE ASSEMBLY AS A COMPLIMENT TO FRONT BIG BRAKE UPGRADE KIT. HIGH CAPACITY BRAKING FROM THE AERO4 CALIPERS, BP-20 COMPOUND PADS, AND OVERSIZED 15.00" ROTORS ARE MATCHED TO THE OE MASTER CYLINDER OUTPUT, ABS FUNCTION, AND INDIVIDUAL VEHICLE BIAS REQUIREMENTS. ENHANCED BRAKE PERFORMANCE, INCREASED DURABILITY, AND HIGH-TECH STYLE COMPLIMENT BIG WHEEL, TIRE, AND SUSPENSION UPGRADES ON VEHICLES WITH INCREASED BRAKE REQUIREMENTS FROM HIGH GVW. KIT COMES COMPLETE WITH STAINLESS BRAIDED FLEX LINES.

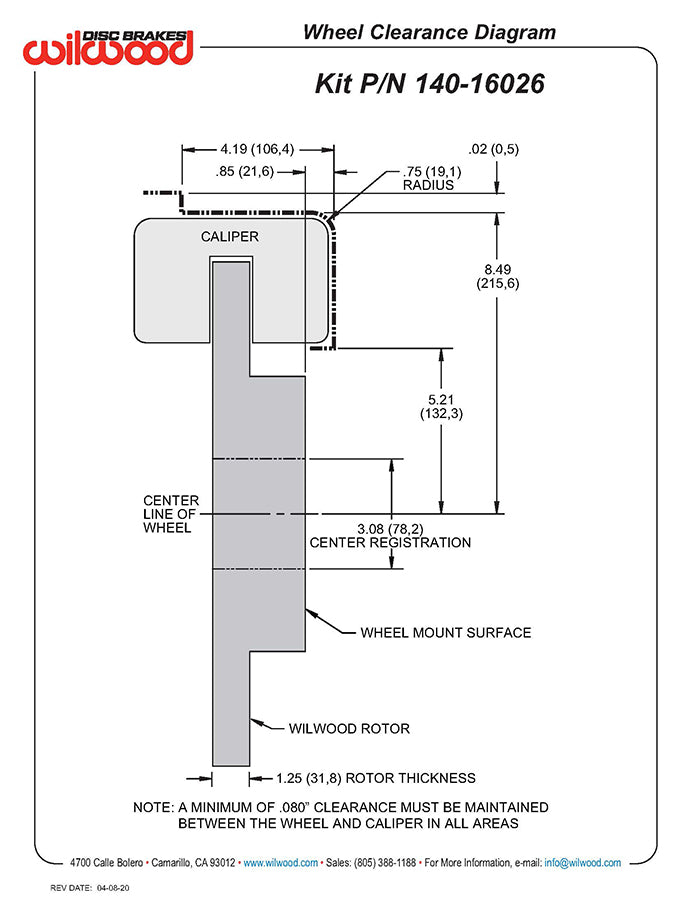

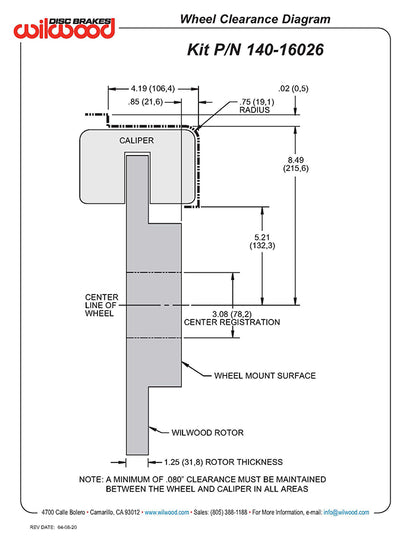

THESE KITS REQUIRE AT LEAST 19" DIAMETER WHEELS.

COMPATIBLE WITH:

• RAM:
  • 2013-2018 RAM 1500

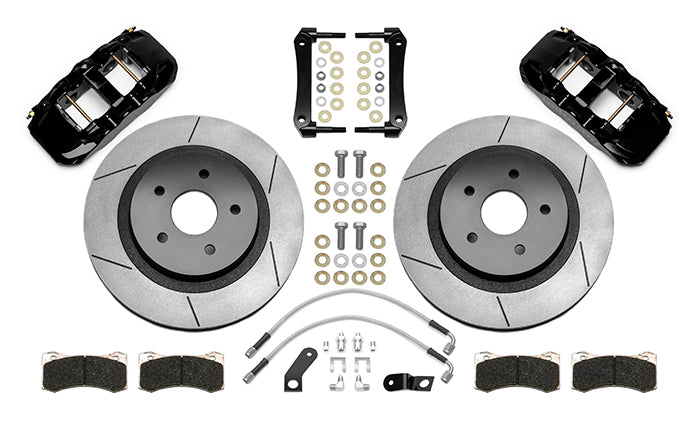

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• 1.25" THICK X 15.00" O.D. 1-PIECE ROTOR & HAT
• AERO4 CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-20 SMART COMPOUND BRAKE PADS
• STEEL BRAIDED LINES WITH FITTINGS
• ALL BOLTS, WASHERS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 96 LBS.

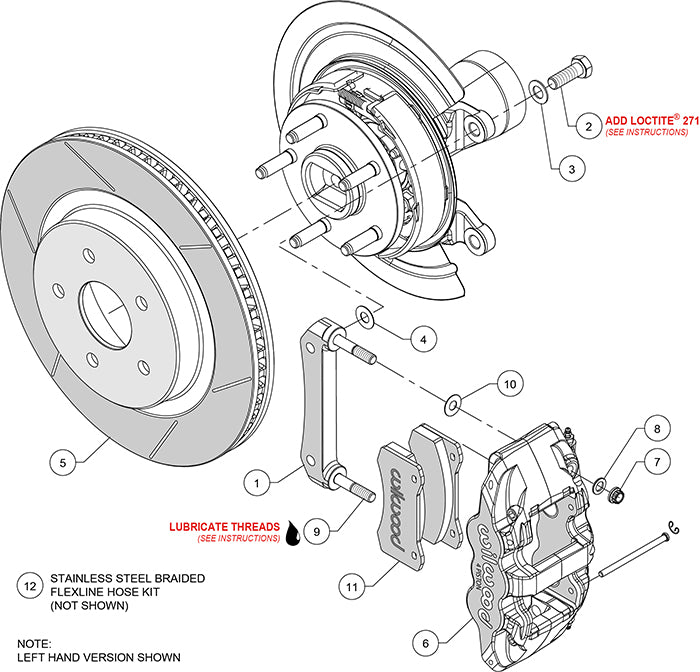

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
