88-99 CHEVY C1500 FRONT DISC BRAKE KIT FOR WILWOOD DROP SPINDLES,12" DRILLED,BLK

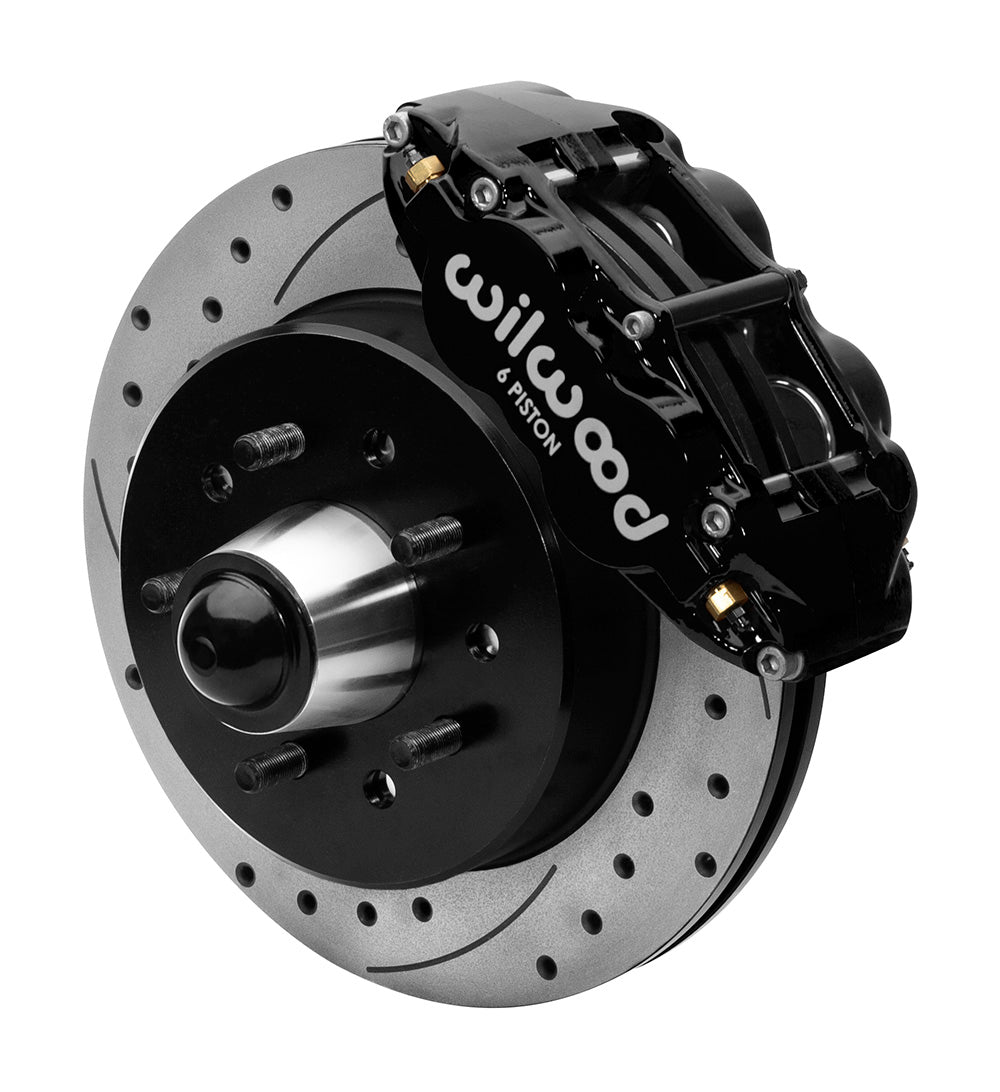

BRAND NEW WILWOOD FORGED NARROW SUPERLITE 6R BIG BRAKE FRONT 12.19" DISC BRAKE KIT (PART #140-15948-D) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THE UNSURPASSED BRAKING CAPACITY OF THE FORGED NARROW SUPERLITE 6R SIX-PISTON CALIPER SERVES AS THE BASE OF THIS 12.19" BIG ROTOR KIT FOR THE POPULAR 1988 THRU 1999 CHEVROLET & GMC C1500 TRUCKS USING WILWOODS NEW 1 PIECE IRON DROP PRO SPINDLES. FNSL6R KITS ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED. BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS SIMPLIFY PERSONALIZING THE STYLE AND BRAKING REQUIREMENTS OF ANY APPLICATION. THIS KIT CONTAINS HUBS WITH 5 X 4.75" AND 5 X 5.00" BOLT CIRCLE.

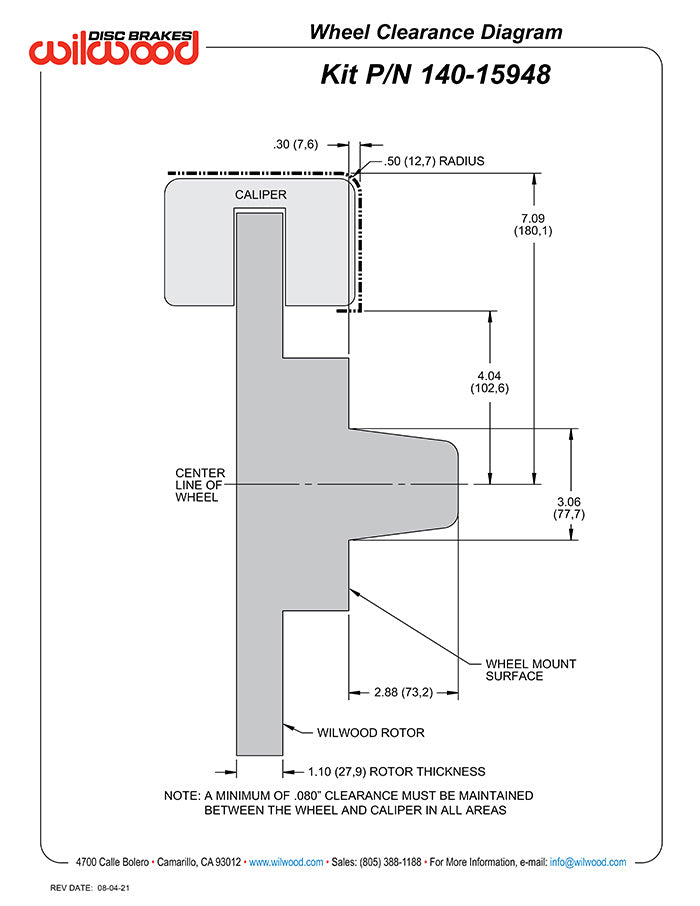

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

NOTE: THIS BRAKE KIT FITS THE FOLLOWING VEHICLES ONLY WHEN USED WITH THE WILWOOD 2" DROP PROSPINDLES AVAILABLE HERE.

COMPATIBLE WITH:

• CHEVROLET:
• 1988-1999 C1500 PICKUP, 2WD WITH WILWOOD 2" DROP PROSPINDLES
• 1992-1999 C1500 SUBURBAN, 2WD WITH WILWOOD 2" DROP PROSPINDLES
• 1996-2002 EXPRESS 1500, 2WD WITH WILWOOD 2" DROP PROSPINDLES
• 1995-1999 TAHOE, 2WD WITH WILWOOD 2" DROP PROSPINDLES
• GMC:
• 1988-1999 C1500 PICKUP, 2WD WITH WILWOOD 2" DROP PROSPINDLES
• 1992-1999 C1500 SUBURBAN, 2WD WITH WILWOOD 2" DROP PROSPINDLES
• 1996-2002 SAVANA 1500, 2WD WITH WILWOOD 2" DROP PROSPINDLES
• 1995-1999 YUKON, 2WD WITH WILWOOD 2" DROP PROSPINDLES

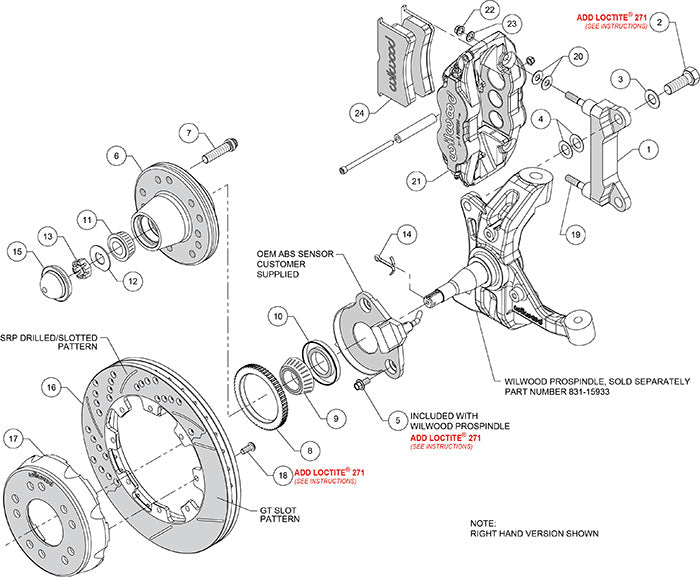

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 1.10" THICK X 12.19" O.D. 1-PIECE ROTORS & HATS
• FORGED NARROW SUPERLITE 6R 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HUBS, BEARINGS, SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 71 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
