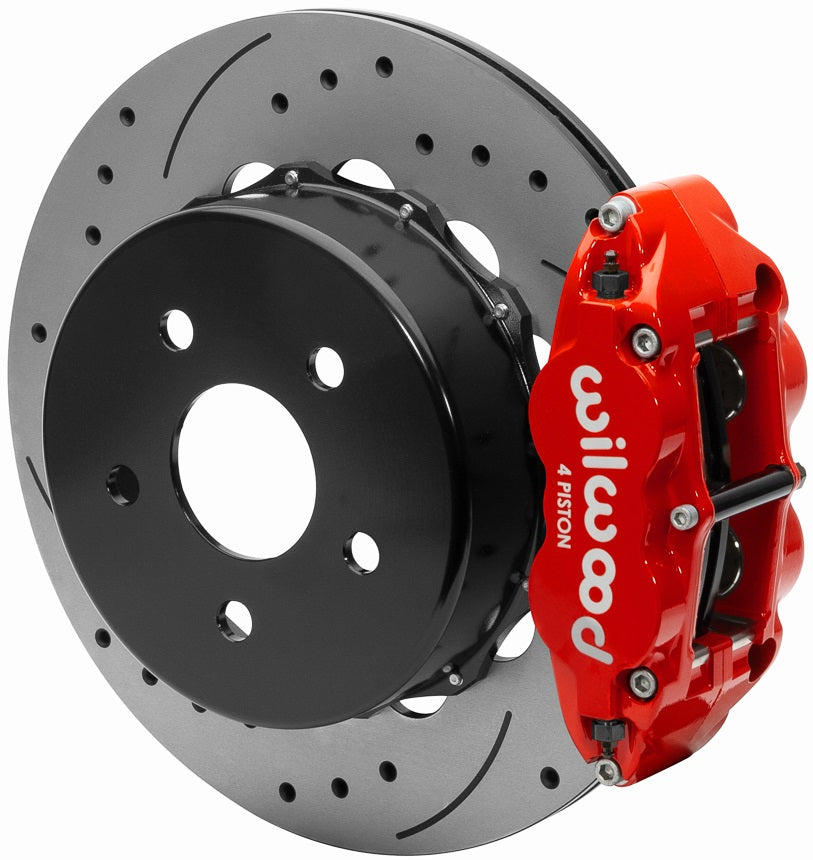

18-UP JEEP JL,REAR,SL 4,14",RED,DRILLED

BRAND NEW WILWOOD FORGED NARROW SUPERLITE 4R BIG BRAKE REAR BRAKE KIT FOR OE PARKING BRAKE (PART #140-15930-DR) FOR BOTH REAR WHEELS.

WILWOOD 140-15930 KITS USE FORGED NARROW SUPERLITE 4R FOUR PISTON CALIPERS ARE COMBINED WITH BP-10 OR BP-20 COMPOUND PADS AND 14" ROTORS IN THIS GROUP OF BIG BRAKE KITS THAT ARE DESIGNED FOR HEAVY WEIGHT AND EXTREME DUTY VEHICLES. THIS GROUP OF SPECIALIZED KITS FOR JEEP WRANGLER JL SERIES RETAIN FULL USE OF THE OE PARKING BRAKE, MASTER CYLINDER OUTPUT, AND ABS WHERE USED.

FNSL4R REAR KITS PROVIDE COMPLIMENTARY STYLE AND PERFORMANCE WITH 14" AND LARGER FRONT BRAKE UPGRADES IN CONJUNCTION WITH WHEEL, TIRE, AND SUSPENSION UPGRADES. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS ENABLE THE BUILDER TO MATCH STYLE AND PERFORMANCE ON ALL APPLICATIONS.

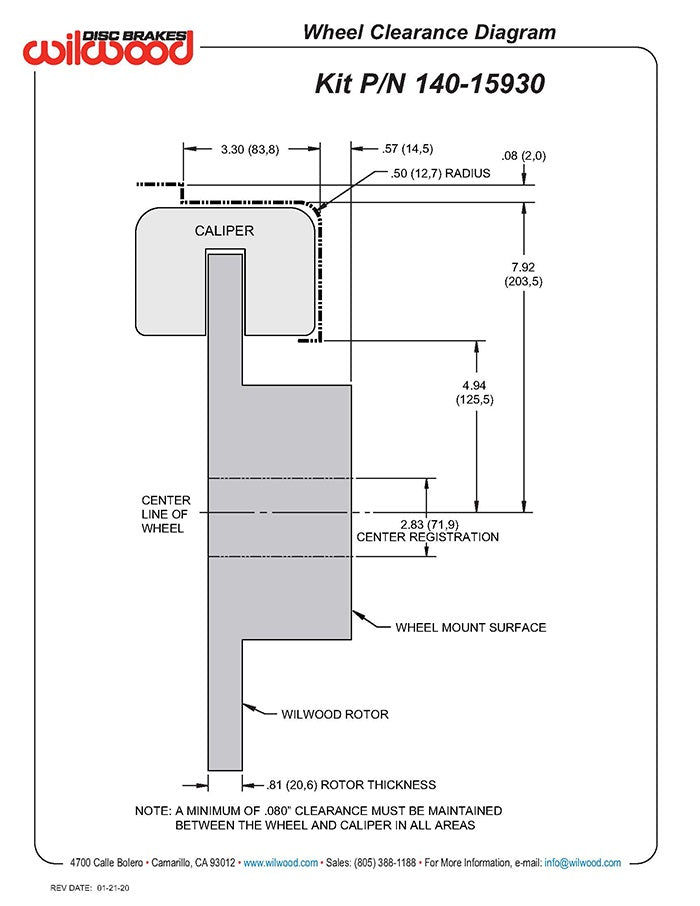

NOTE: THESE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

COMPATIBLE WITH:

• JEEP:
• GLADIATOR 2021 HIGH ALTITUDE
• GLADIATOR 2020-2021 OVERLAND
• GLADIATOR 2020-2021 RUBICON
• GLADIATOR 2020-2021 SPORT
• GLADIATOR 2021 SPORT S
• GLADIATOR 2021 WILLYS
• GLADIATOR 2021 WILLYS SPORT
• WRANGLER 2018-2021 RUBICON
• WRANGLER 2018-2021 SPORT
• WRANGLER 2019-2021 SPORT S
• WRANGLER 2019 UNLIMITED MOAB
• WRANGLER 2019-2021 UNLIMITED RUBICON
• WRANGLER 2019-2021 UNLIMITED SAHARA
• WRANGLER 2019-2021 UNLIMITED SPORT
• WRANGLER 2019-2021 UNLIMITED SPORT S

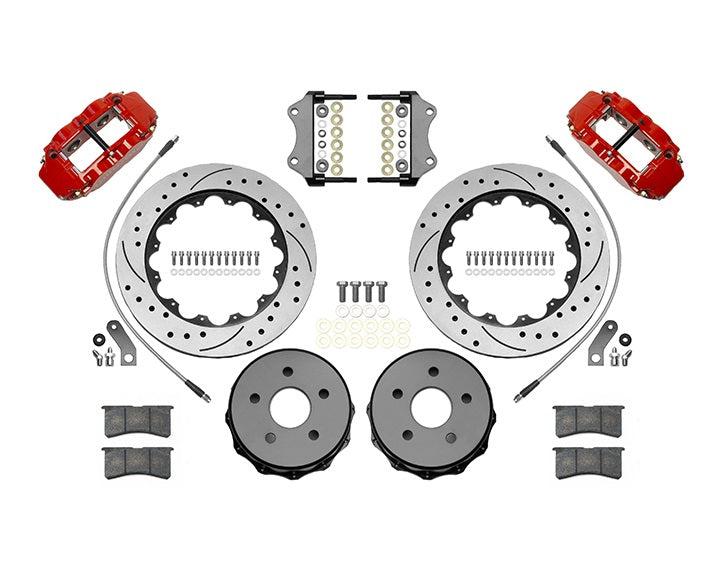

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• DRILLED & SLOTTED 0.81" THICK X 14" O.D. ROTORS
• FORGED NARROW SUPERLITE 4R 4 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-20 BRAKE PADS
• BRAKE HATS
• ALL BOLTS, WASHERS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 63 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
