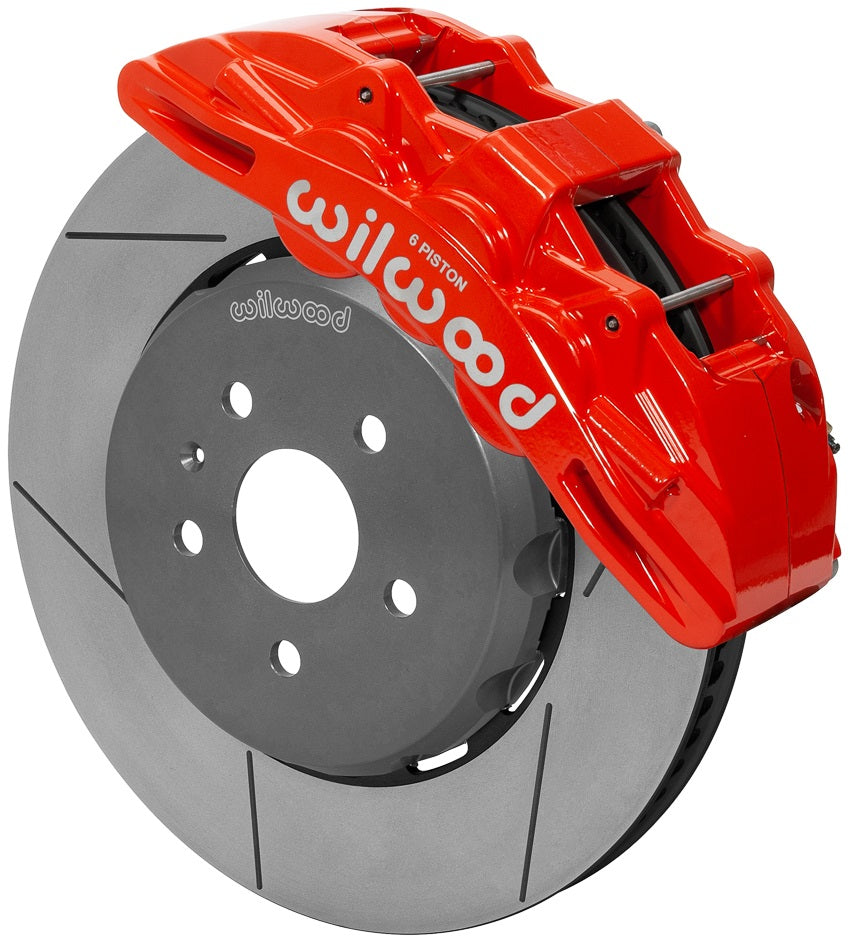

16-19 CAMARO,FRONT,15" ONE-PIECE ROTORS,SX6R CALIPERS,RED

BRAND NEW WILWOOD SX6R BIG BRAKE DYNAMIC FRONT BRAKE KIT (PART #140-15441-R) FOR BOTH FRONT WHEELS.

SX6R CALIPERS WERE DESIGNED FOR THE SPECIFIC PURPOSE OF PROVIDING HIGH CAPACITY BRAKING WITH LARGE DIAMETER ROTORS FOR EXTREME DUTY AND RACE VEHICLES. IT IS THE LARGEST DUAL PURPOSE CALIPER WILWOOD HAS PRODUCED, PROVIDING BIG BRAKE PERFORMANCE FOR SHOW AND DUAL PURPOSE STREET AND TRACK VEHICLES.

OFFERING ADDITIONAL ENHANCED BRAKING WITH WHEEL AND TIRE UPGRADES. KITS ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTION. DIRECTIONAL 72 STAGGERED VANE 14.00" TO 15.00" ROTORS PROVIDE MAXIMUM COOLING FOR SUSTAINED HIGH HEAT DURABILITY.

NOTE: THESE KITS REQUIRE AT LEAST 19" DIAMETER WHEELS.

COMPATIBLE WITH:

• CHEVROLET:
• CAMARO 2018-2019 LS
• CAMARO 2017-2019 LT
• CAMARO 2016 LT (J55 BRAKES)
• CAMARO 2016 LT (JL9 BRAKES)
• CAMARO 2016-2019 SS
• CAMARO 2017-2019 ZL1

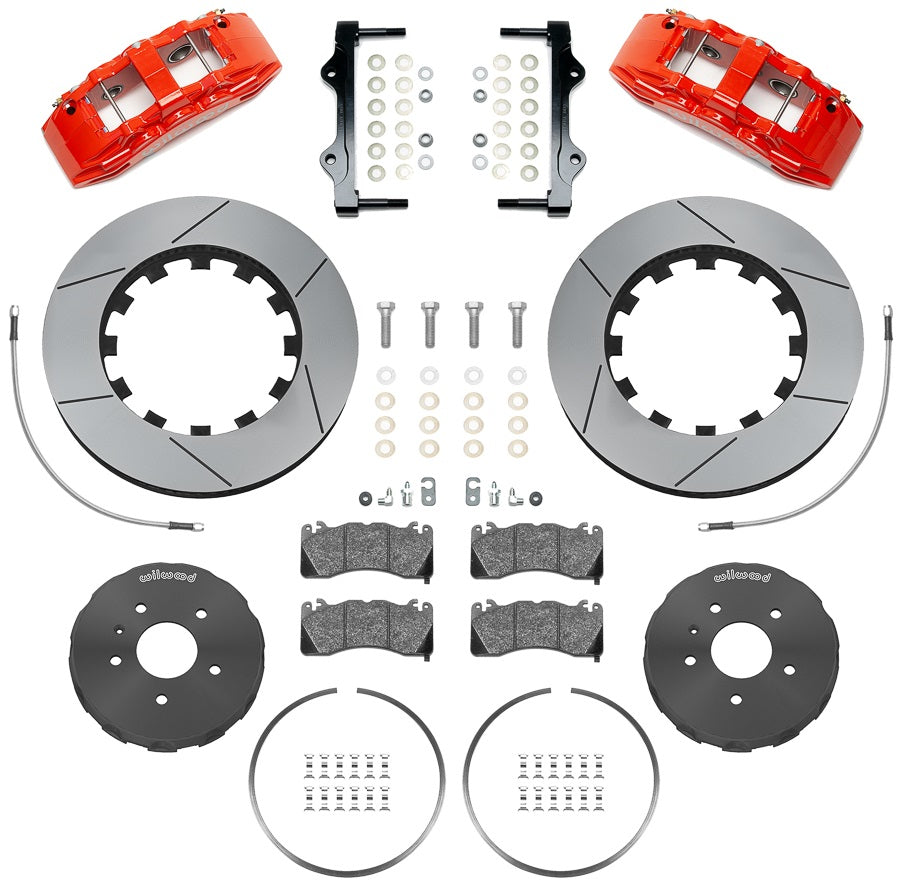

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.25" THICK X 15" O.D. ROTORS
• SX6R 6 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• PM - PROMATRIX BRAKE PADS
• BRAKE HATS
• ALL BOLTS, WASHERS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 98 LBS.

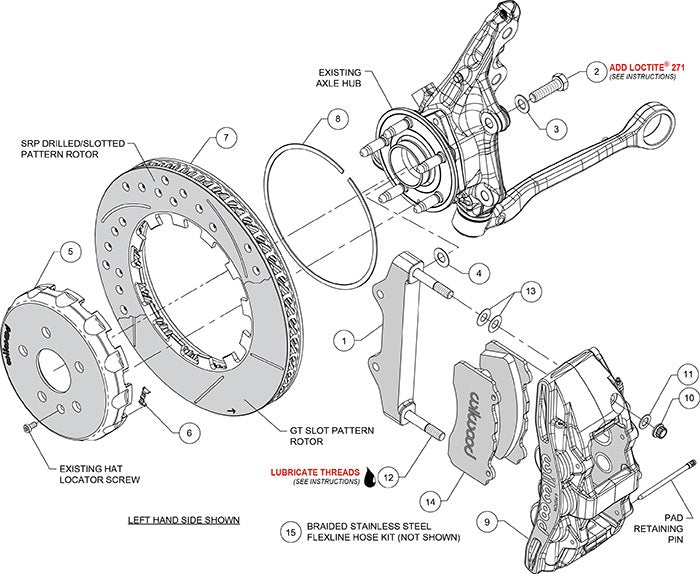

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
