BRAND NEW WILWOOD CORVETTE DPC56 BRAKE CALIPER SET FOR BOTH REAR WHEELS.

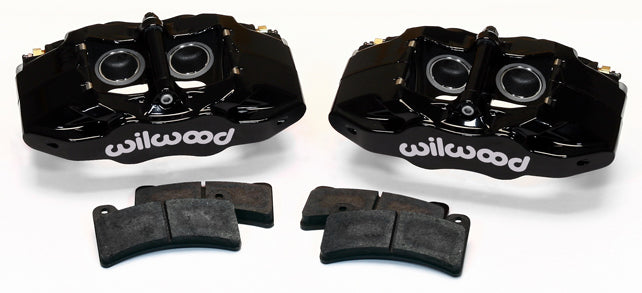

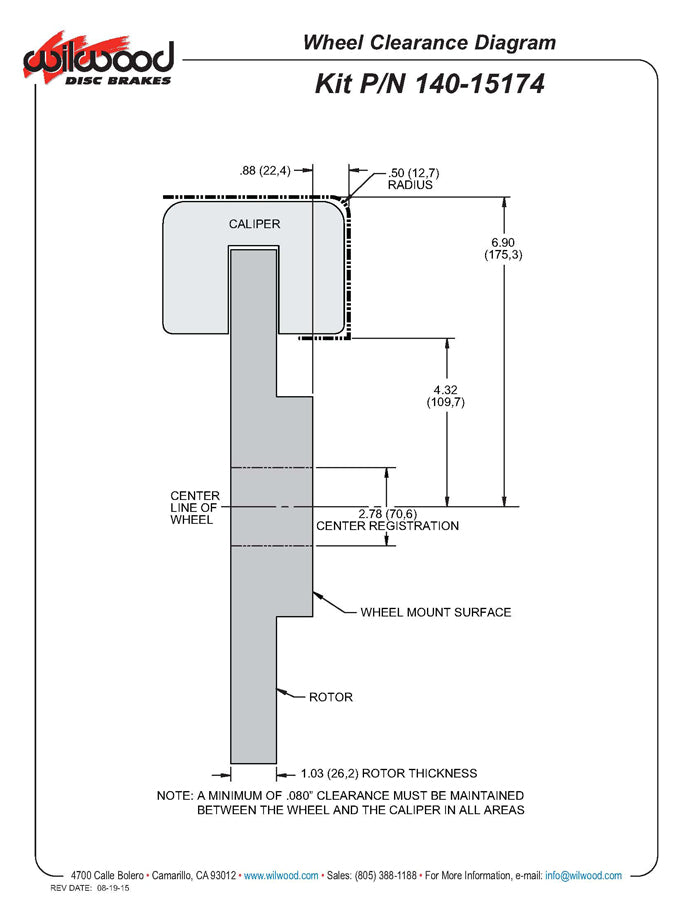

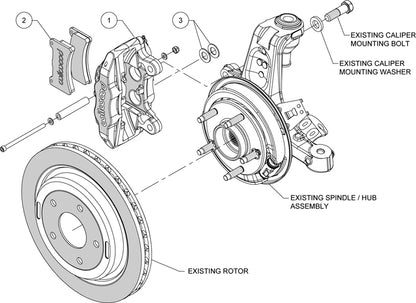

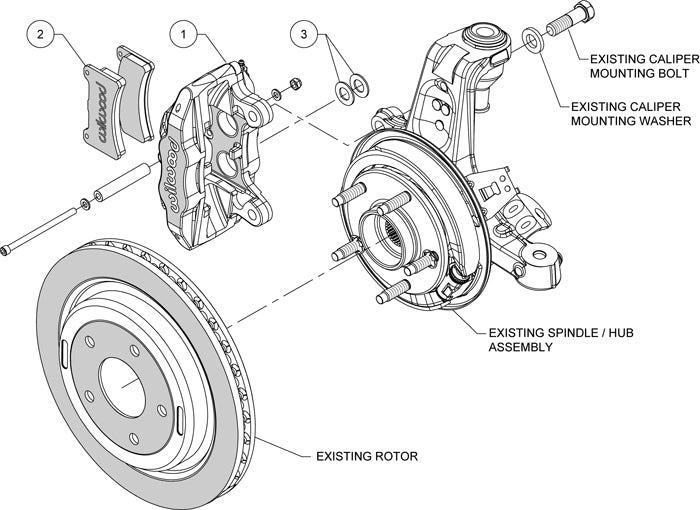

ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED.
FEATURES POWDER COATED BLACK CALIPERS.FITS:
- 1997-2004 CHEVROLET CORVETTE C-5 & Z06
- 2005-2013 CHEVROLET CORVETTE C-6BASE
WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
DPC56 REAR CALIPERS ARE ENGINEERED AS A HIGH PERFORMANCE STREET AND CUSTOM REPLACEMENT FOR CORVETTES AND HOT RODS USING CORVETTE SUSPENSION. THESE KITS COMBINE THE HIGH-TECH STYLING AND SUPERIOR PERFORMANCE OF THE DPC56 CALIPERS WITH THE POSITIVE RESPONSE, LONG WEAR, HIGH FADE RESISTANCE, AND EASY CLEAN PROPERTIES OF THE BP-10 COMPOUND SMART PADS. THESE KITS ARE A DIRECT BOLT-ON REPLACEMENT FOR THE OE CALIPERS ON ALL MODELS OF THE C5 FROM 1997 TO 2004, AND ALL C6 BASE MODELS FROM 2005 TO 2013 USING THE EXISTING 12.00" DIAMETER OE DIMENSION REAR ROTORS THE CALIPERS ATTACH DIRECTLY TO THE CORVETTE SPINDLE WITHOUT THE NEED FOR BRACKETS OR ADAPTERS AND ACCEPT ALL TYPES OF OE BANJO BOLT STYLE BRAKE HOSES.KIT INCLUDES PARTS FOR BOTH REAR WHEELS:
- DPC56 4 PISTON BRAKE CALIPERS - BLACK
- BP-10 SMART COMPOUND BRAKE PADS
COMPLETE KIT WEIGHS APPROXIMATELY 12 LBS.
YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
