51-59 CHEVY TRUCK,FRONT,DP6,11.86",RED

BRAND NEW WILWOOD CLASSIC BOLT-ON FRONT HUB & 11.86" 1- PIECE DISC BRAKE KIT (PART #140-14974-R) FOR BOTH FRONT WHEELS.

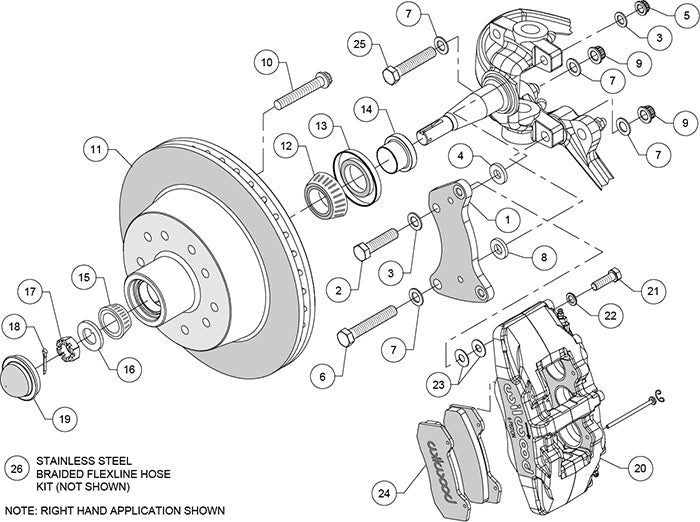

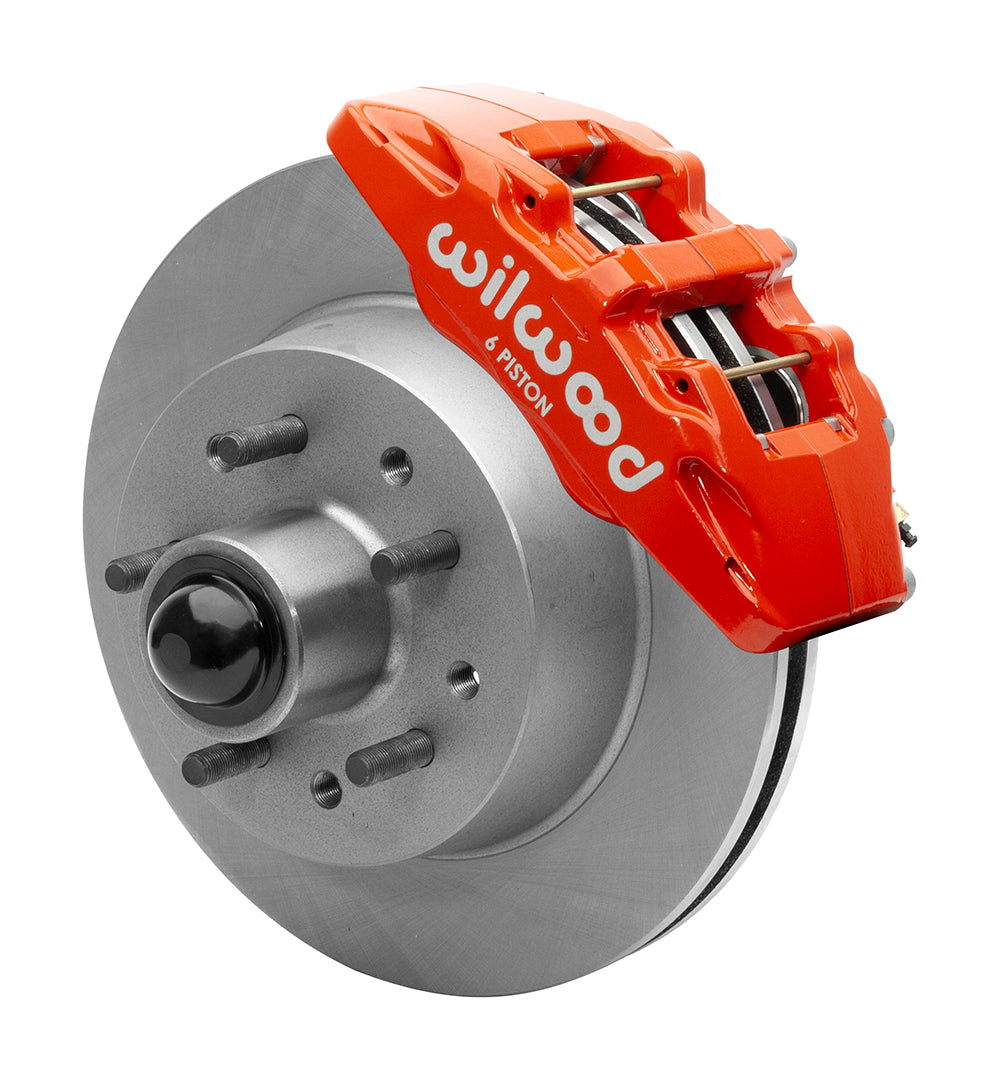

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED RED CALIPERS.

FITS:

• CHEVROLET:
  • 1954 1500, 1/2 TON
  • 1956-1959 3100 3A
  • 1951-1952 FLEETLINE TRUCK, (DELUXE/SPECIAL)
  • 1951-1959 SUBURBAN, 1/2 TON
  • 1951-1958 TRUCK, 1/2 TON
• GMC:
  • 1951-1959 100, 1/2 TON
  • 1951-1955 100-22, 1/2 TON
  • 1955-1959 SUBURBAN, 1/2 TON
  • 1951-1959 TRUCK, 1/2 TON

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS CLASSIC SERIES FRONT DISC BRAKE KITS FOR CHEVROLET AND GMC 1/2 TON TRUCKS FROM 1951 TO 1959, OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DRUM SPINDLES. A COMPLETELY NEW KIT DESIGN, FEATURING A ONE PIECE 11.86" X 1.10" ROTOR AND HUB ASSEMBLY WITH A DUAL 5 X 4.75" AND 5 X 5.00" WHEEL BOLT CIRCLE. BASED ON THE VENERABLE FORGED BILLET DYNAPRO 6 CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND SHOULD PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR 15" WHEELS. DP6 1 PIECE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS. KITS COME COMPLETE WITH CALIPERS, ROTORS AND HUB ASSEMBLY, BRACKETS, BRAKE LINE KIT AND HARDWARE.

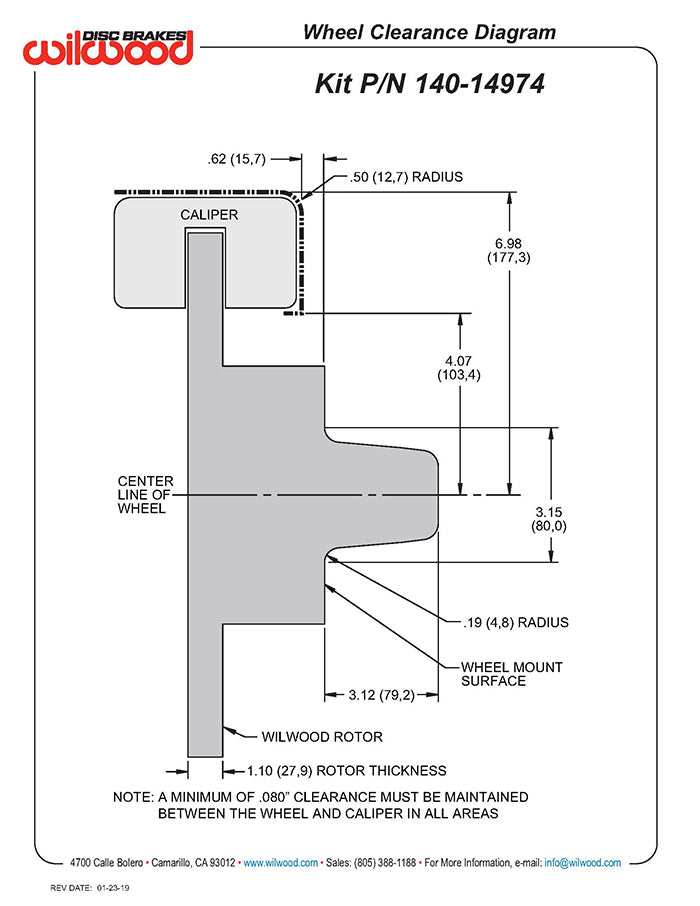

THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

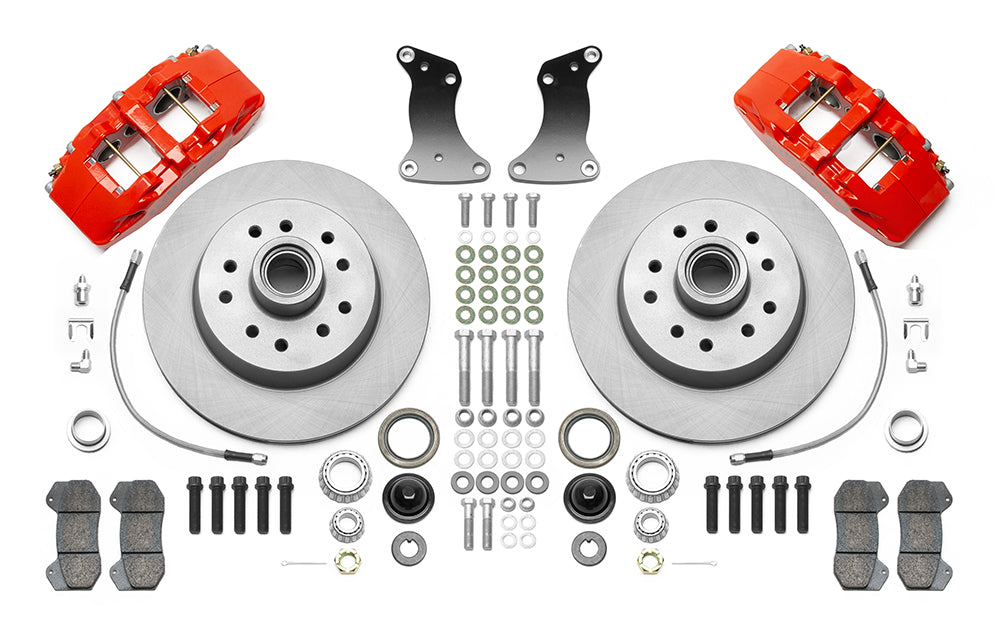

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.10" THICK X 11.86" O.D. 1-PIECE ROTORS
• FORGED DYNAPRO 6 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BEARINGS, RACES, SEALS, DUST CAPS, STUDS, &
• ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 82 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
