05-23 TOYOTA TACOMA,FRONT,SL6R,13",RED

BRAND NEW WILWOOD PREMIUM BIG BRAKE BOLT-ON FRONT, 12.90" DISC BRAKE KIT (PART #140-14577-R) FOR BOTH FRONT WHEELS.

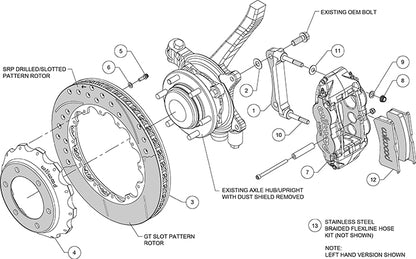

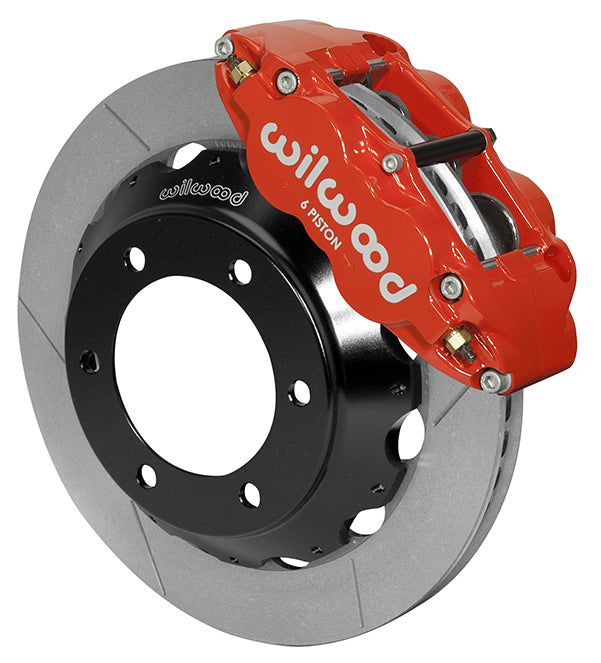

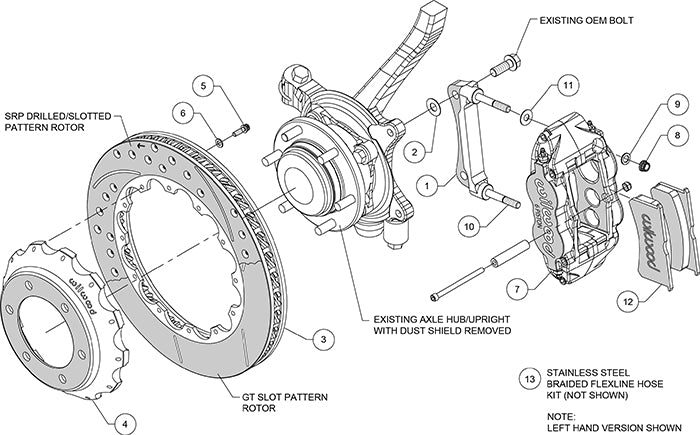

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED RED CALIPERS.

FITS:

• TOYOTA: 2005-2023 TACOMA 2WD & 4WD, 6-LUG > 2007-2014 FJ CRUISER > 2003-2014 4-RUNNER | LEXUS: 2003-2009 GX470 > 2010-2014 GX460

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THE UNSURPASSED BRAKING CAPACITY OF THE FORGED NARROW SUPERLITE 6R SIX-PISTON CALIPER SERVES AS THE BASE OF THESE 13" BIG ROTOR KITS. FNSL6R KITS ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED. BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON HIGH PERFORMANCE STREET/OFF-ROAD MACHINES.

THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

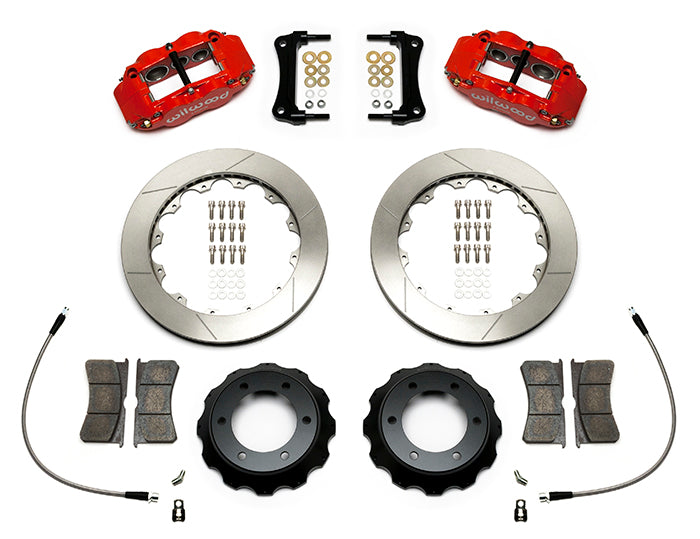

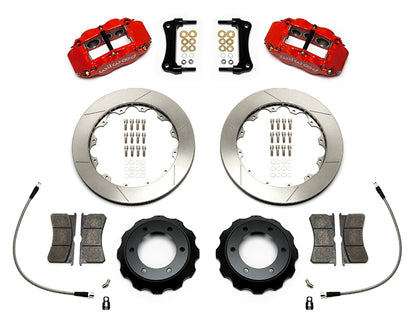

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.10" THICK X 12.90" O.D. ROTORS
• FORGED NARROW SUPERLITE 6 PISTON RADIAL CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• STEEL BRAIDED LINES WITH FITTINGS &
• ALL BOLTS, NUTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 49 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
