WWE PRO SPINDLE,5x5",FRONT,FDL,12,DR,RED

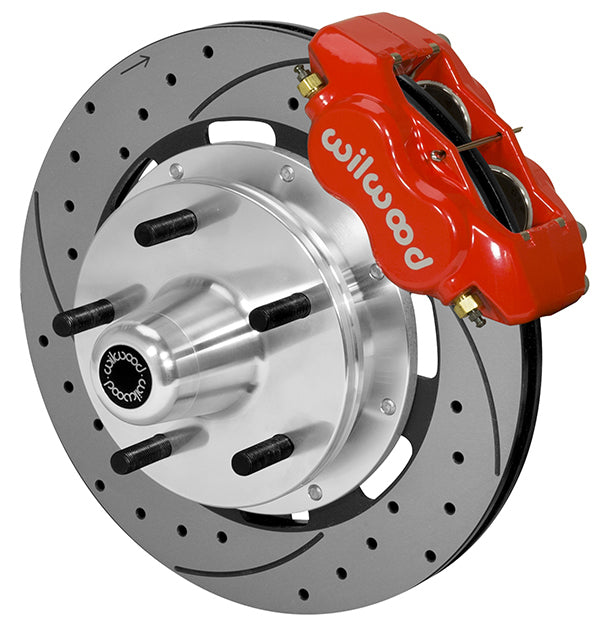

BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNALITE BOLT-ON FRONT 5X5" HUB & 12.19" DISC BRAKE KIT (PART #140-14532-DR) FOR BOTH FRONT WHEELS.

THIS KIT FITS WILWOODS WWE PRO SPINDLES (#830-10832 STOCK HEIGHT OR #830-9807 2" DROP). WILWOODS PROSPINDLE IS SPECIFICALLY DESIGNED FOR USE IN FABRICATED A-ARM SUSPENSIONS ON KIT CARS, STREET RODS, DRAG CARS AND OTHER CUSTOM OR RACE APPLICATIONS THAT ARE CONFIGURED AROUND PINTO/MUSTANG LL SUSPENSION GEOMETRY. THOSE SPINDLES USE COMMON PINTO AND MUSTANG LL TIE ROD ENDS, BALL JOINTS, WHEEL BEARINGS AND SEALS. WE DO HAVE THOSE SPINDLES AVAILABLE. THIS BRAKE KIT IS ONLY DESIGNED FOR USE WITH THE WWE PRO SPINDLES. IT WONT FIT OTHER SPINDLES.

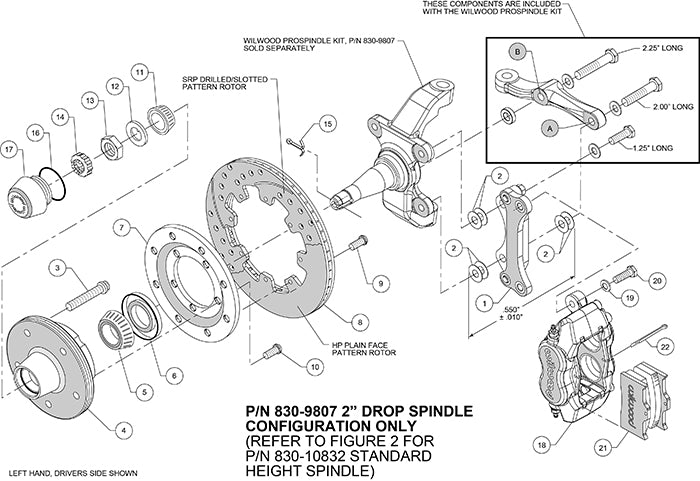

SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED WITH THIS BRAKE KIT.

FEATURES DRILLED & SLOTTED ROTORS AND POWDER-COATED RED CALIPERS.

FITS:

• VEHICLES EQUIPPED WITH WILWOOD WWE PRO-SPINDLES (#830-10832 STOCK HEIGHT OR #830-9807 2" DROP), WITH A 5X5" BOLT PATTERN ON THE WHEELS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FDLI BIG BRAKE FRONT 5 X 5.00" HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THESE KITS ARE SPECIALLY DESIGNED FOR 5 X 5.00" BOLT CIRCLE WHEELS. FORGED BILLET DYNALITE CALIPERS, 12.19" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET / STRIP MACHINES.

THESE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

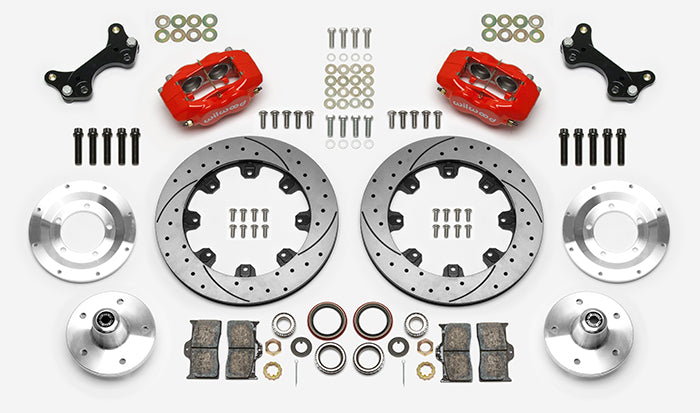

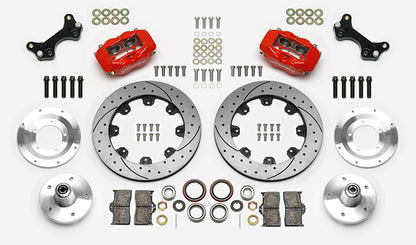

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, .810" THICK X 12.19" O.D. ROTORS
• DYNALITE 4 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HUBS - 5X5" BOLT PATTERN
• BEARINGS, SEALS, WASHERS, STUDS, &
• ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 49 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.

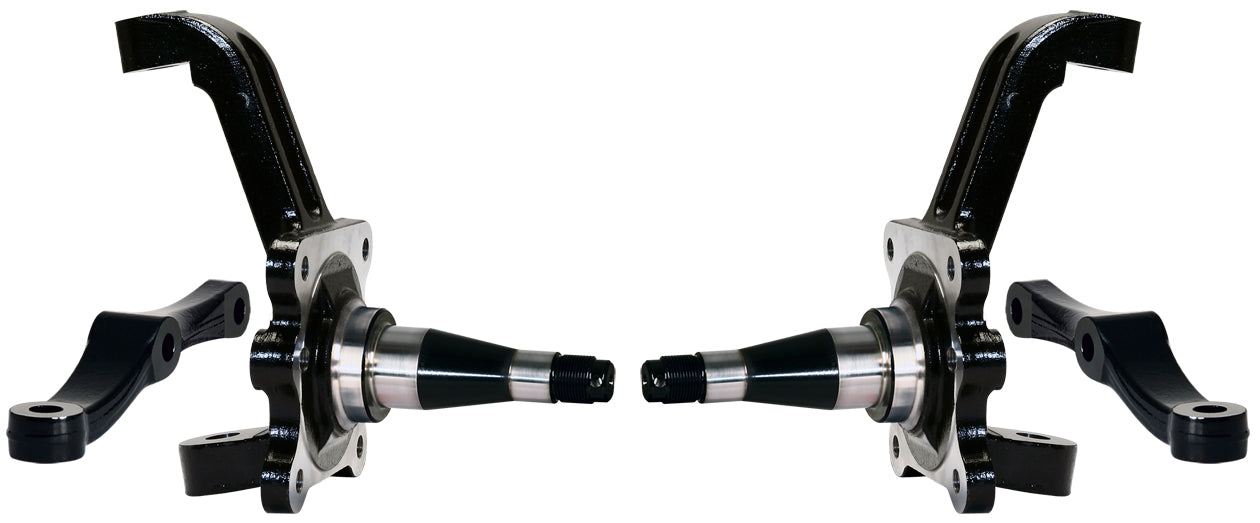

WILWOODS WWE STOCK HEIGHT PROSPINDLES SHOWN BELOW FOR REFERENCE ONLY:

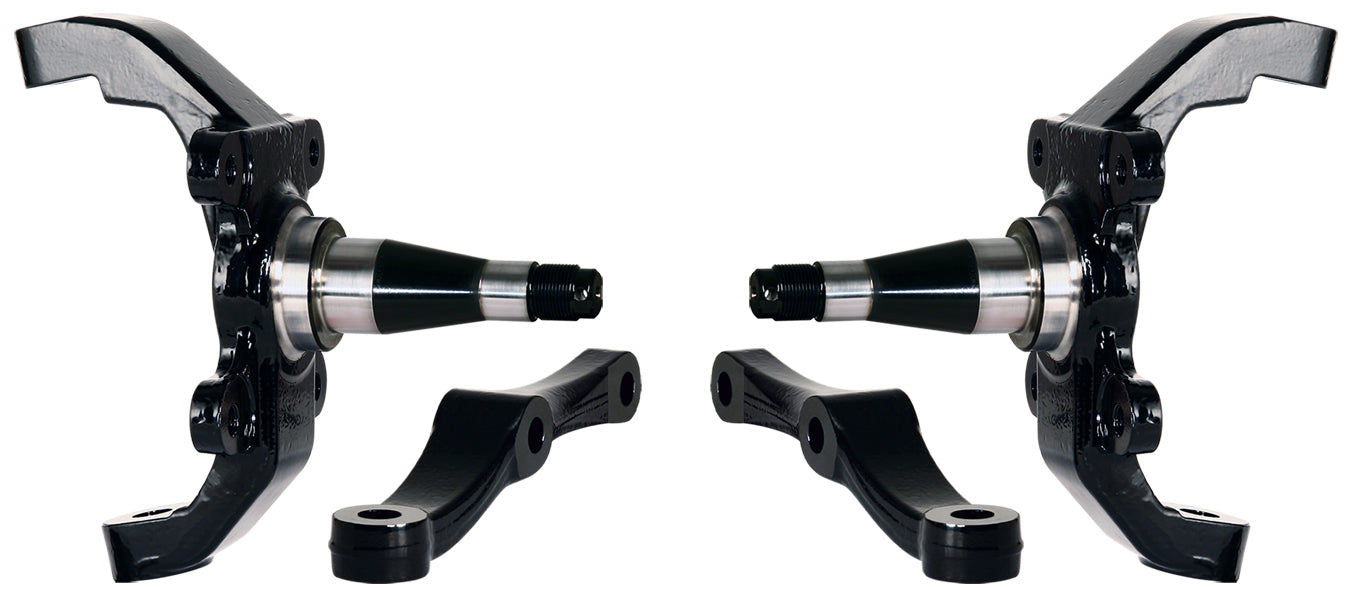

WILWOODS WWE 2" DROP PROSPINDLES SHOWN BELOW FOR REFERENCE ONLY:
