74-80 PINTO KIT,5x5",FRONT,FDL,12.19"

BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNALITE BOLT-ON FRONT 5X5" HUB & 12.19" DISC BRAKE KIT (PART #140-14530) FOR BOTH FRONT WHEELS.

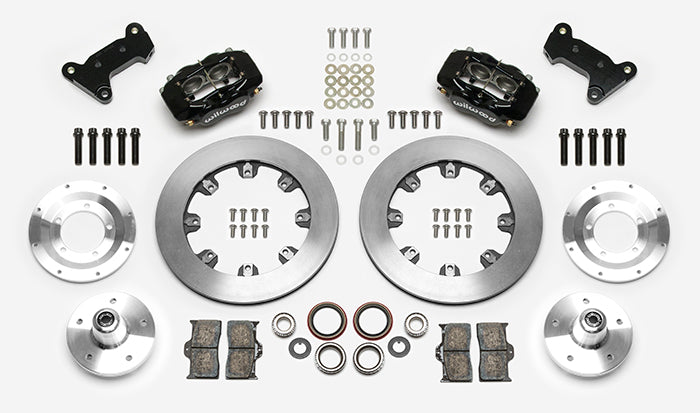

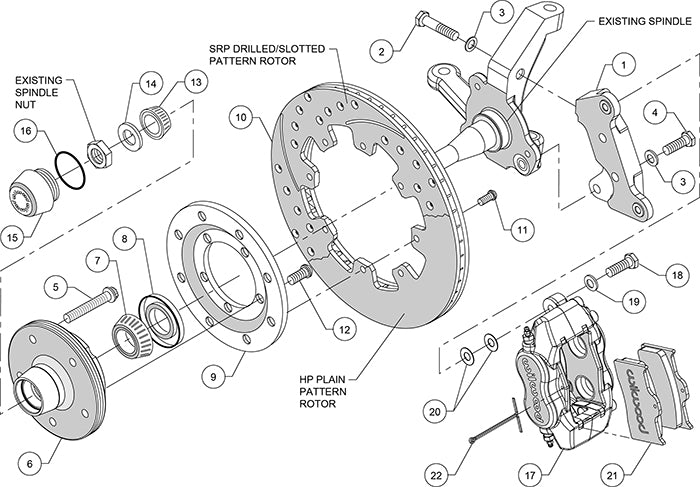

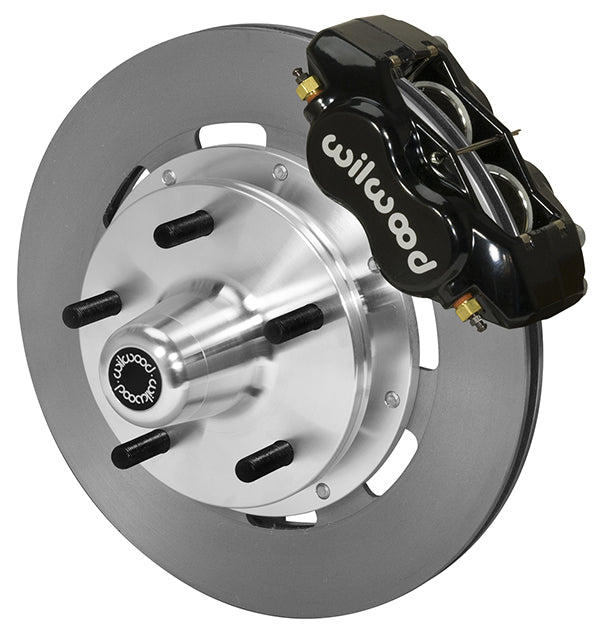

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• FORD:
  • 1974-1978 MUSTANG II***
  • 1974-1980 PINTO***
• MERCURY:
  • 1975-1980 BOBCAT***
• ANY STREET ROD USING PINTO/MUSTANG II SPINDLES***
• ***THIS KIT FITS THE ABOVE APPLICATIONS WITH A 5X5" BOLT PATTERN ON THE WHEELS***

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FDLI BIG BRAKE FRONT 5 X 5.00" HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. THESE KITS ARE SPECIALLY DESIGNED FOR 5 X 5.00" BOLT CIRCLE WHEELS. FORGED BILLET DYNALITE CALIPERS, 12.19" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO COMPLIMENT WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND PERFORMANCE STREET / STRIP MACHINES. A FULL RANGE OF OPTIONS FOR CALIPER FINISH AND ROTOR DESIGN PROVIDE CUSTOM BUILDERS WITH THE ABILITY TO PERSONALIZE THE STYLE AND PERFORMANCE REQUIREMENTS OF THE MILDEST TO THE WILDEST MACHINES.

THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• .810" THICK X 12.19" O.D. ROTORS
• FORGED DYNALITE INTERNAL 4 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HUBS - 5X5" BOLT PATTERN
• BEARINGS, SEALS, WASHERS, STUDS, &
• ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 49 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
