74-80 FORD PINTO/MUSTANG II KIT,FRONT,11

BRAND NEW WILWOOD CLASSIC BOLT-ON FRONT HUB & 11" 1- PIECE DISC BRAKE KIT (PART #140-14271-R) FOR BOTH FRONT WHEELS.

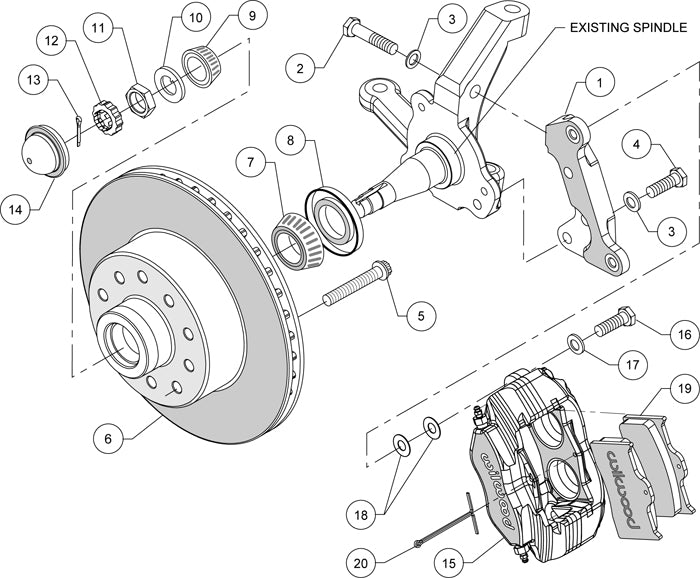

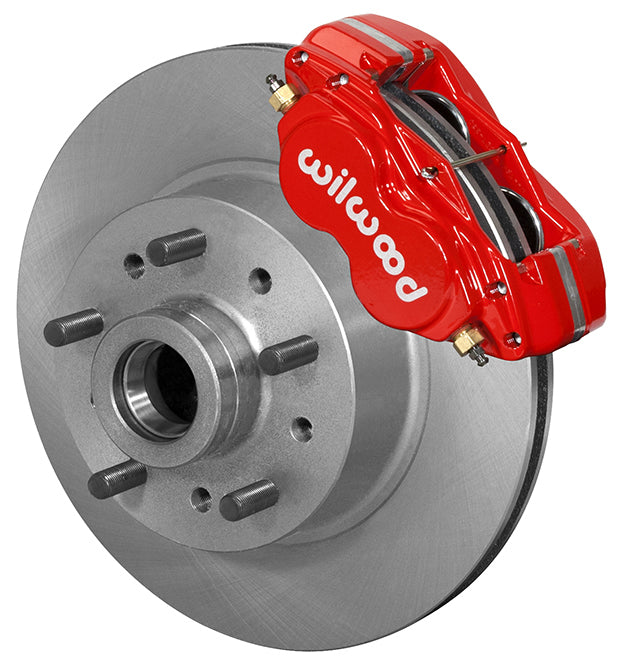

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED RED CALIPERS.

FITS:

• FORD:
  • 1974-1978 MUSTANG II
  • 1974-1980 PINTO
• MERCURY:
  • 1975-1980 BOBCAT
• AFTERMARKET MUSTANG II & PINTO SPINDLES:
  • THESE KITS WILL ALSO FIT ANY AFTERMARKET "MUSTANG II" AND "PINTO" STYLE SPINDLES, BOTH STOCK-HEIGHT AND DROP SPINDLES, INCLUDING BUT NOT LIMITED TO SOUTHWEST SPEED, CPP, AND MAGNUM FORCE BRANDS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS CLASSIC SERIES FRONT DISC BRAKE KITS OFFER AN ECONOMICAL BRAKING SOLUTION FOR MUSTANG II DISC BRAKE SPINDLES. A COMPLETELY NEW KIT DESIGN, FEATURING A LARGE 11.03" X 0.88" ROTOR AND HUB ASSEMBLY. NOW UPGRADED WITH A NEW DESIGN DUAL BOLT PATTERN ROTOR WITH SCREW IN 1/2-20 STUDS, PROVIDING BOTH A 5 X 4.50" AND 5 X 4.75" WHEEL BOLT CIRCLE OPTIONS. THIS CLASSIC SERIES KIT FEATURES THE FDL-M 4-PISTON FORGED ALUMINUM DYNALITE CALIPERS. KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. INTENDED VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION. FDL-M 1 PIECE KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS.

THESE BRAKE KITS WILL FIT ANY 15" DIAMETER OR LARGER WHEELS, AS WELL AS MANY 14" WHEELS. WE HAVE INCLUDED A WHEEL DIAGRAM BELOW THAT CAN BE USED TO COMPARED AGAINST THE REAR OF YOUR 14" WHEELS TO CONFIRM CLEARANCE.

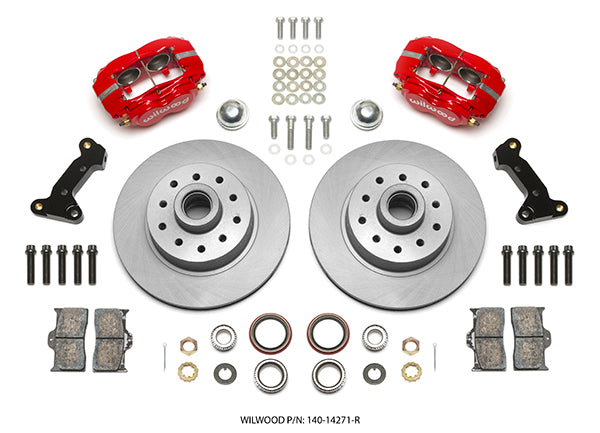

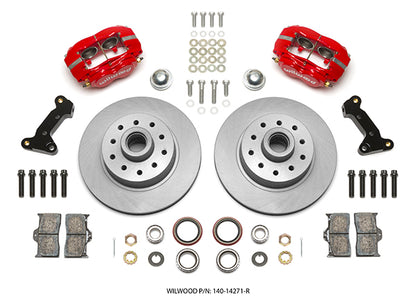

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 0.88" THICK X 11.03" O.D. 1-PIECE ROTORS
• FORGED DYNALITE-M 4 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BEARINGS, RACES, SEALS, DUST CAPS, &
• ALL BOLTS, WASHERS, SHIMS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 61 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
