16-23 MAZDA MIATA,FRONT,13" ROTORS,RED CALIPERS,WITH LINES

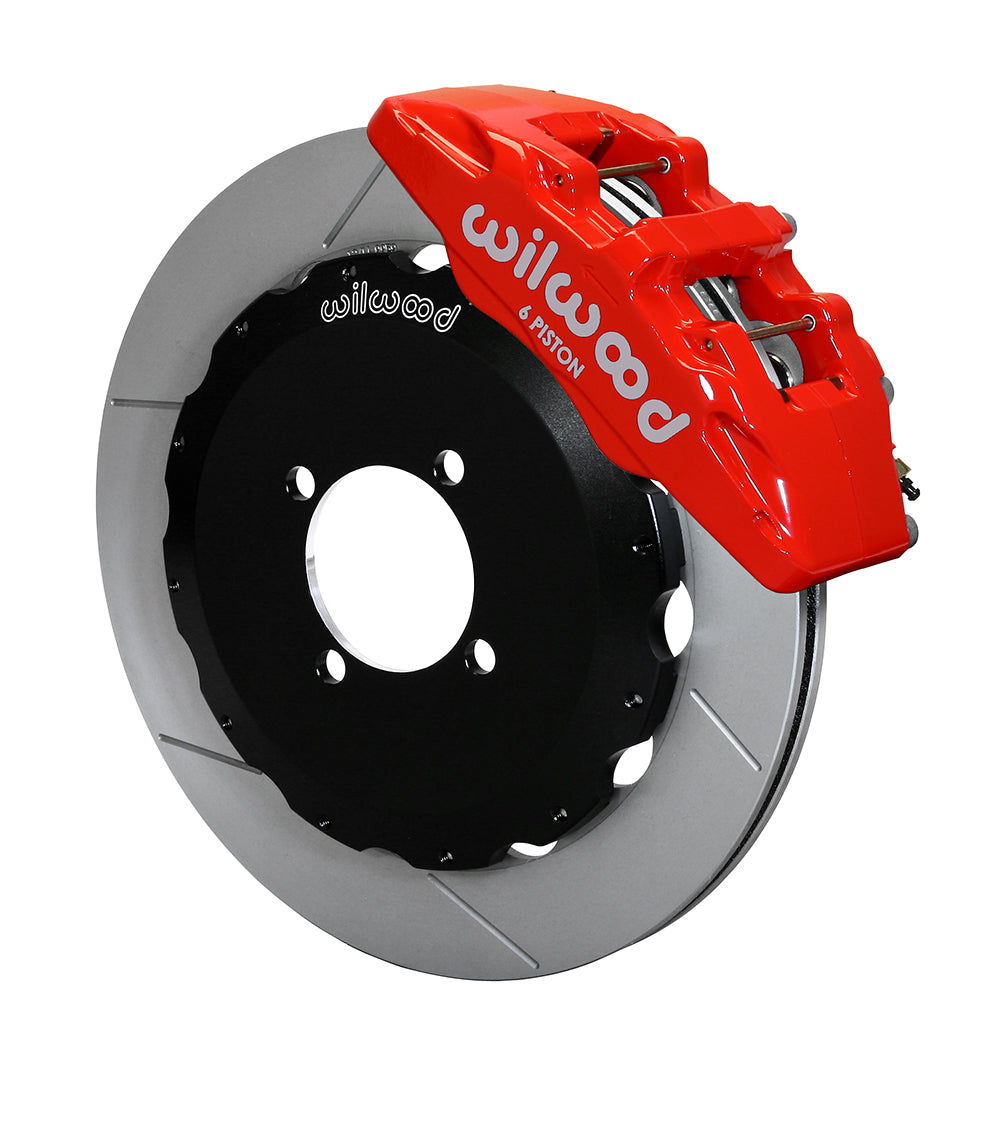

BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNAPRO 6 PISTON CALIPER, BOLT-ON FRONT HAT, & 12.88" DISC BRAKE KIT (PART #140-14234-R) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THE ENHANCED BRAKE CAPACITY AND PAD PERFORMANCE OF THE DYNAPRO 6 FORGED BILLET SIX-PISTON CALIPER IS COMBINED WITH 12.88" DIAMETER ROTORS FOR THIS GROUP OF FRONT WHEEL DRIVE SPORT COMPACT KITS. THESE KITS ARE THE PERFECT COMPLIMENT TO WHEEL, TIRE, AND SUSPENSION UPGRADES ON DAILY DRIVERS, COMPETITION VEHICLES, AND CUSTOM STYLED SHOW MACHINES. EACH KIT IS ENGINEERED VEHICLE SPECIFIC TO MAINTAIN FULL COMPATIBILITY WITH THE OE MASTER CYLINDER OUTPUT AND FACTORY ABS FUNCTIONS. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS ENABLE THE BUILDER TO PERSONALIZE THE STYLE AND OPTIMIZE BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

COMPATIBLE WITH:

• MAZDA:
• 2016-2020 MX-5 MIATA CLUB, GRAND TOURING, SPORT
• 2018-2019 MX-5 MIATA GS, GT, RF GT
• 2018-2020 MX-5 MIATA RF CLUB, RF GRAND TOURING
• 2017 MX-5 MIATA RF
• 2018 MX-5 MIATA GX, RF GS
• 2019 MX-5 MIATA GS-P, RF GS-P
• FIAT:
• 2017 124 SPIDER

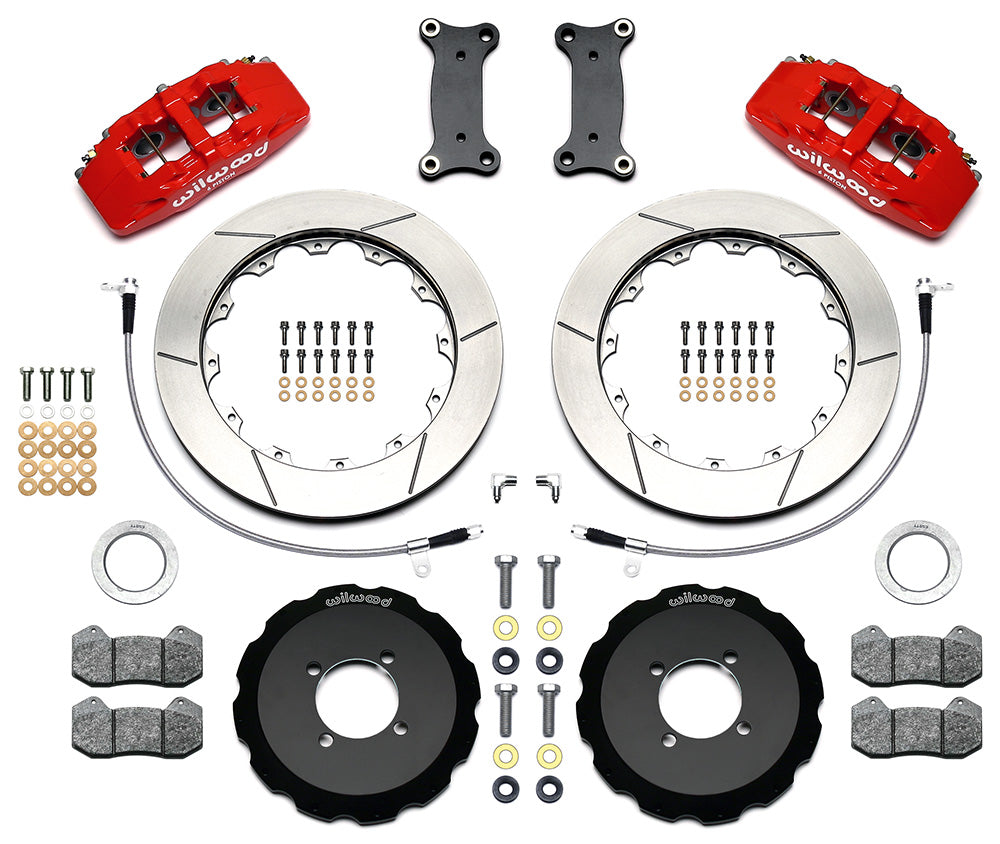

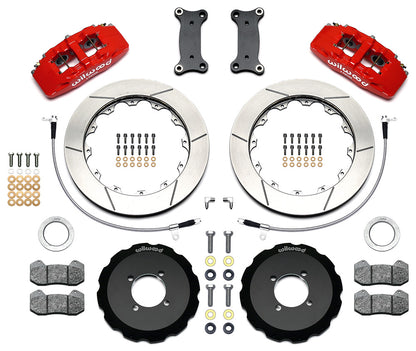

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• .810" THICK X 12.88" O.D. ROTORS
• DYNAPRO 6 PISTON CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• BRAKE LINES WITH FITTINGS &
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 44 LBS.

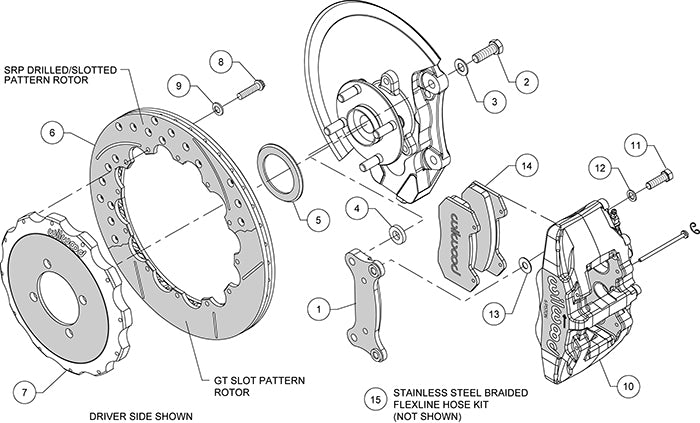

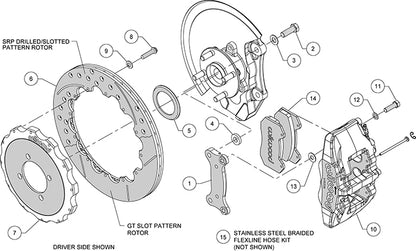

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
