GM ELIMINATOR,2.91",REAR MC4 PB,12",RED

BRAND NEW WILWOOD BOLT-ON REAR PARKING BRAKE 12.19" DISC BRAKE KIT (PART #140-14224-R) FOR BOTH REAR WHEELS.

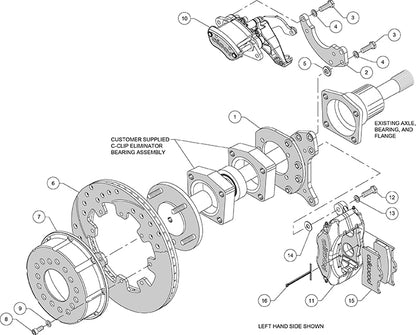

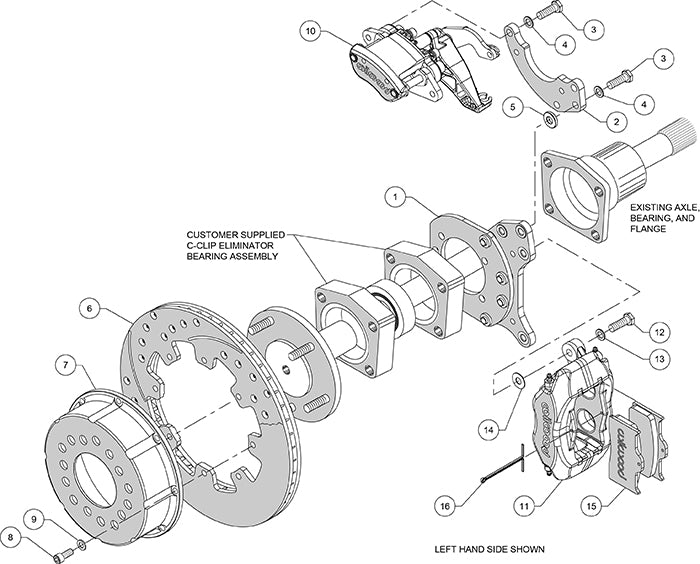

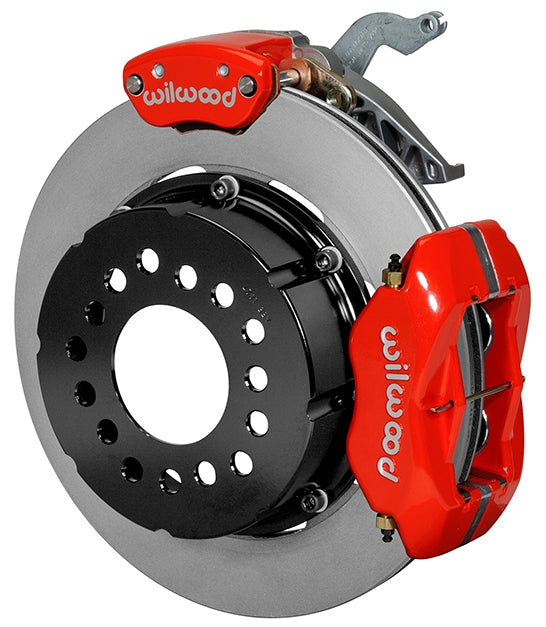

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED RED CALIPERS.

FITS:

• 10 BOLT & 12 BOLT GM REAR ENDS WITH A 2.91" AXLE FLANGE OFFSET (SEE DIAGRAMS BELOW) WITH C-CLIP ELIMINATORS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FDL PRO-SERIES MC4 PARKING REAR DISC BRAKE KITS WITH PARKING BRAKE PROVIDE A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES ON APPLICATIONS WHERE INTERNAL DRUM PARKING BRAKE ASSEMBLIES INTERFERE WITH C-CLIP ELIMINATOR ASSEMBLIES. FORGED BILLET DYNALITE FOUR PISTON CALIPERS, MC4 PARKING BRAKE CALIPERS, TWO-PIECE HAT AND ROTOR ASSEMBLIES, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF OFF-ROAD, COMPETITION, AND OTHER CUSTOMIZED APPLICATIONS.

THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

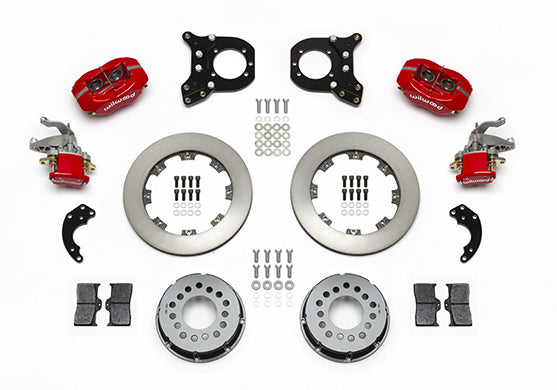

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• .810" THICK X 12.19" O.D. ROTORS
• FORGED DYNALITE CALIPERS - RED
• MC4 PARKING BRAKE CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• ALL BOLTS, WASHERS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 45 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
