07-18 JEEP WRANGLER,JK,REAR,14",RED

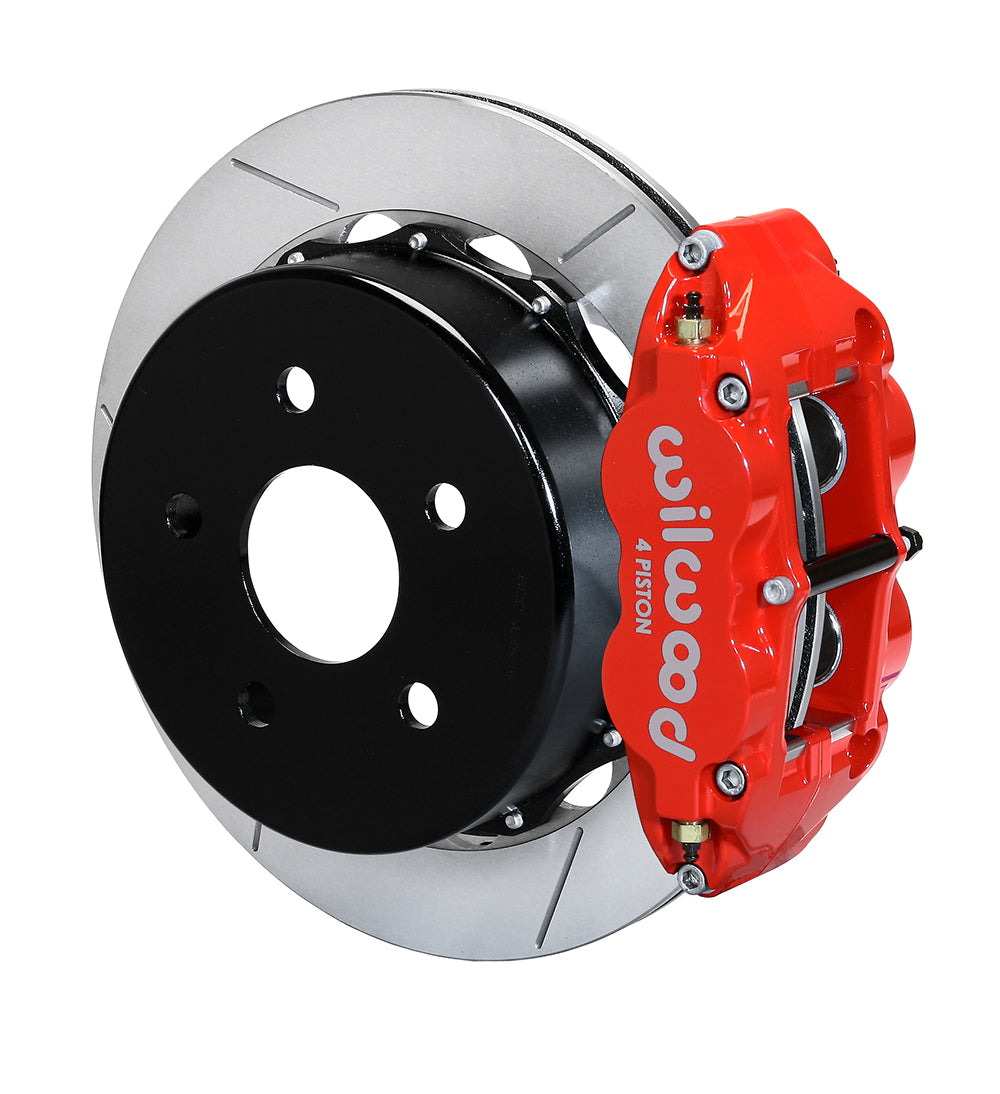

BRAND NEW WILWOOD PREMIUM BIG BRAKE BOLT-ON REAR HAT & 14" DISC BRAKE KIT (PART #140-14066-R) FOR BOTH REAR WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FORGED NARROW SUPERLITE 4R FOUR PISTON CALIPERS ARE COMBINED WITH BP-20 COMPOUND PADS AND 14" ROTORS IN THIS GROUP OF BIG BRAKE KITS FOR CUSTOM HIGH PERFORMANCE STREET AND SHOW MACHINES. THIS GROUP OF SPECIALIZED KITS FOR CARS, TRUCKS, AND SUVS RETAIN FULL USE OF THE OE PARKING BRAKE, MASTER CYLINDER OUTPUT, AND ABS WHERE USED. FNSL4R REAR KITS PROVIDE COMPLIMENTARY STYLE AND PERFORMANCE WITH 13" AND LARGER FRONT BRAKE UPGRADES IN CONJUNCTION WITH WHEEL, TIRE, AND SUSPENSION UPGRADES. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS ENABLE THE BUILDER TO MATCH STYLE AND PERFORMANCE ON ALL APPLICATIONS.

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

COMPATIBLE WITH:

• JEEP:
• 2007-2018 WRANGLER JK 4X2 AND 4X4 LEFT-HAND DRIVE
• 2007-2018 WRANGLER JK 4X4 RIGHT-HAND DRIVE

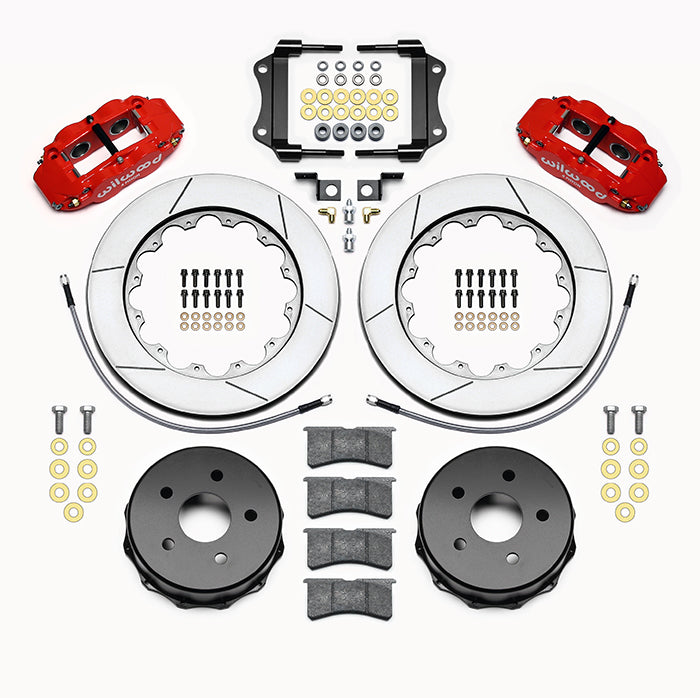

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• 0.81" THICK X 14.00" O.D. ROTORS
• NARROW SUPERLITE 4R CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-20 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• BRAKE LINES WITH FITTINGS &
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 63 LBS.

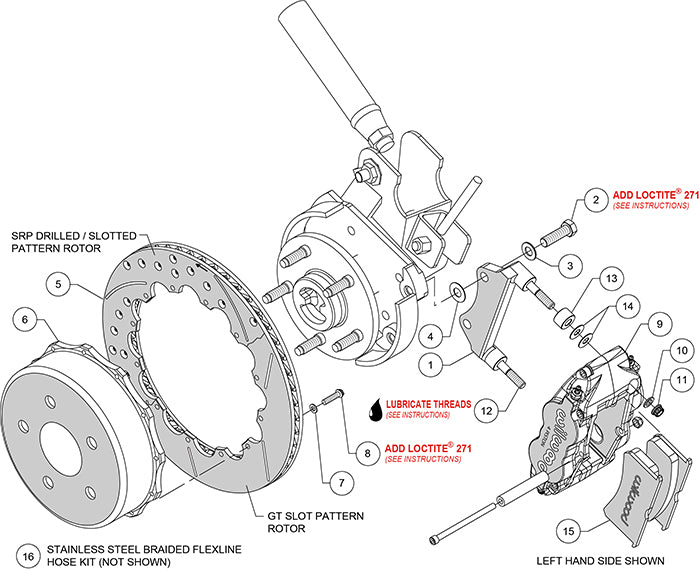

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
