14-UP CORVETTE C7,REAR,14.25" DRILLED ROTORS,RED

14-UP CORVETTE C7,REAR,14.25" DRILLED ROTORS,RED

WIL 140-13698DR

$2,349.99
$2,349.99
View full details
  • BRAND NEW WILWOOD PREMIUIM BIG BRAKE AERO4 OE PARKING BRAKE CALIPER, BOLT-ON 14.25" DISC BRAKE KIT FOR BOTH REAR WHEELS.

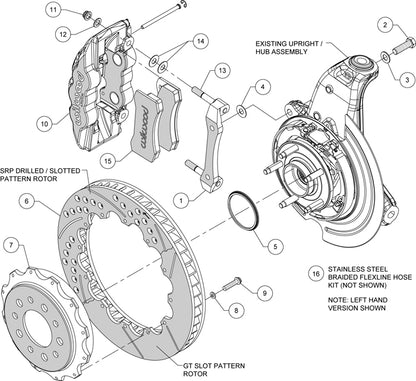

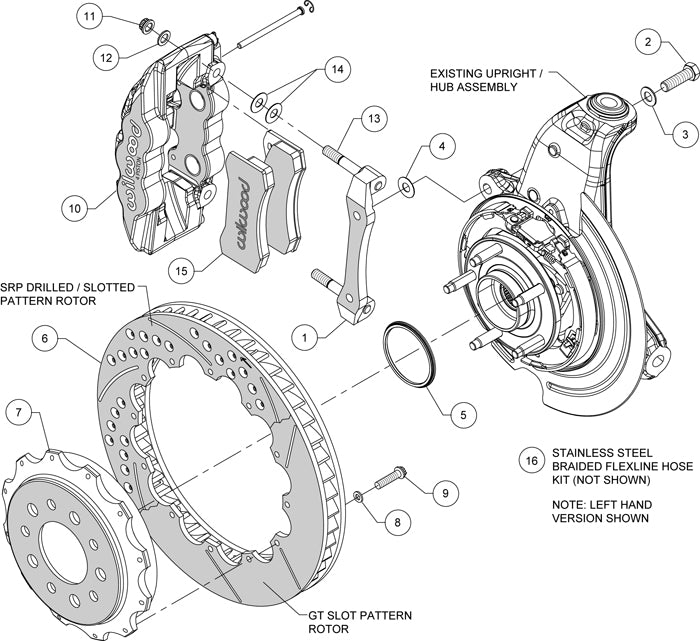

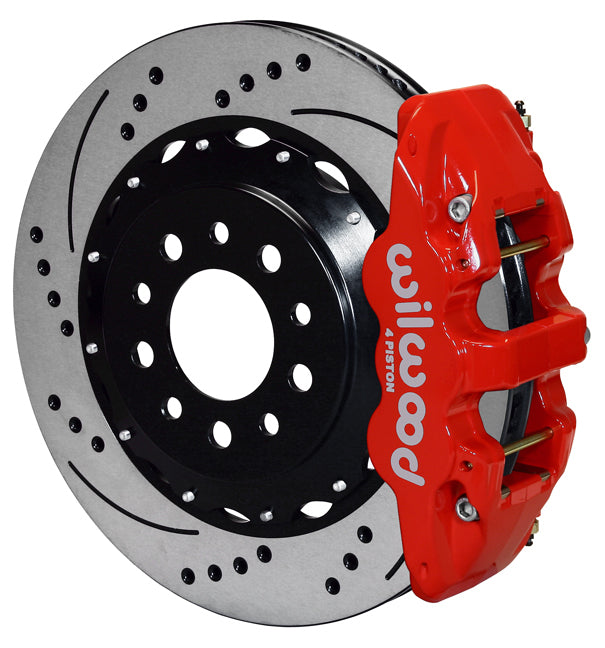

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES SRP DRILLED & SLOTTED ROTORS WITH RED CALIPERS.

    • FITS:

    • 2014-2015 CORVETTE STINGRAY
    • 2015 CORVETTE Z06
    • 2014-2015 CORVETTE Z51

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • AERO4 BIG BRAKE REAR AXLE KITS REPLACE THE FACTORY DISC BRAKES AND USE THE OE PARKING BRAKE ASSEMBLY AS A COMPLIMENT TO FRONT BIG BRAKE UPGRADES ON LATE MODEL HIGH PERFORMANCE VEHICLES.

  • HIGH CAPACITY BRAKING FROM THE W4AR CALIPERS, BP-10 COMPOUND PADS, AND OVERSIZED 14" ROTORS ARE MATCHED TO THE OE MASTER CYLINDER OUTPUT, ABS FUNCTION, AND INDIVIDUAL VEHICLE BIAS REQUIREMENTS. ENHANCED BRAKE PERFORMANCE, INCREASED DURABILITY, AND HIGH-TECH STYLE COMPLIMENT BIG WHEEL, TIRE, AND SUSPENSION UPGRADES ON CUSTOMIZED VEHICLES AND ALL OTHERS WITH INCREASED BRAKE REQUIREMENTS.

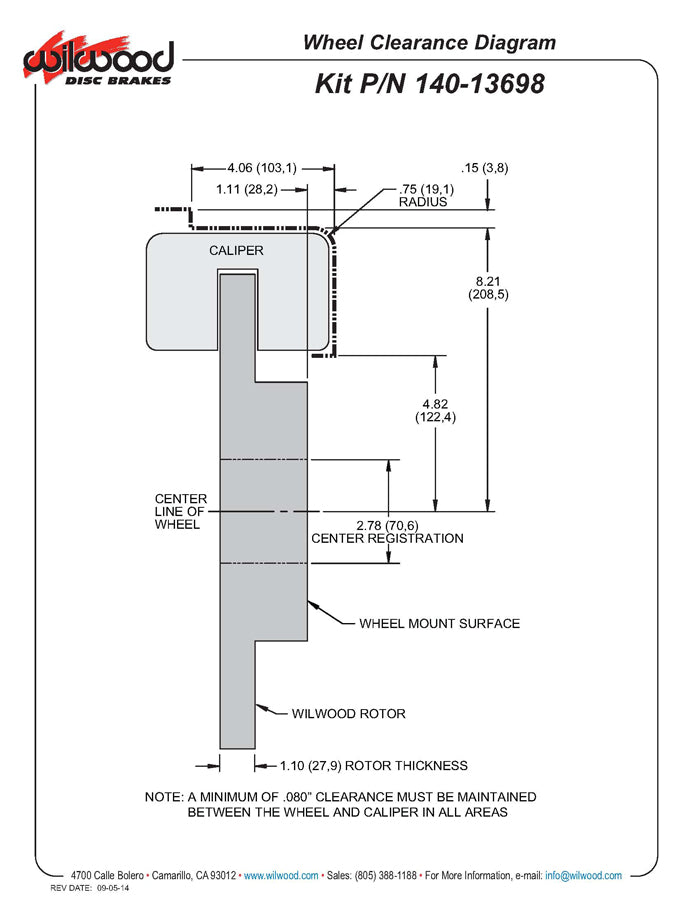

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

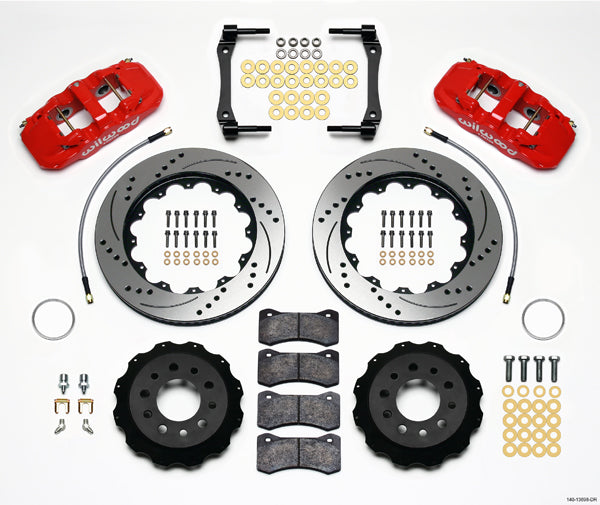

    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

    • DRILLED & SLOTTED 1.25" X 14.25" O.D. SRP ROTORS (12 x 8.75" Bolt Circle)
    • AEROLITE 4 PISTON CALIPERS - RED
    • CALIPER MOUNTING BRACKET
    • ROTOR REGISTRATION ADAPTER
    • BP-20 SMART COMPOUND BRAKE PADS
    • BRAKE HATS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 71 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
    • Bolt-On Disc Brake Kits > Chevy/GM Kits > Corvette Rear Kits, 2014-2019
