58-68 FORD/MERCURY KIT,FRONT,13",RED

58-68 FORD/MERCURY KIT,FRONT,13",RED

WIL 140-13654R

$1,459.99
$1,459.99
View full details

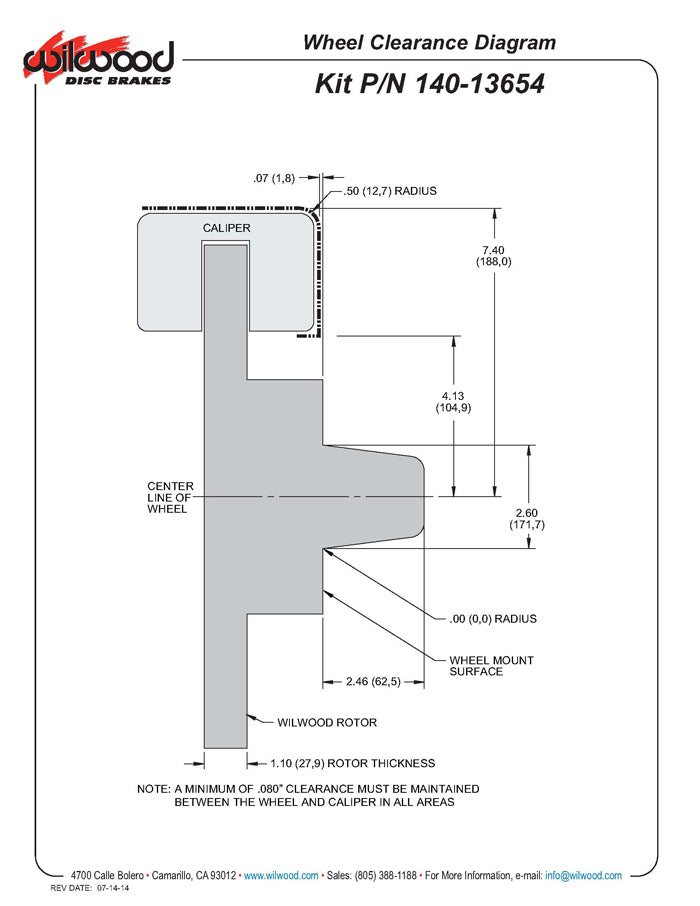

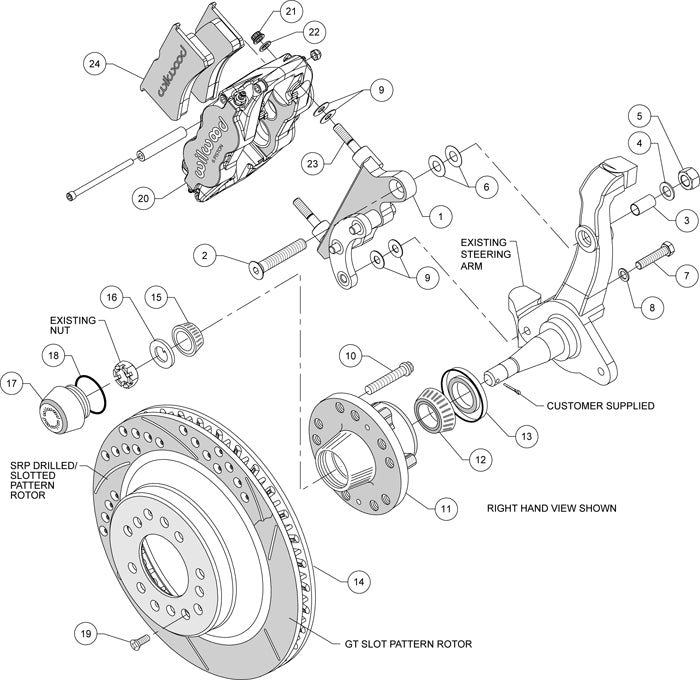

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD PREMIUM BIG BRAKE BOLT-ON FRONT HUB & 12.90" 1- PIECE DISC BRAKE KIT FOR:

    EDSEL:
    -1959-1960 CORSAIR, RANGER, AND VILLAGER*

    FORD:
    FORD 300:
    -1963 ALL*
    COUNTRY SEDAN:
    -1957-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    COUNTRY SQUIRE:
    -1957-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    COURIER SEDAN DELIVERY:
    -1957-1959 ALL*
    CUSTOM:
    -1957-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    CUSTOM 300:
    -1957-1960 ALL*
    CUSTOM 500:
    -1964-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    DEL RIO WAGON:
    -1957-1958 ALL*
    FAIRLANE:
    -1957-1961 ALL*
    GALAXIE:
    -1959-1965 ALL*
    -1966-1967 WITH DRUM BRAKE SPINDLES*
    GALAXIE 500:
    -1962-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    LTD:
    -1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    RANCH WAGON:
    -1957-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    RANCHERO:
    -1957-1959 ALL*
    -1967-1968 WITH DRUM BRAKE SPINDLES*
    SKYLINER:
    -1957-1959 ALL*
    STARLINER:
    -1960-1961 ALL*
    SUNLINER:
    -1957-1964 ALL*
    THUNDERBIRD:
    -1958-1960 ALL*
    TORINO:
    -1968 WITH DRUM BRAKE SPINDLES*
    VICTORIA:
    -1957-1964 ALL*

    MERCURY:

    BREEZEWAY:
    -1965-1966 WITH DRUM BRAKE SPINDLES*
    BROUGHAM:
    -1967 WITH DRUM BRAKE SPINDLES*
    COLONY PARK:
    -1961-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    COMMUTER:
    -1961-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    COUNTRY CRUISER:
    -1963 ALL*
    CYCLONE:
    -1961-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    MARAUDER:
    -1963-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    MARQUIS:
    -1967-1968 WITH DRUM BRAKE SPINDLES*
    METEOR:
    -1961 ALL*
    MONTCLAIR:
    -1961-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    MONTEGO:
    -1968 WITH DRUM BRAKE SPINDLES*
    MONTEREY:
    -1961-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    PARK LANE:
    -1964-1965 ALL*
    -1966-1968 WITH DRUM BRAKE SPINDLES*
    S-55:
    -1966-1967 WITH DRUM BRAKE SPINDLES*
    VILLAGER:
    -1962-1965 ALL*
    -1966-1967 WITH DRUM BRAKE SPINDLES*
    VOYAGER:
    -1966-1967 WITH DRUM BRAKE SPINDLES*

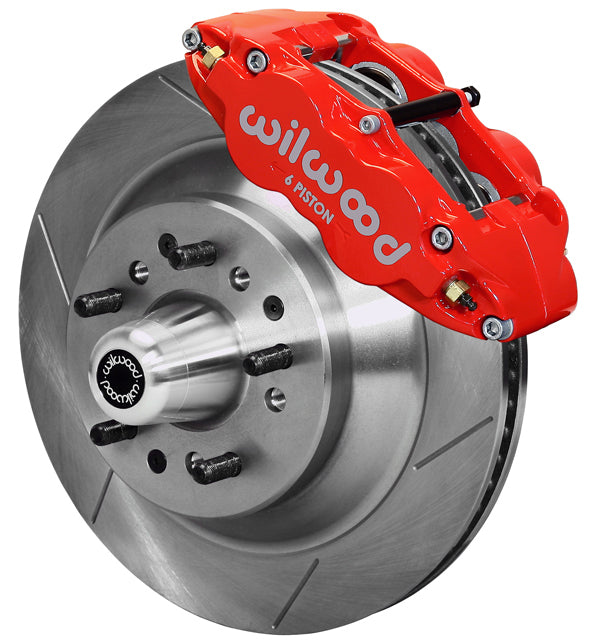

  • FEATURING STANDARD ROTORS AND RED CALIPERS

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • FORGED NARROW SUPERLITE 6 PISTON CALIPERS WITH 12.90" DIAMETER, 1 PIECE ROTOR AND HATS KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE IN THIS GROUP OF KITS ENGINEERED 1960 TO 1968 FORD & MERCURY FULL SIZE VEHICLES.

  • BUILT EXCLUSIVELY FOR 17" AND LARGER WHEELS, FNSL6 KITS ENHANCE TIRE AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE DUAL-PURPOSE STREET AND TRACK MACHINES. THESE KITS ARE GUARANTEED TO CATCH THE EYE OF THE MOST DISCRIMINATING ENTHUSIAST WHILE PROVIDING OPTIMIZED BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

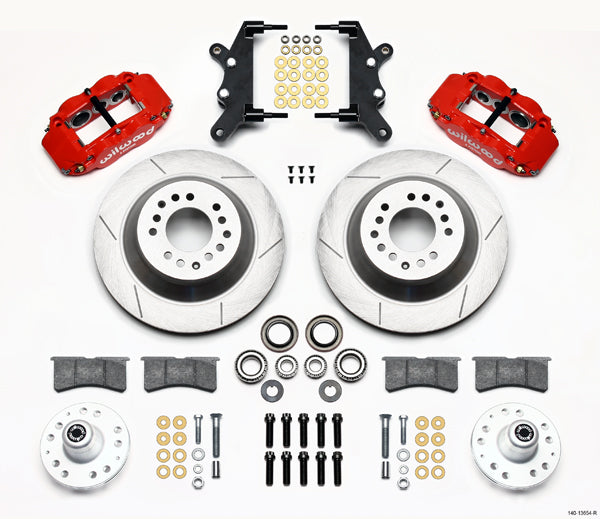

  • KIT INCLUDES:
    *STANDARD, 1.10" THICK X 12.90" O.D. ROTORS,
    *FORGED NARROW SUPERLITE 6 PISTON RADIAL CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 SMART COMPOUND BRAKE PADS,
    *BRAKE HUBS, RACES, SEALS, BOLTS, WASHERS, DUST CAPS, &
    *ALL BOLTS, SHIMS, WASHERS, SPACERS, AND NUTS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 61 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
    • Bolt-On Disc Brake Kits > Ford Kits > Galaxie Front Kits, 1960-1968
